Diagram Set 23 (Fuel and Emissions (2WD))

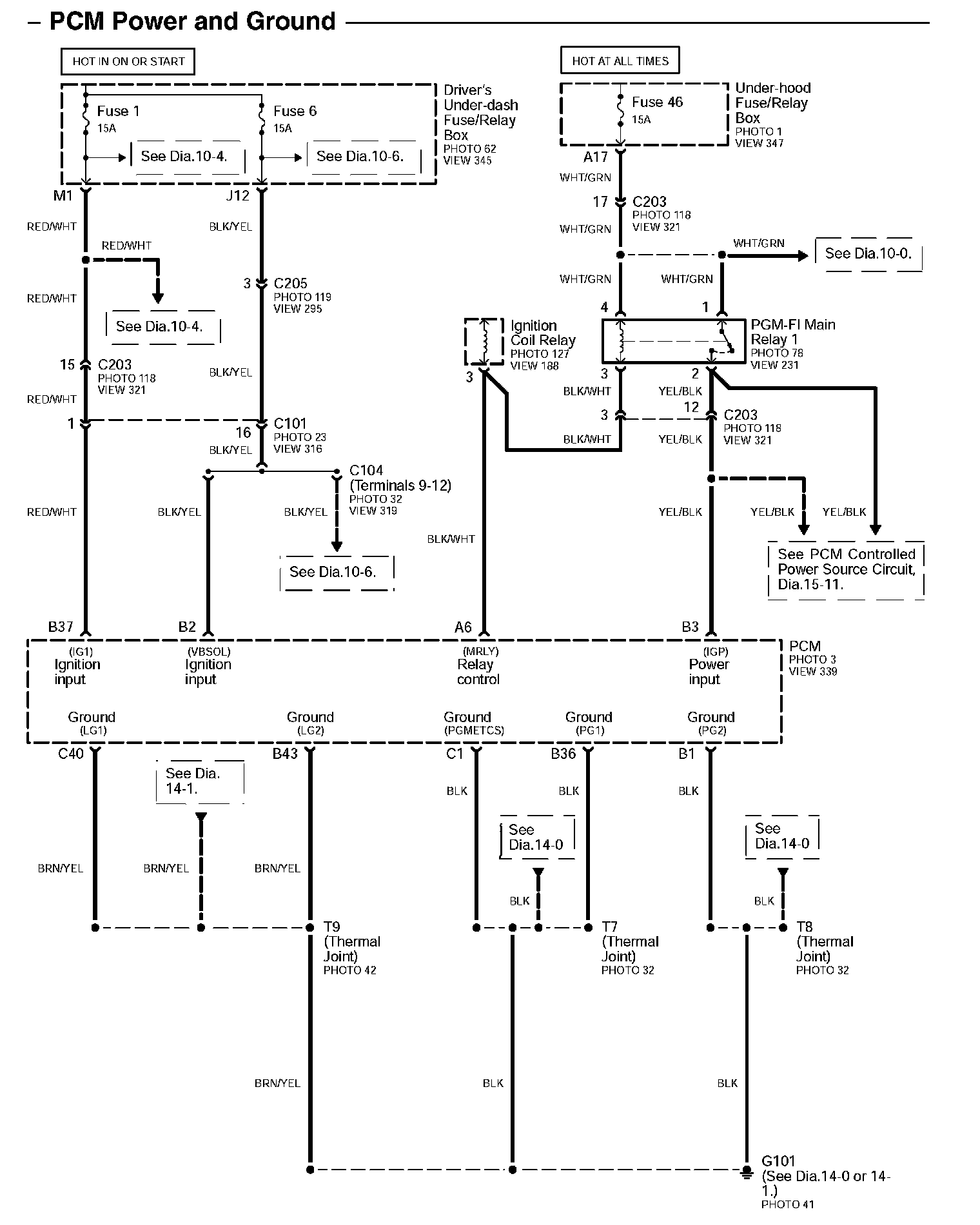

Diagram 23-0:

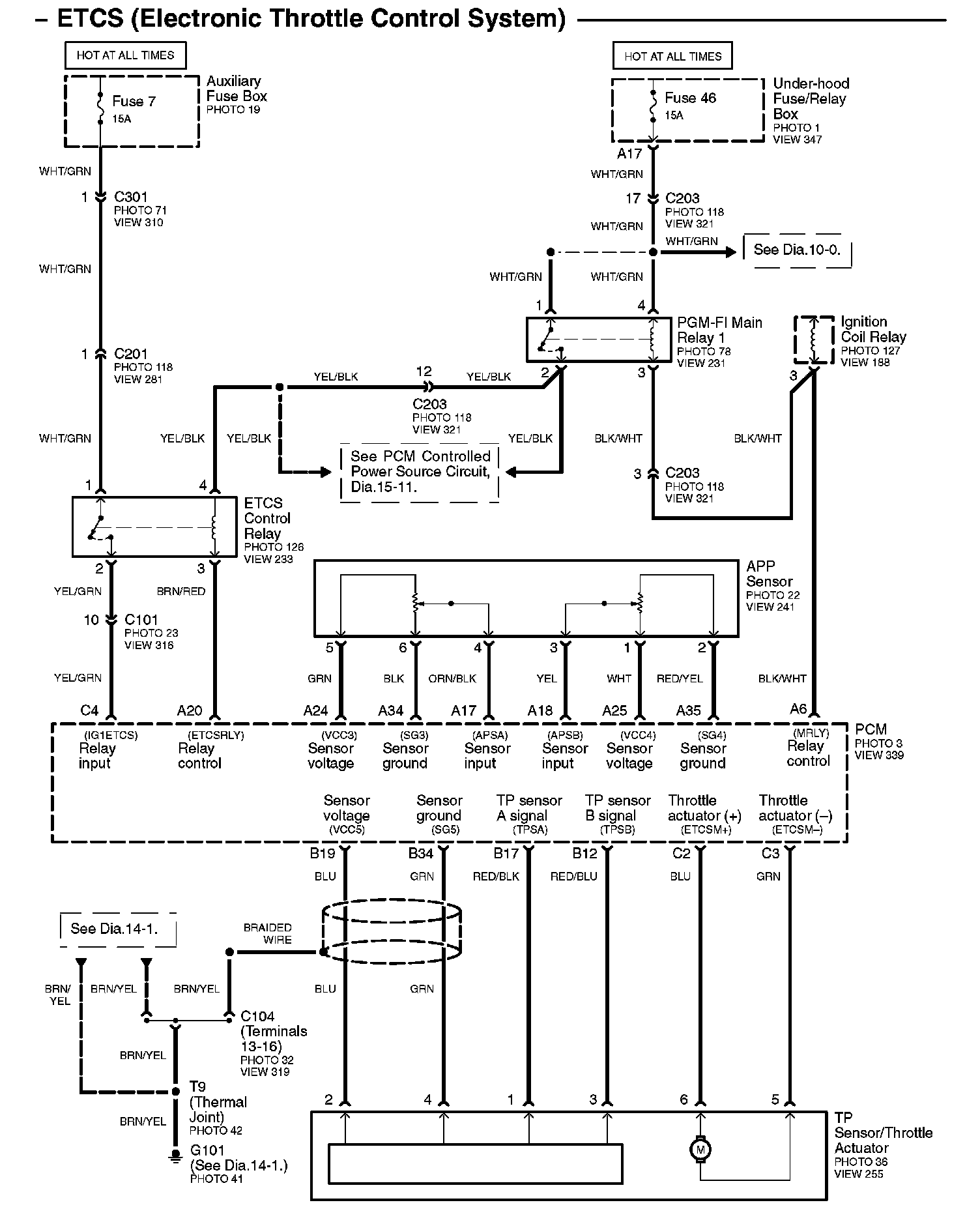

Diagram 23-1:

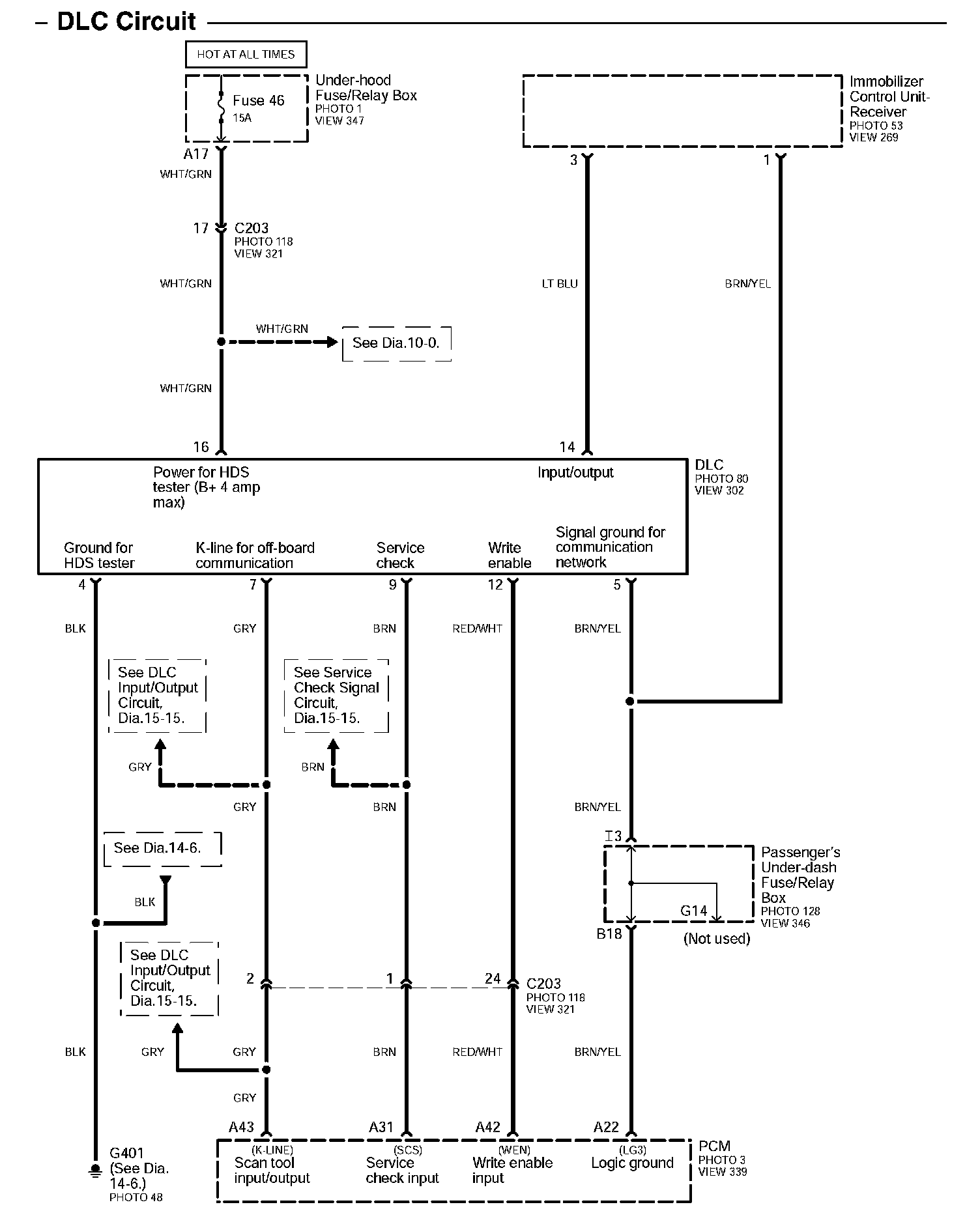

Diagram 23-2:

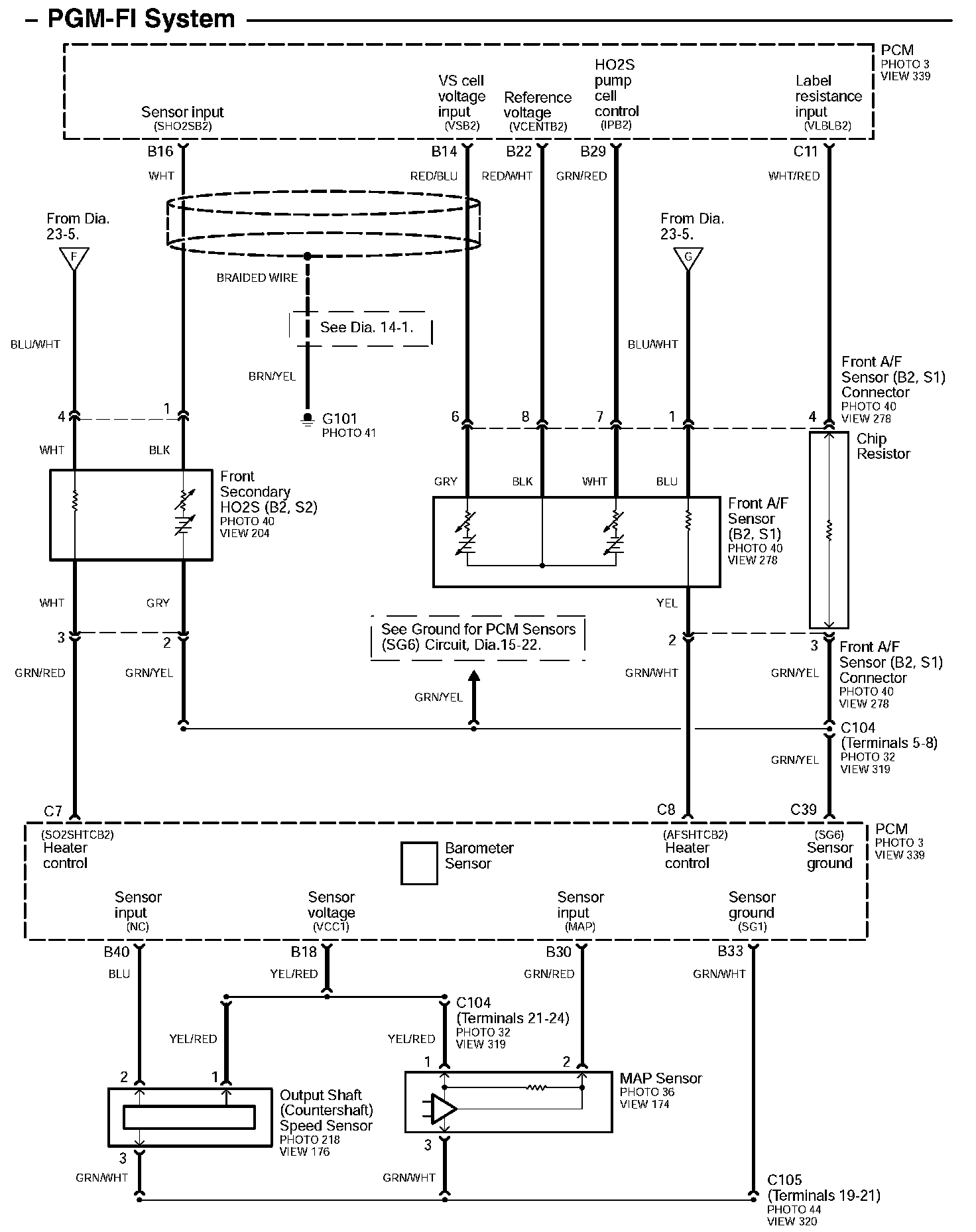

Diagram 23-3:

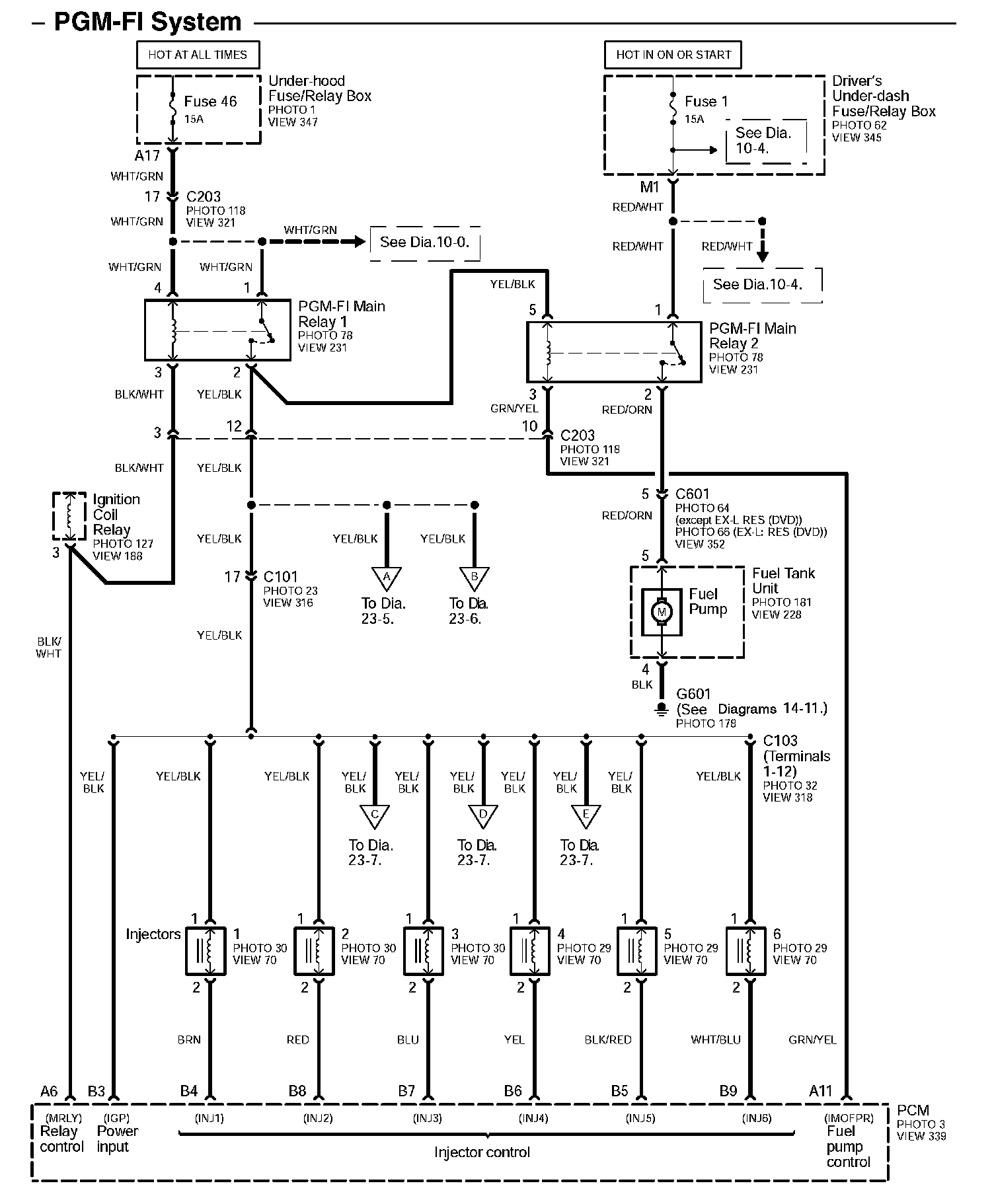

Diagram 23-4:

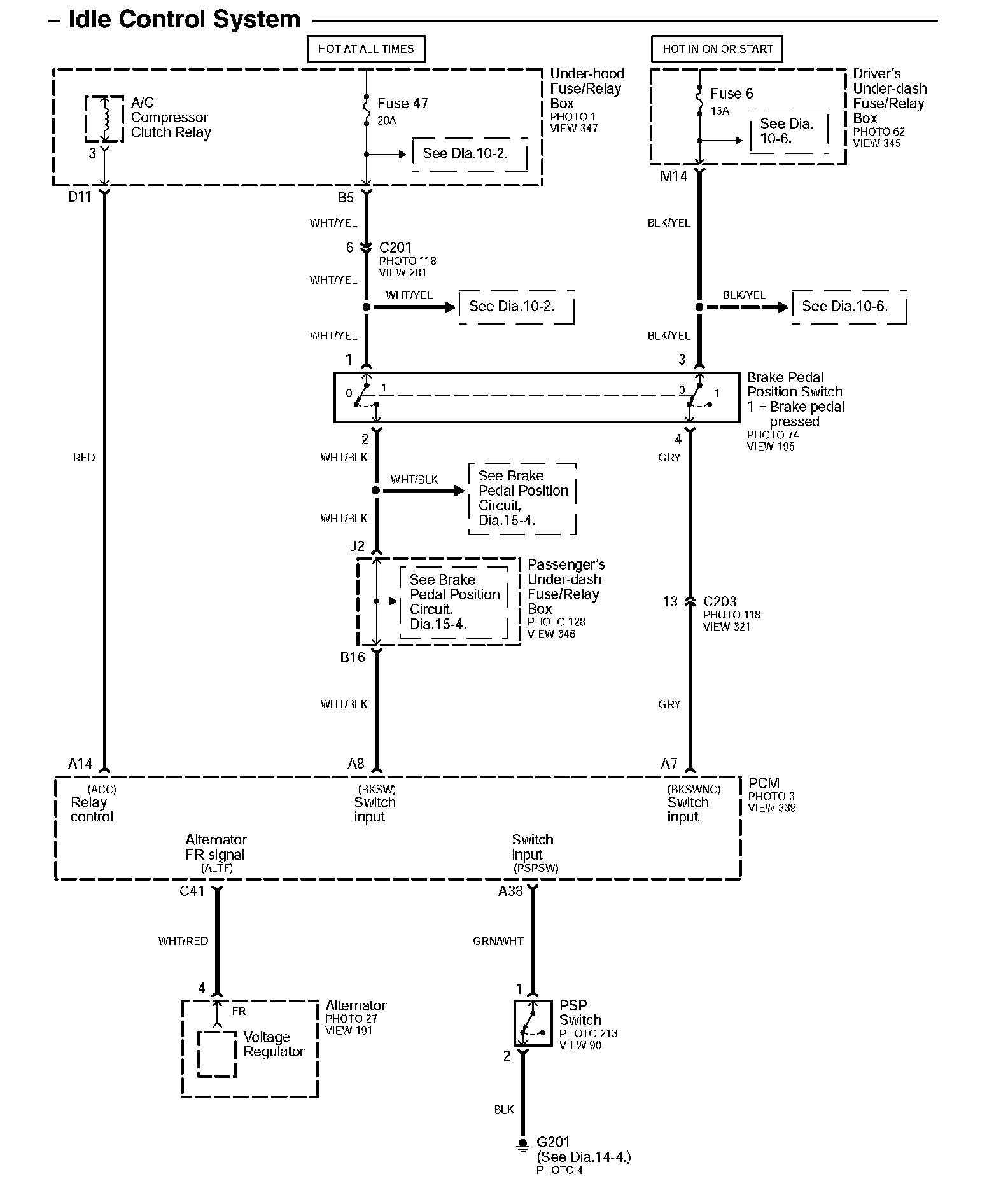

Diagram 23-5:

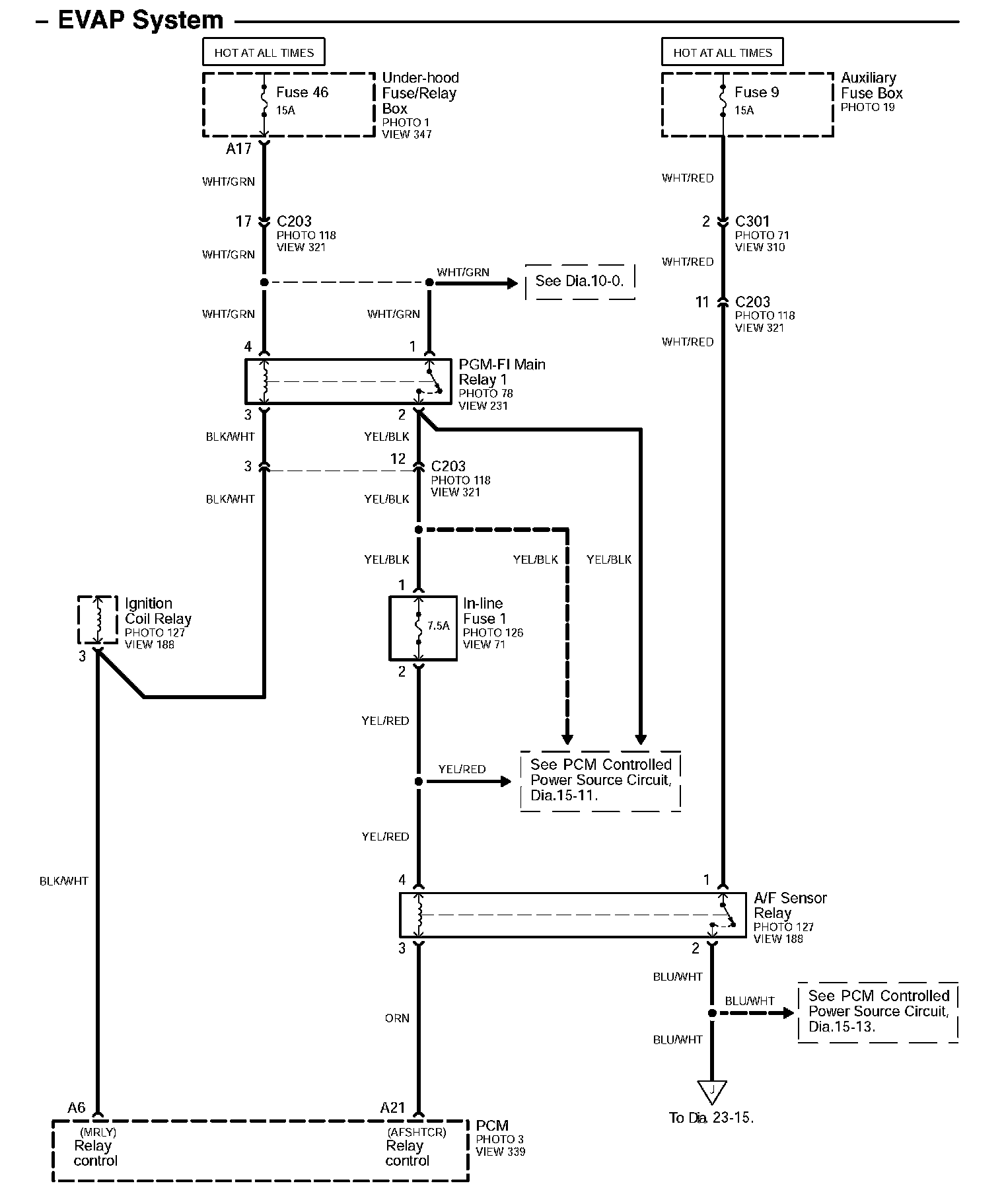

Diagram 23-6:

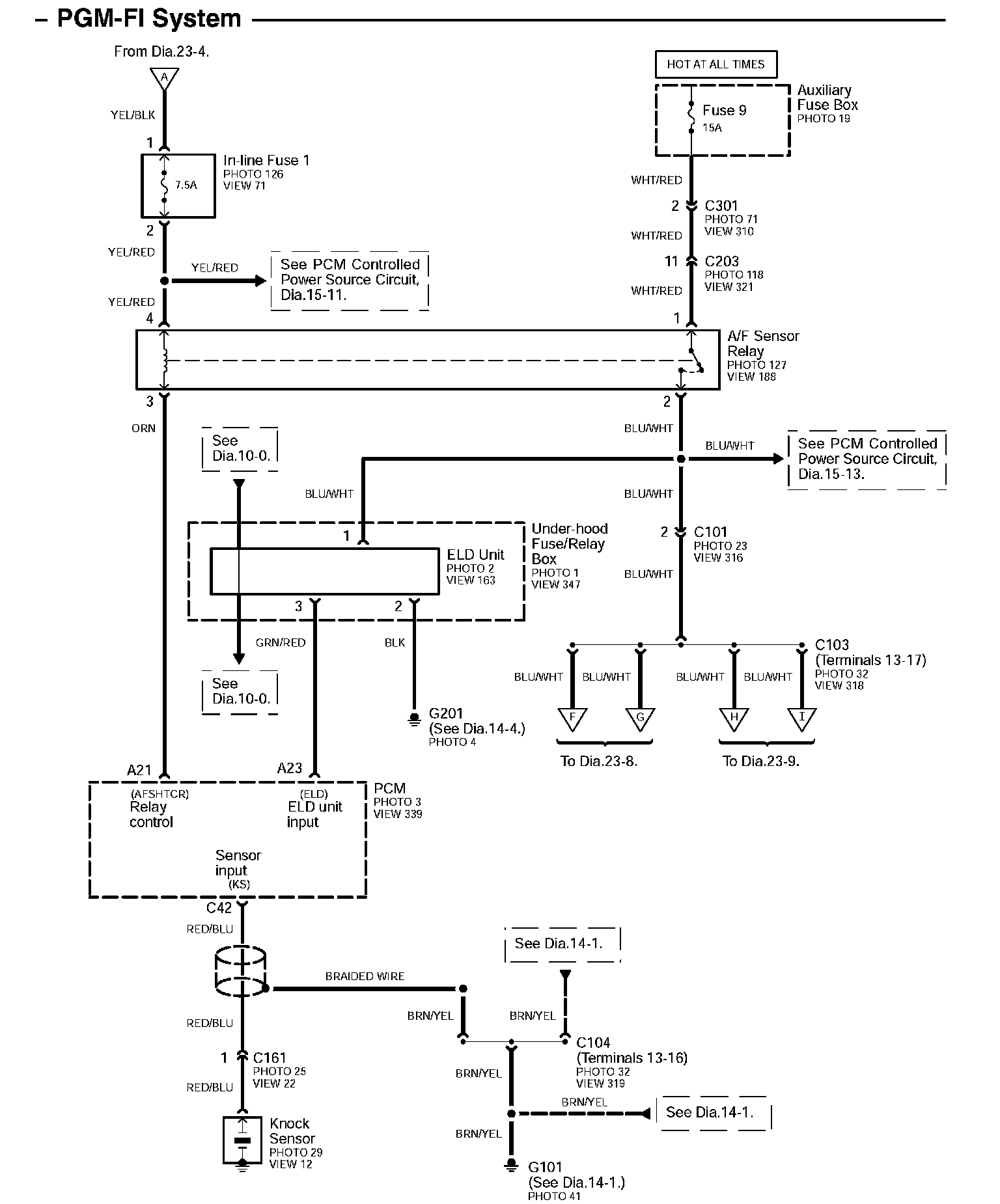

Diagram 23-7:

Diagram 23-8:

Diagram 23-9:

Diagram 23-10:

Diagram 23-11:

Diagram 23-12:

Diagram 23-13:

Diagram 23-14:

Diagram 23-15:

Diagram 23-16:

Diagram 23-17:

Diagram 23-18:
