Part 2 of 2

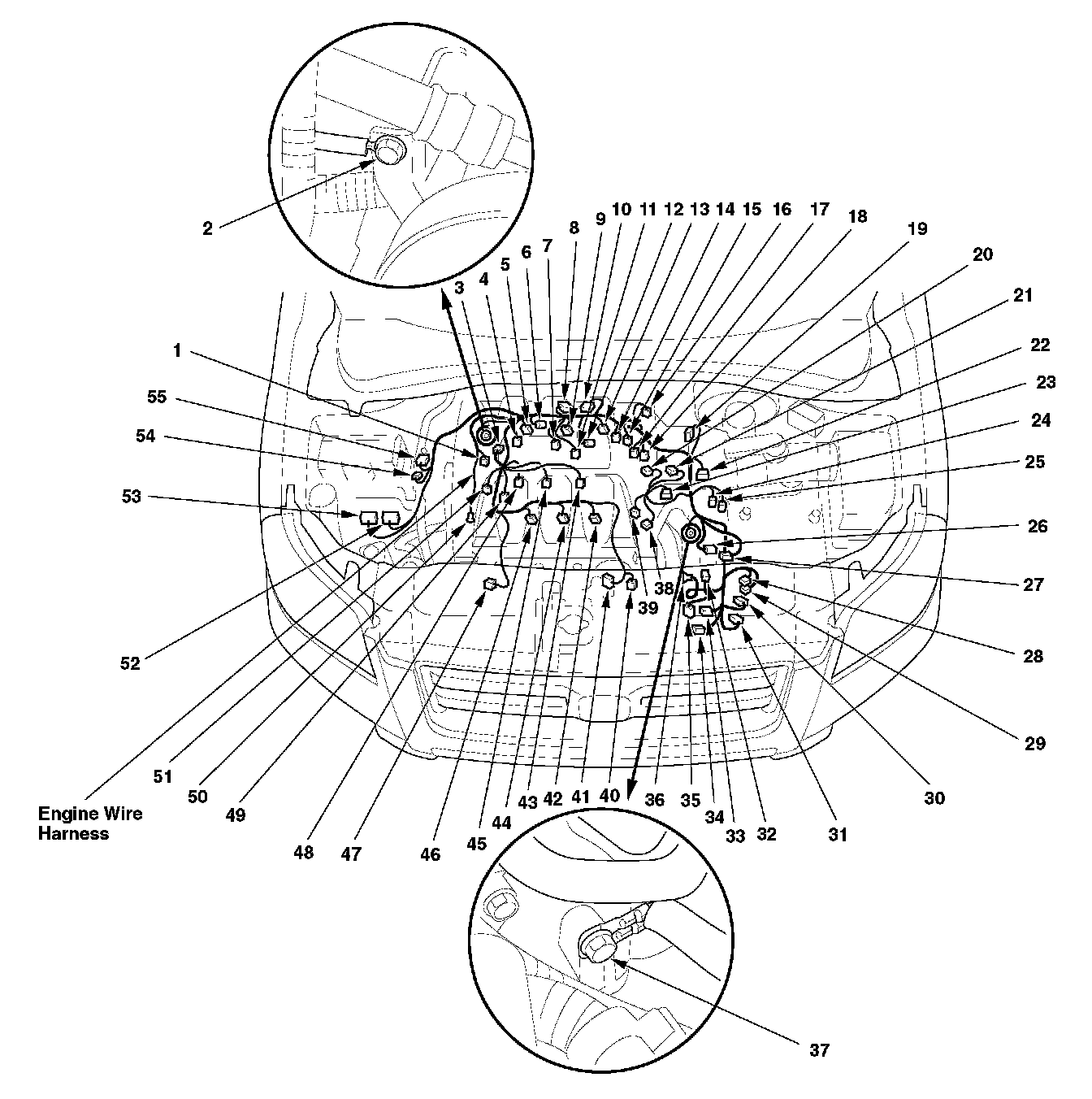

Harness Location View:

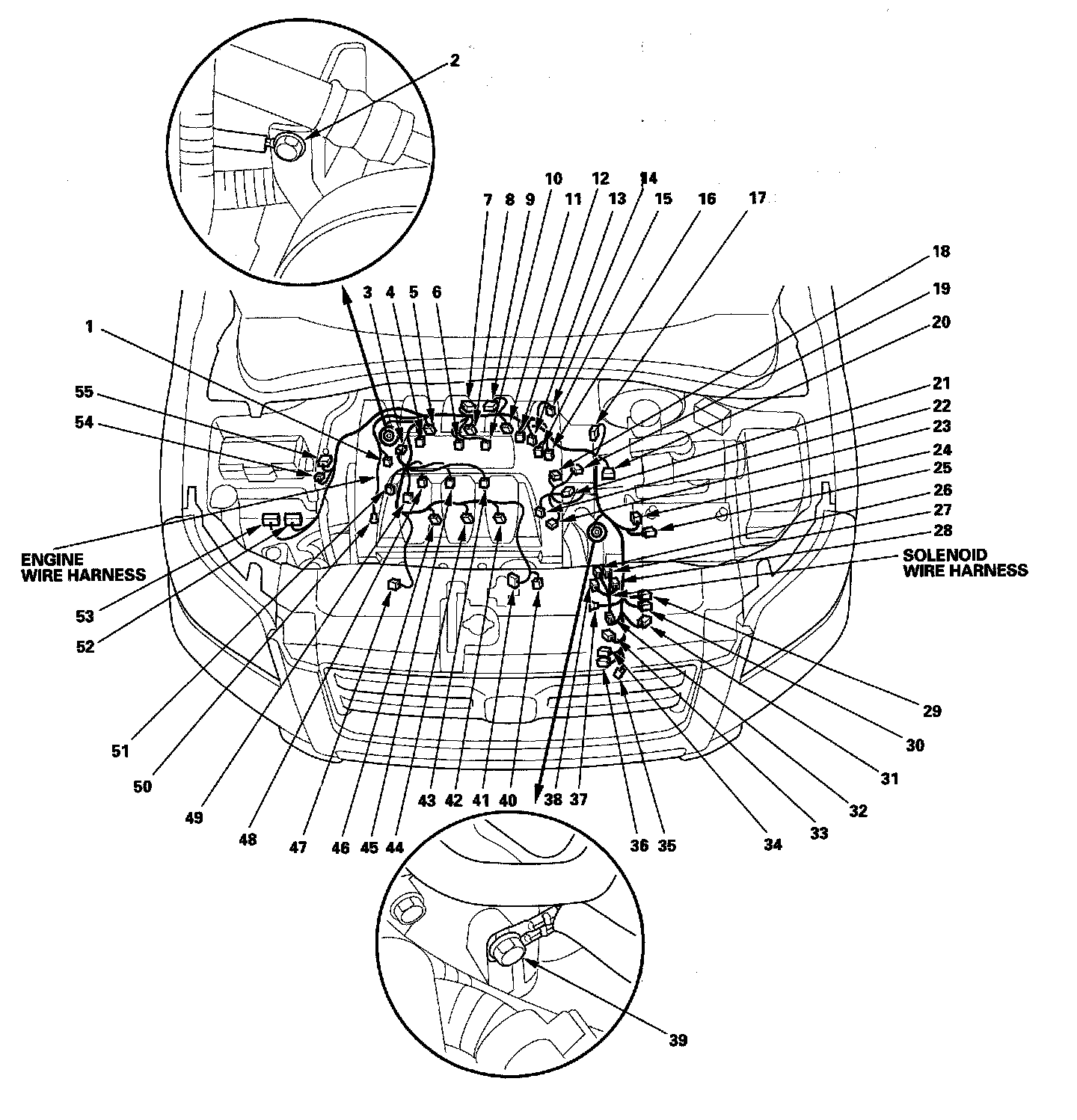

Harness Location View:

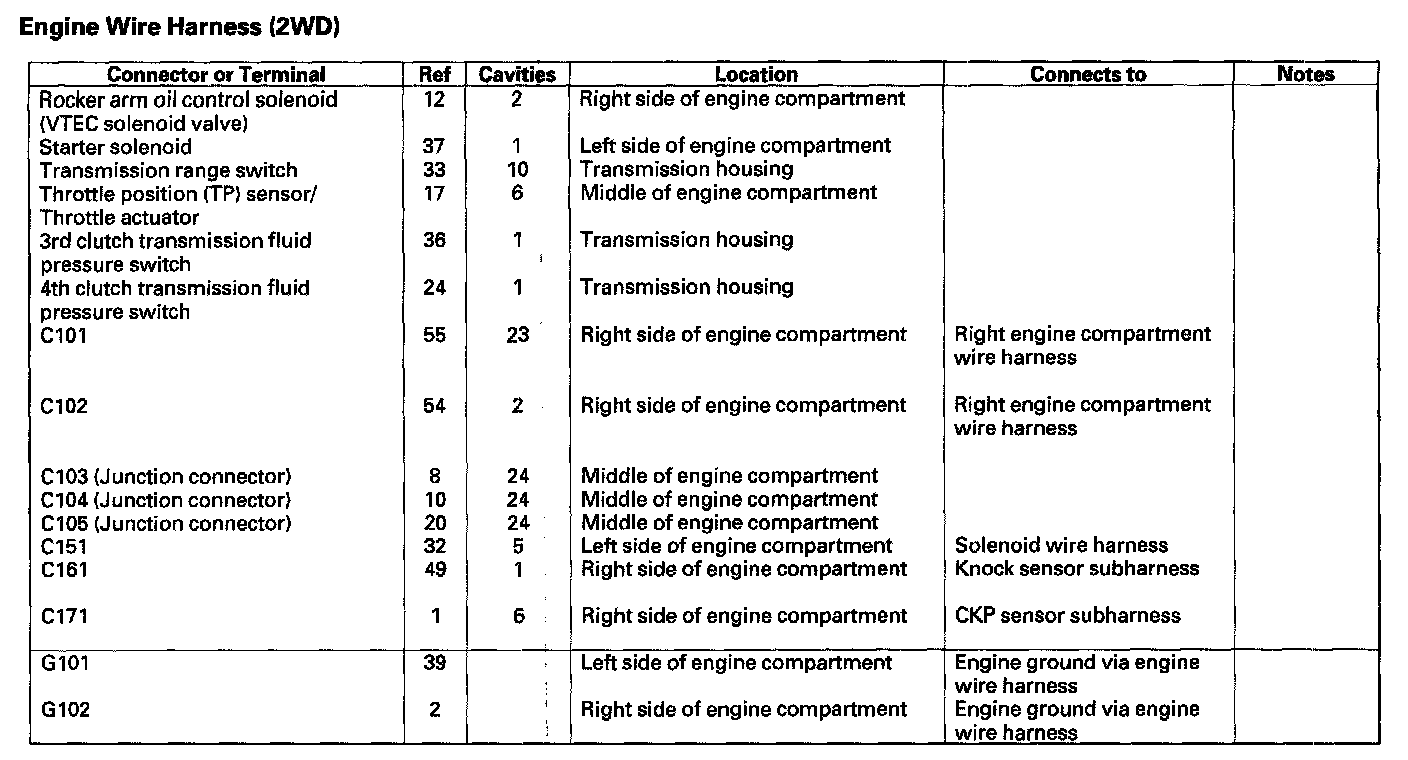

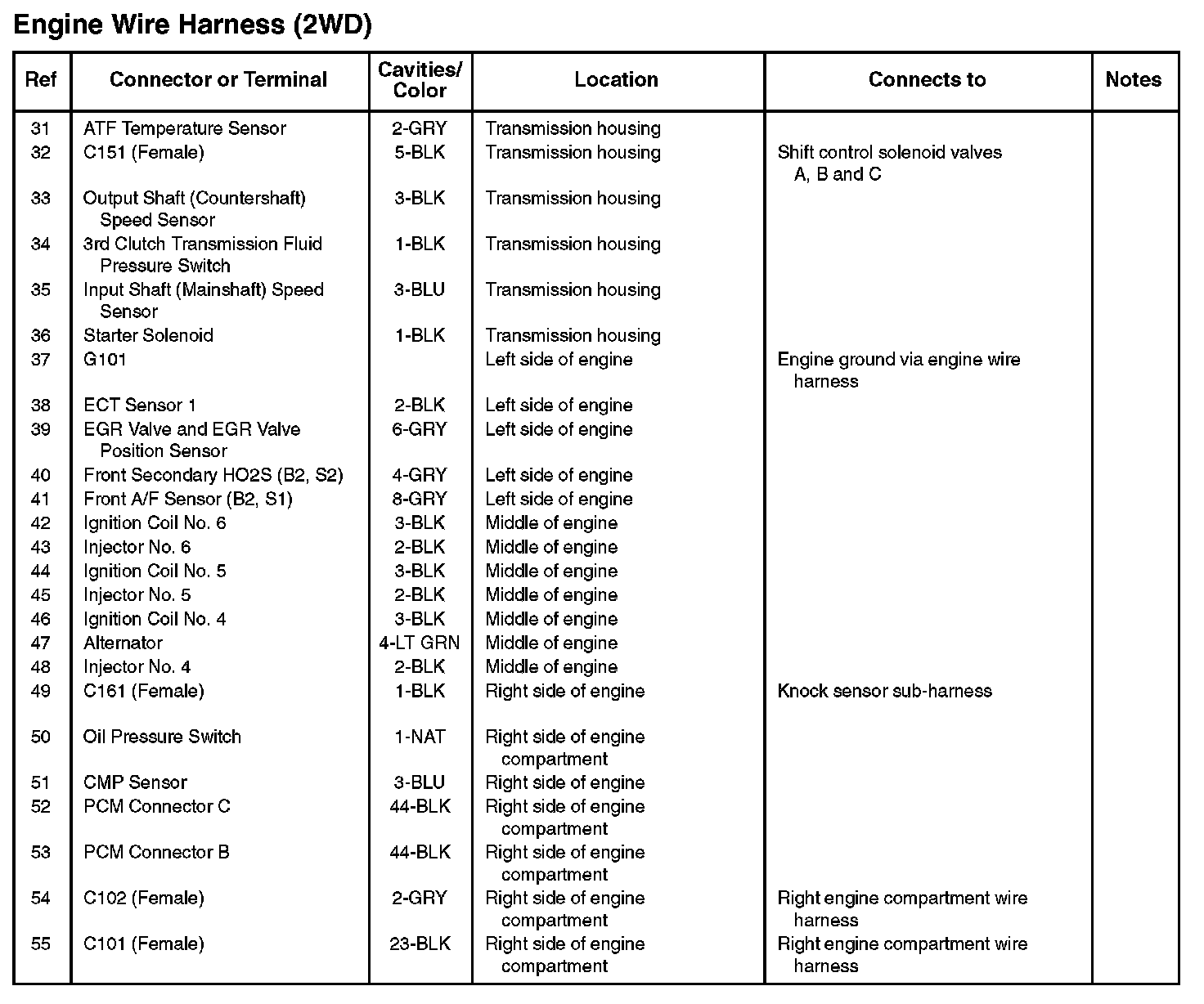

Engine Wire Harness:



Engine Wire Harness:
