Electrical Diagrams

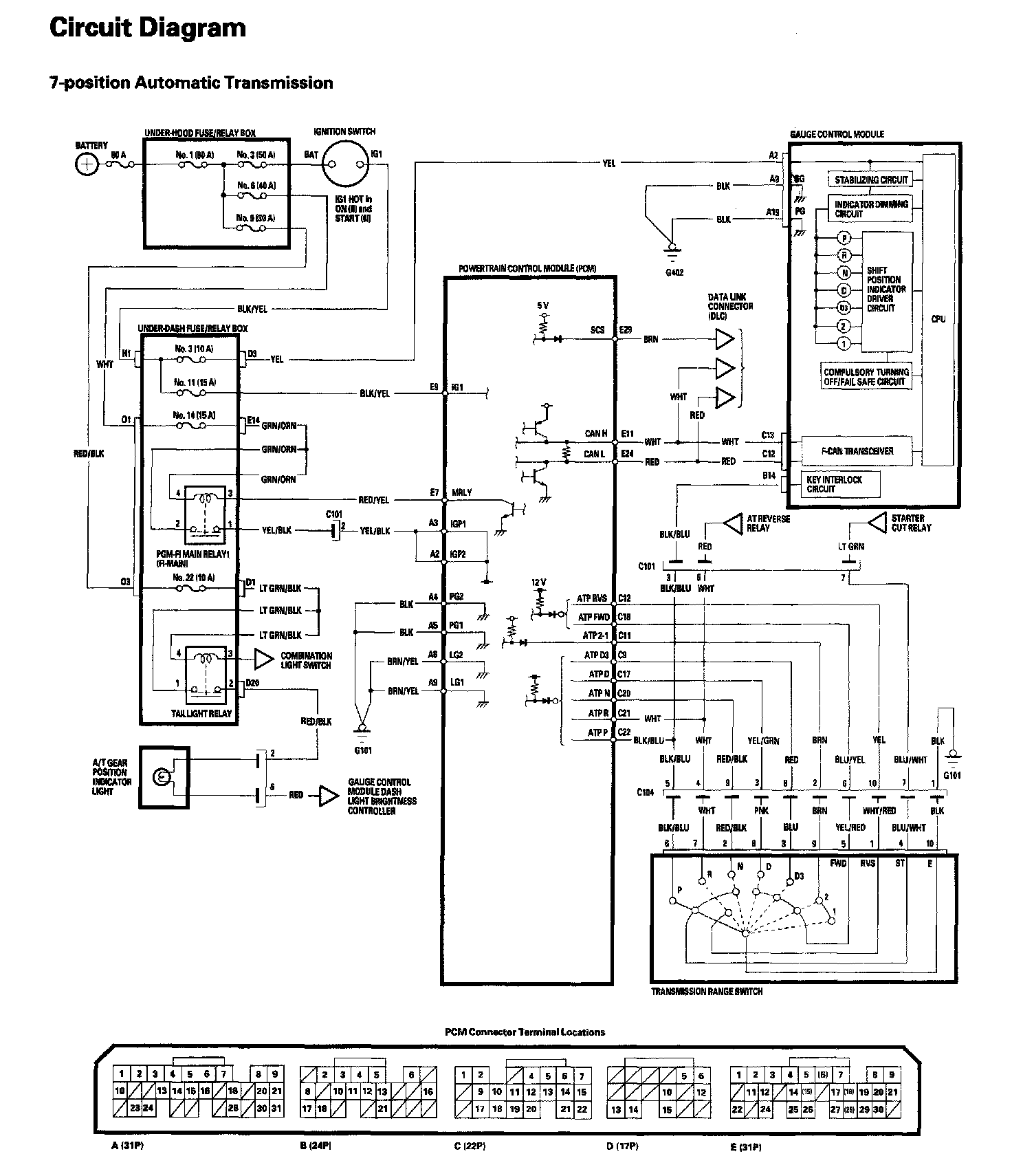

A/T Gear Position Indicator Circuit Diagram (7-position Automatic Transmission):

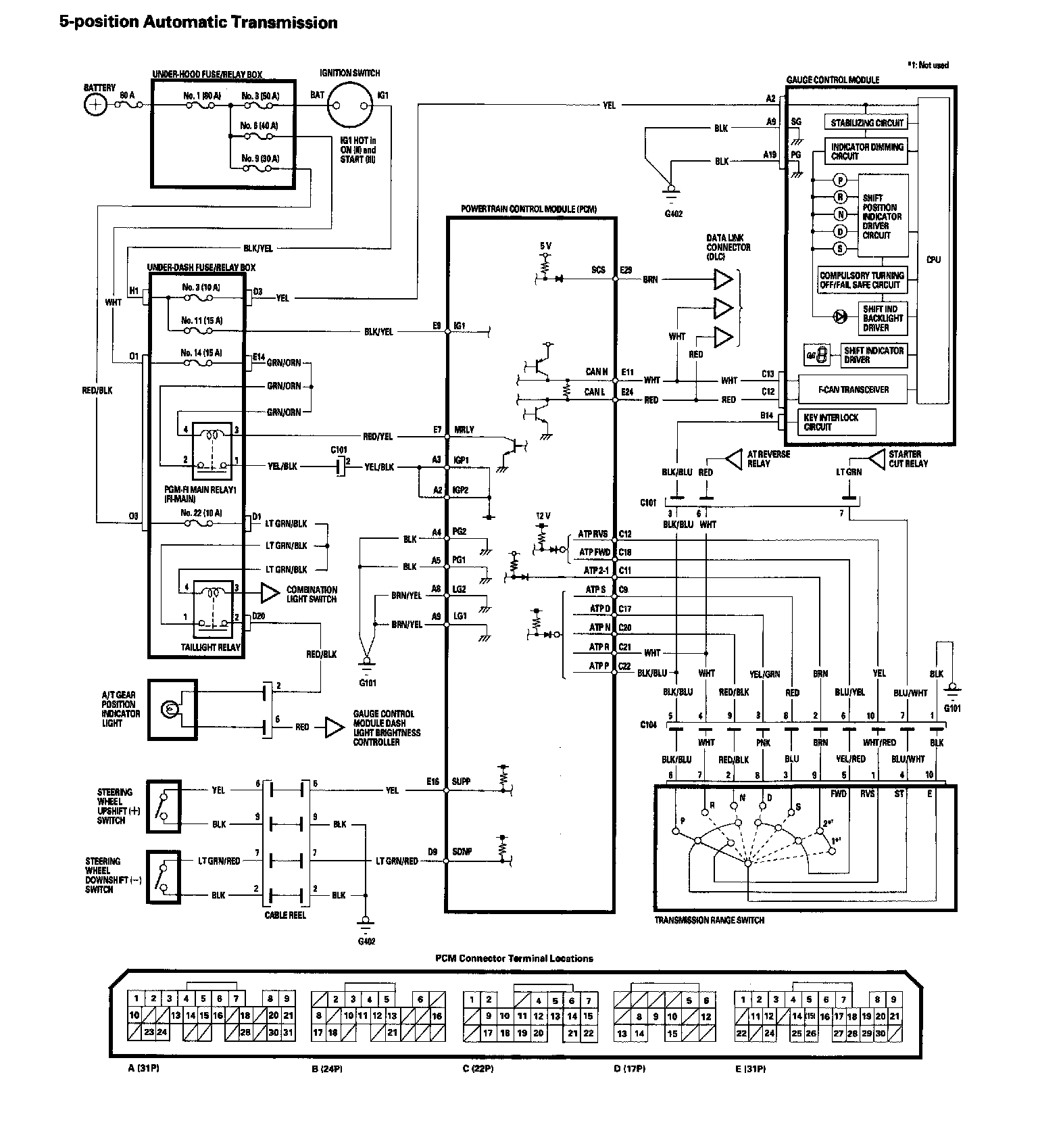

A/T Gear Position Indicator Circuit Diagram (5-position Automatic Transmission):
