Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector ID By Location on Harness >> Left Rear Door Wire Harness

Left Rear Door Wire Harness

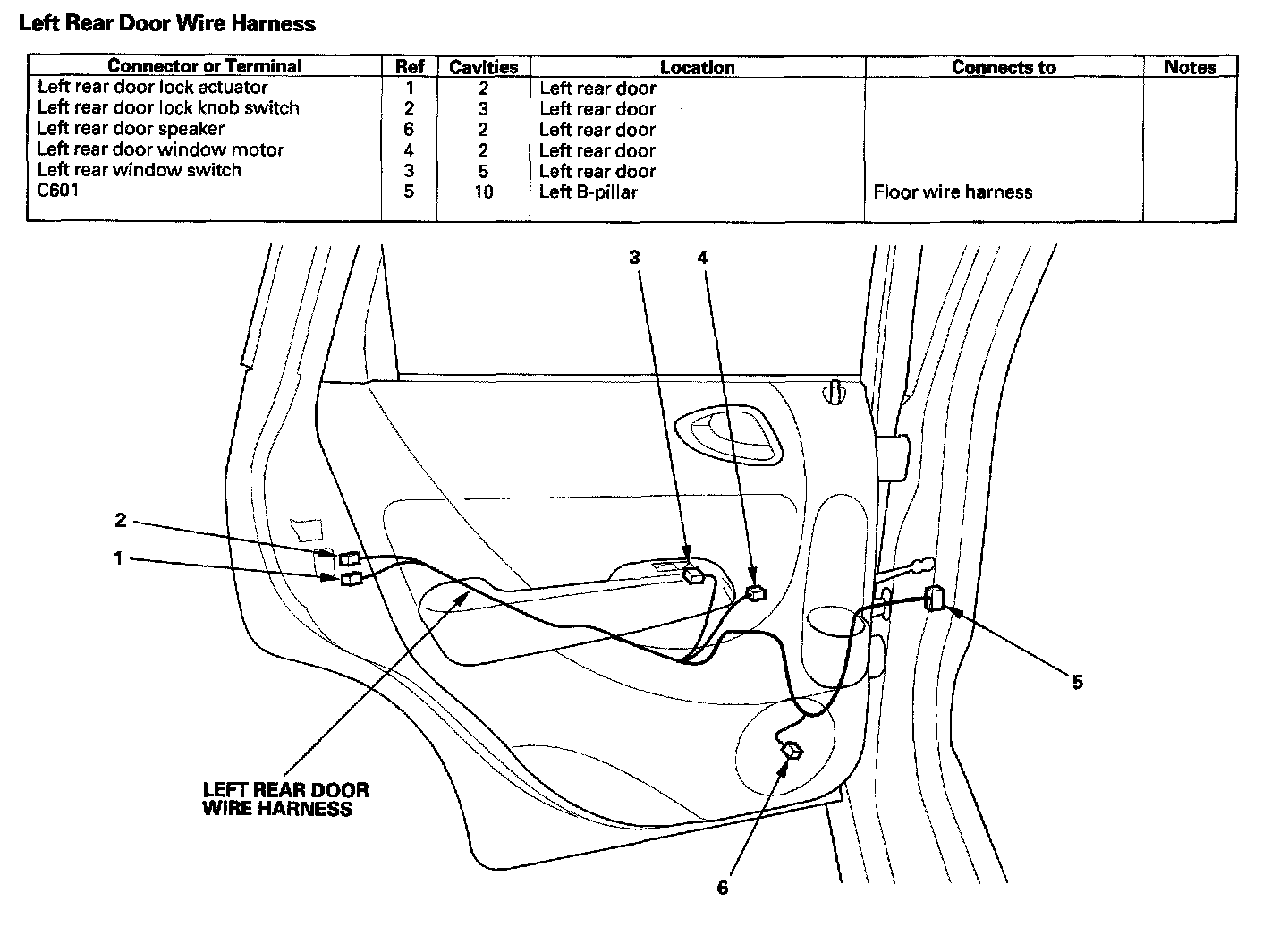

Left Rear Door Wire Harness:

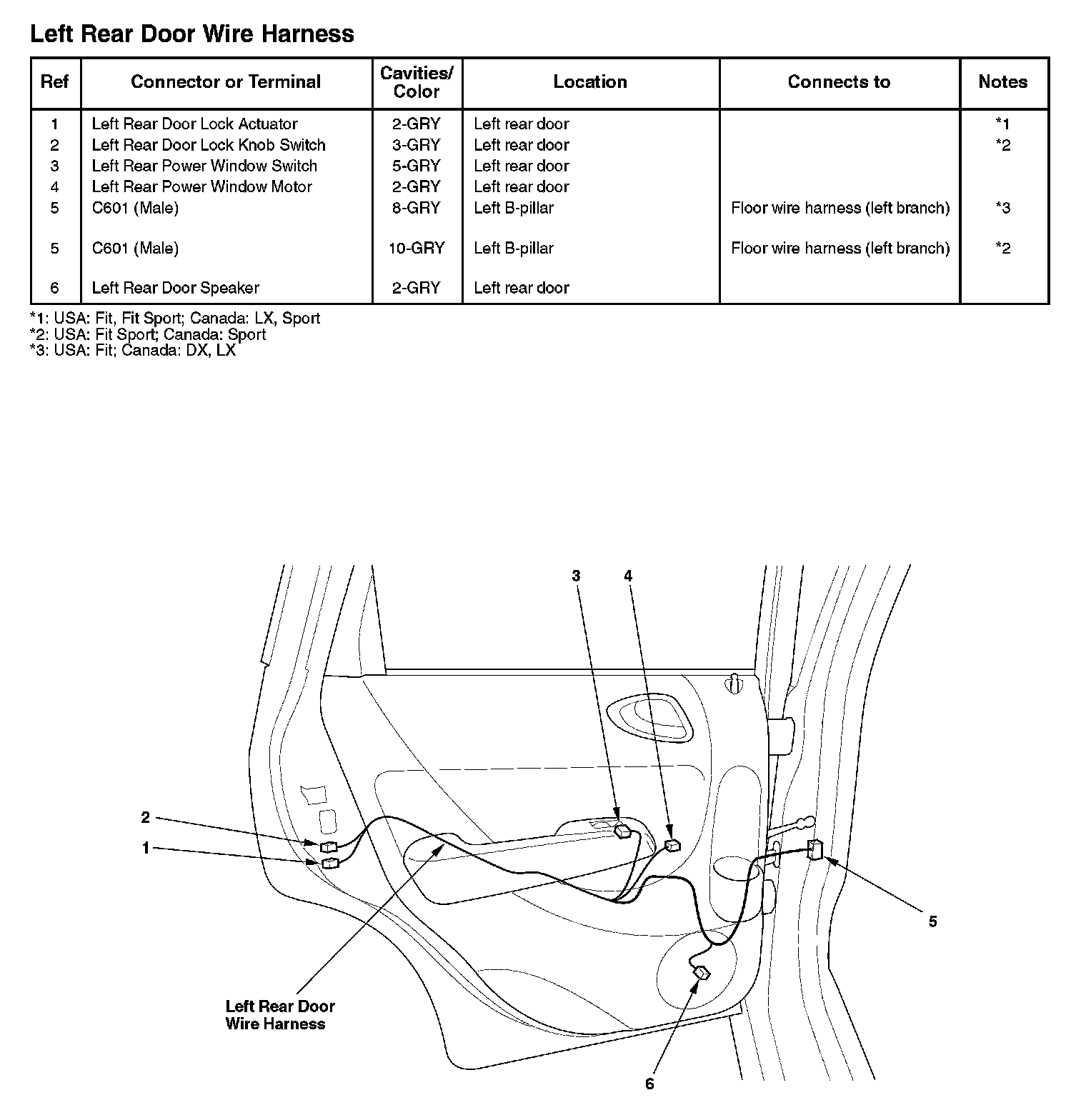

Left Rear Door Wire Harness:
