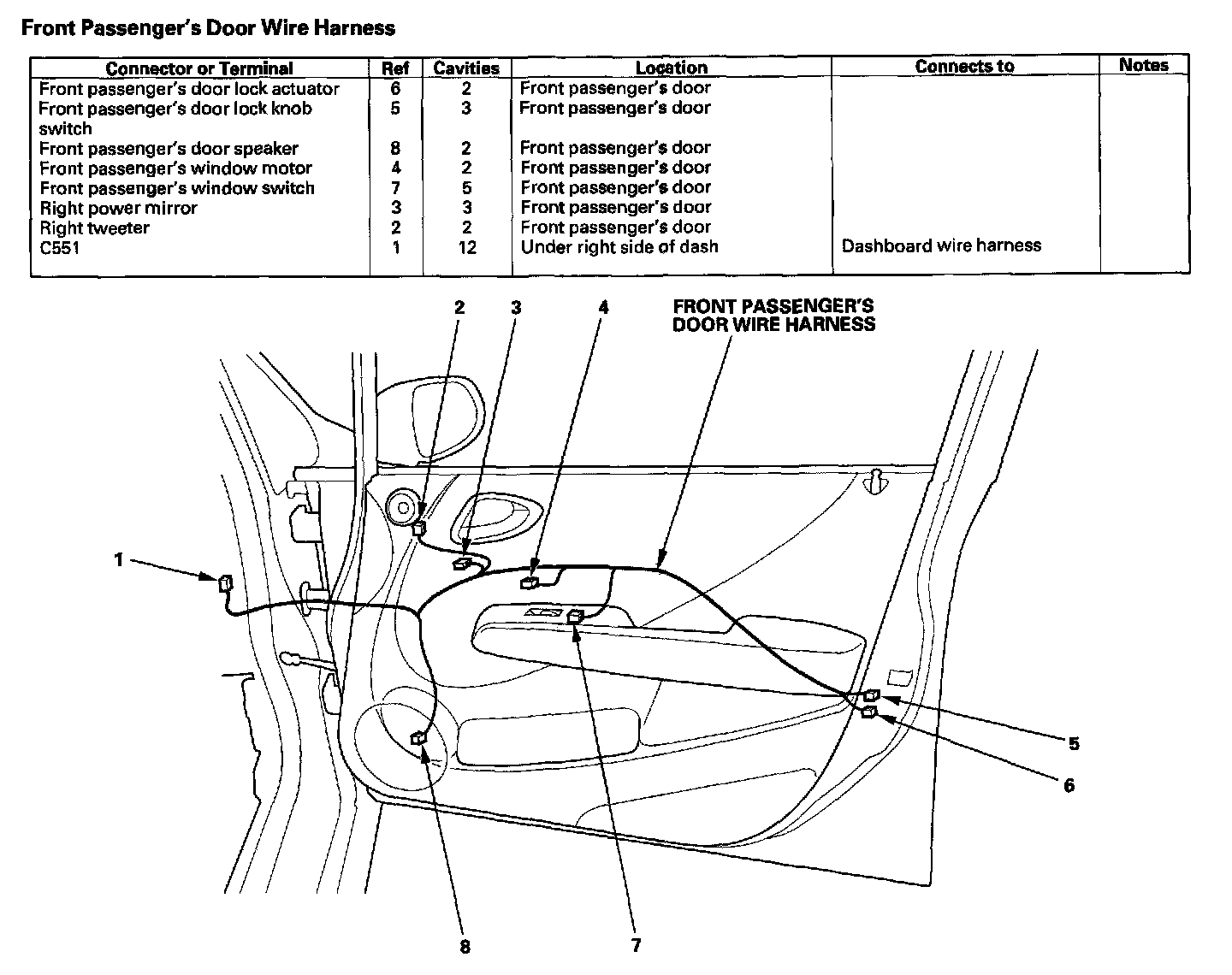

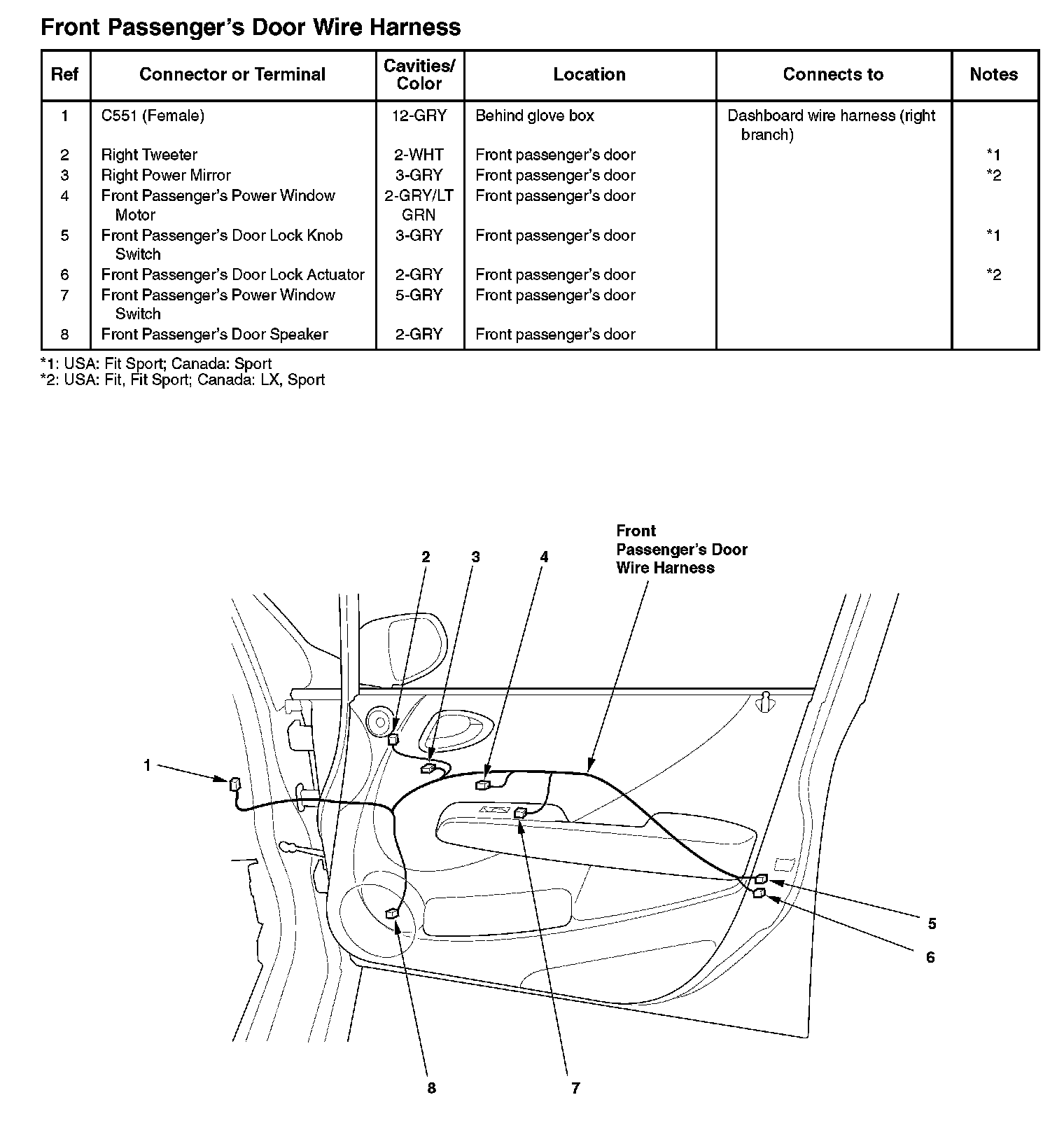

Front Passenger's Door Wire Harness

Front Passenger's Door Wire Harness:



Front Passenger's Door Wire Harness:
