Part 2 of 2

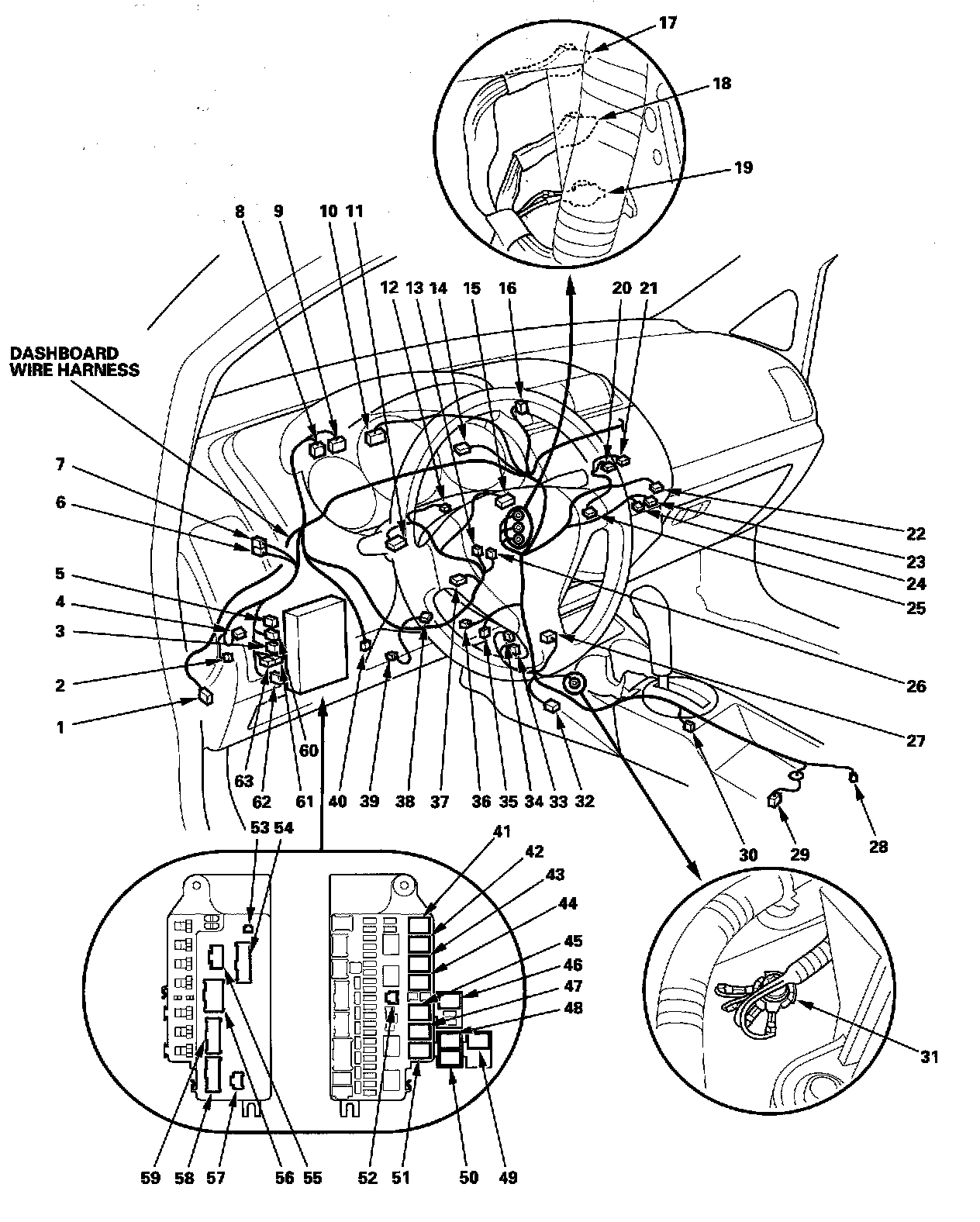

Harness Location View:

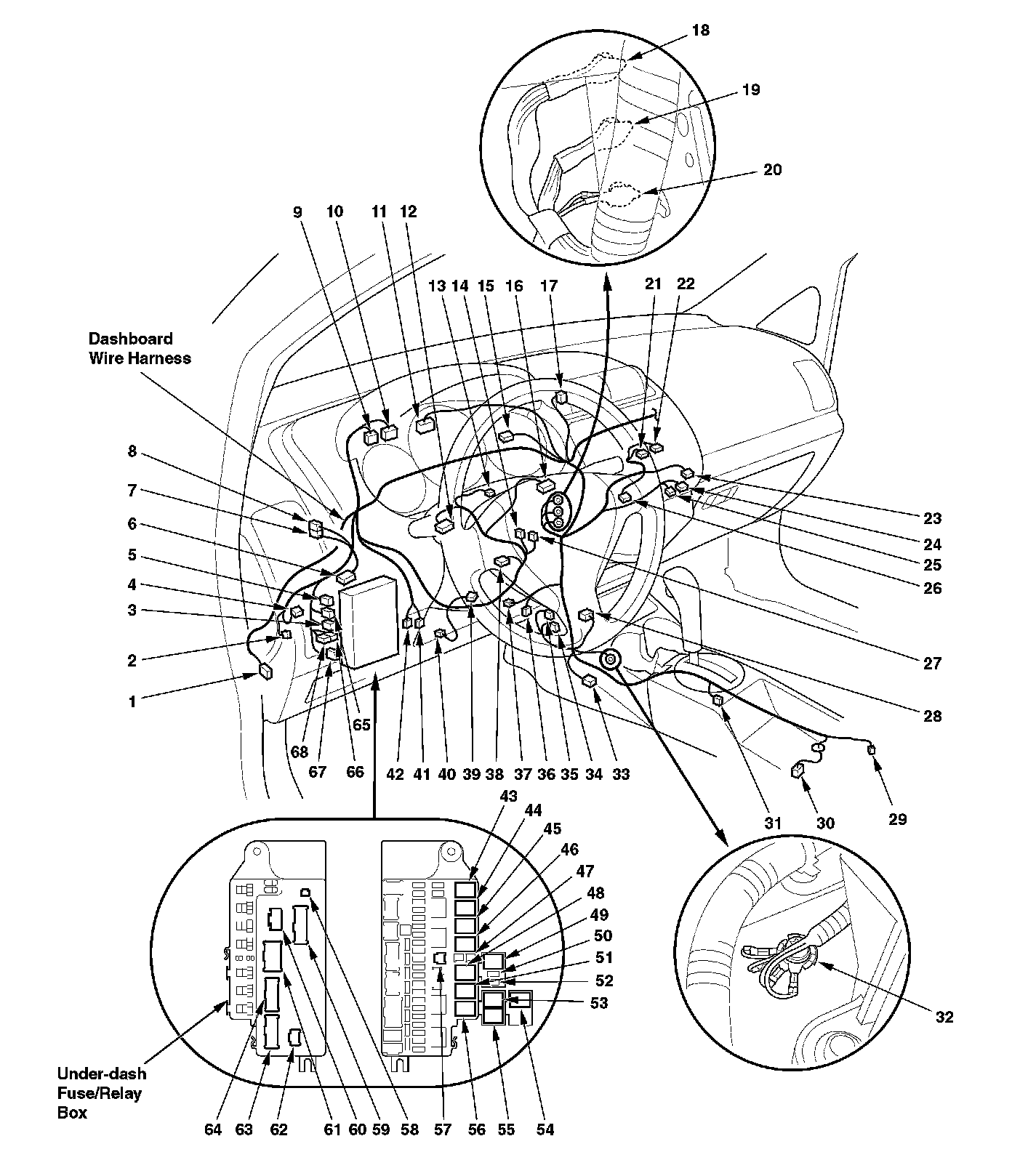

Harness Location View:

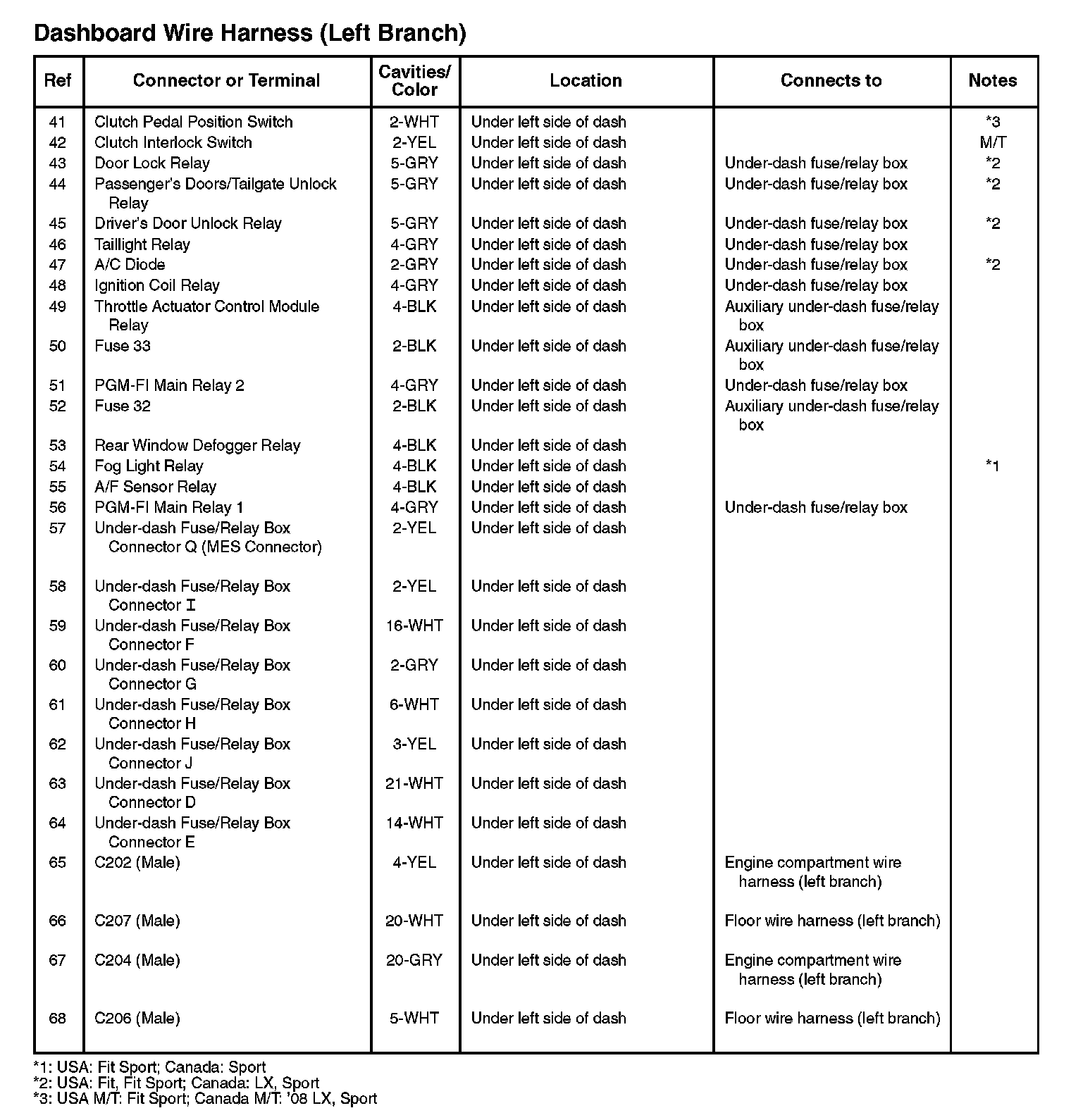

Dashboard Wire Harness (Left Branch):

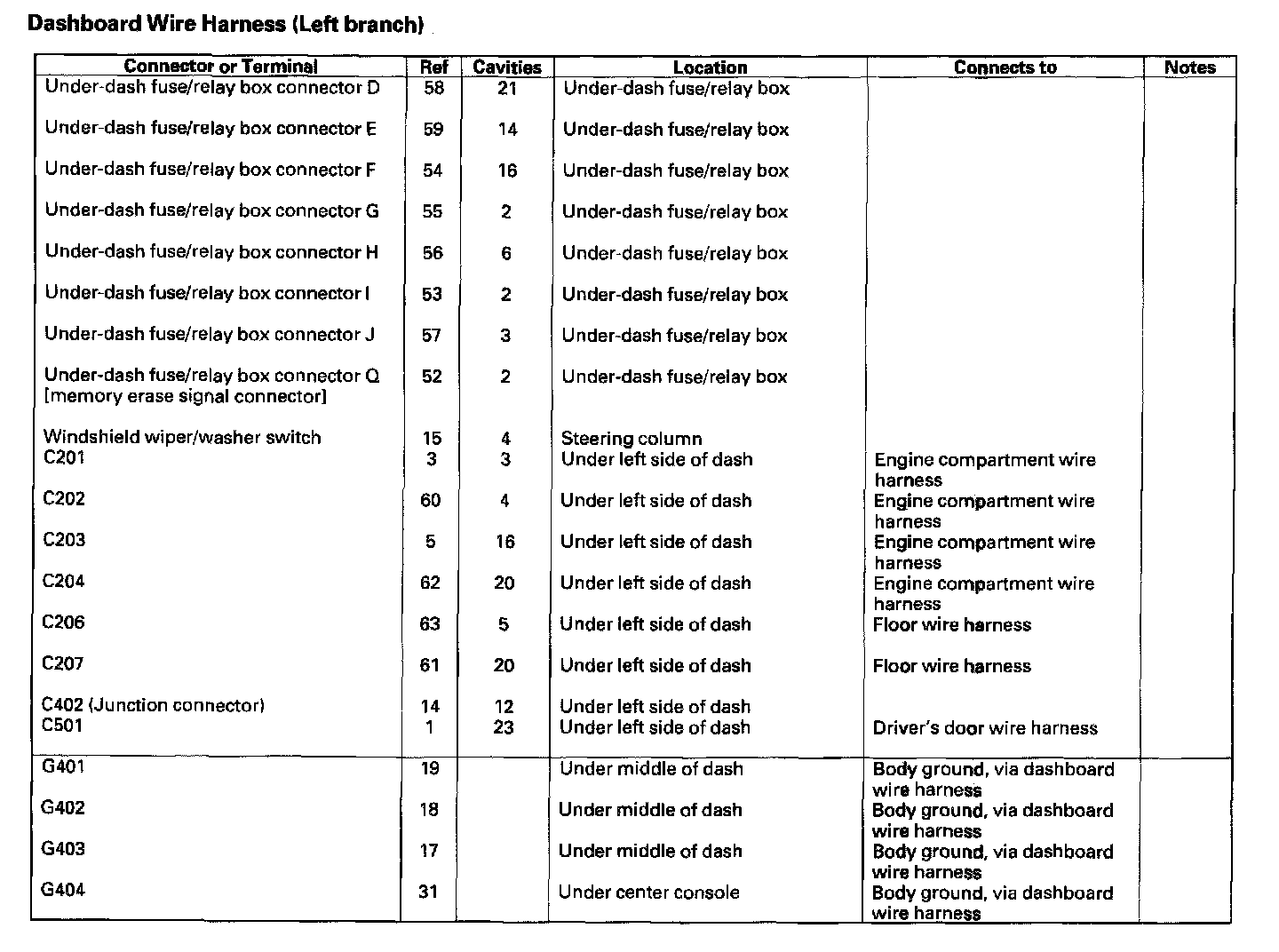

Dashboard Wire Harness (Left Branch):
