Rocker Arm Assembly Installation

Rocker Arm Assembly Installation

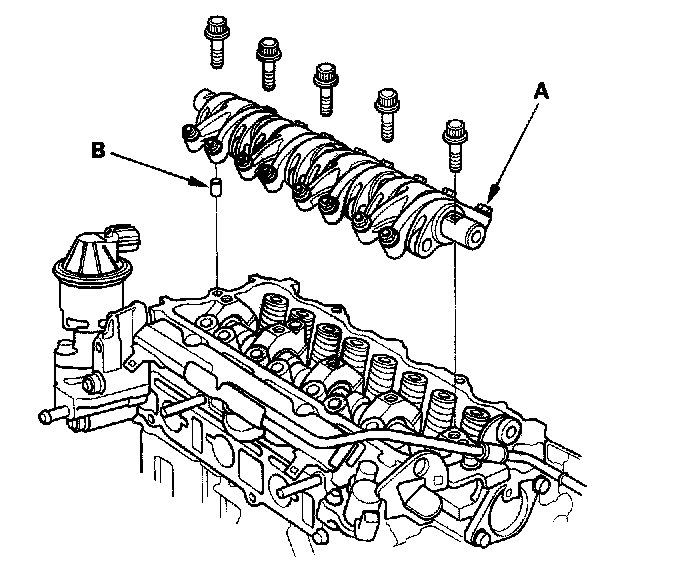

1. Install the rocker arm assembly (A) with dowel pin (B).

NOTE: When reassembling the rocker arms, install the rocker arm from cam chain side on the rocker shaft.





2. Tighten each bolts two turns at a time in sequence below.





3. Remove the rubber bands (A) from the intake rocker arms.
4. Adjust the valve clearance.
5. Install the cylinder head cover.
