Overhaul

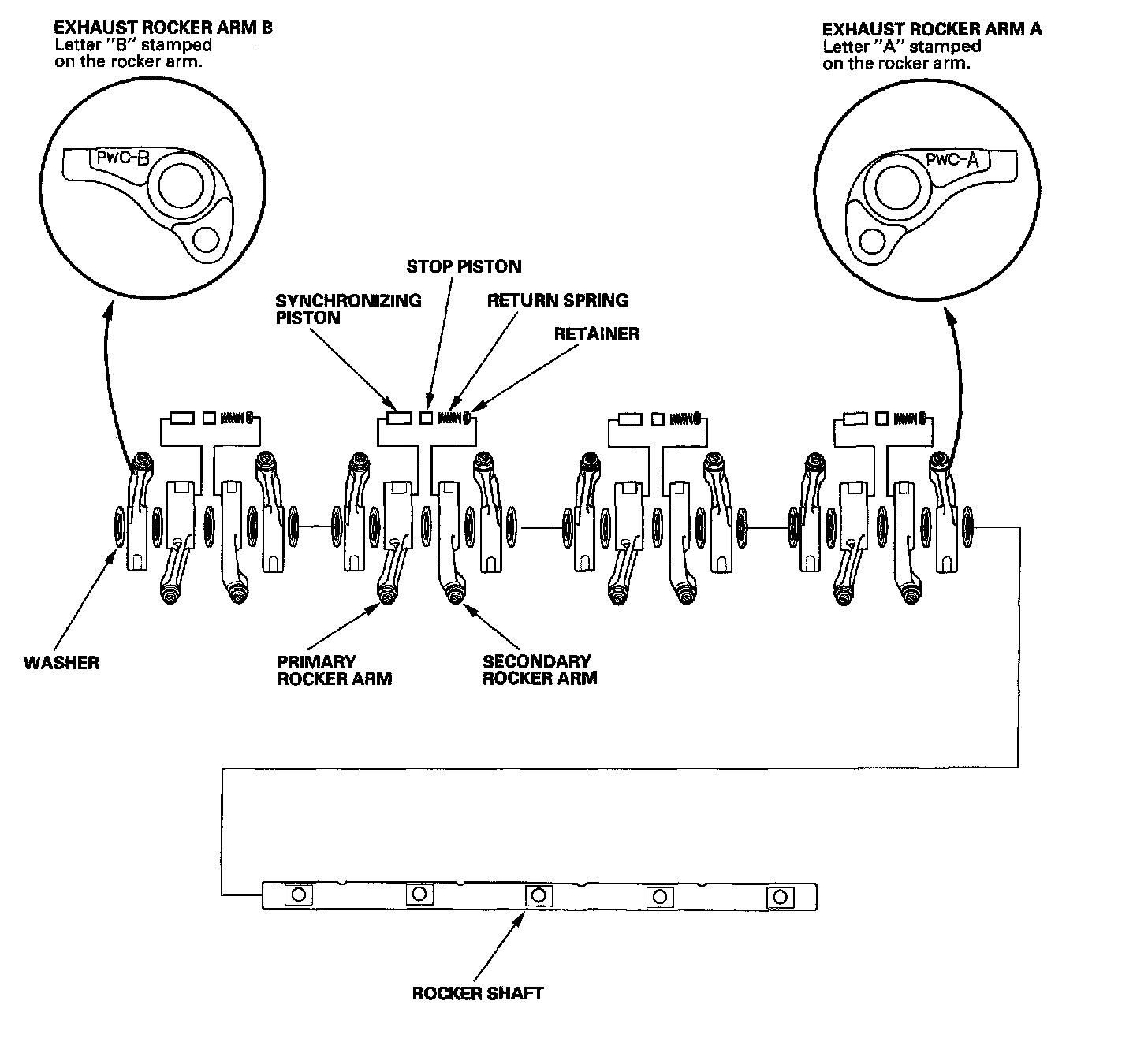

Rocker Arm and Shaft Disassembly/Reassembly

NOTE:
^ Identify parts as they are removed to ensure reinstallation in original location.
^ When disassembling or reassembling the rocker arms, remove or install the rocker arm from cam chain side on the rocker shaft.
^ Inspect the rocker arm shaft and rocker arms.
^ If reused the rocker arms must be installed in the same positions.
^ Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact points.
