Gauges Circuit Diagram

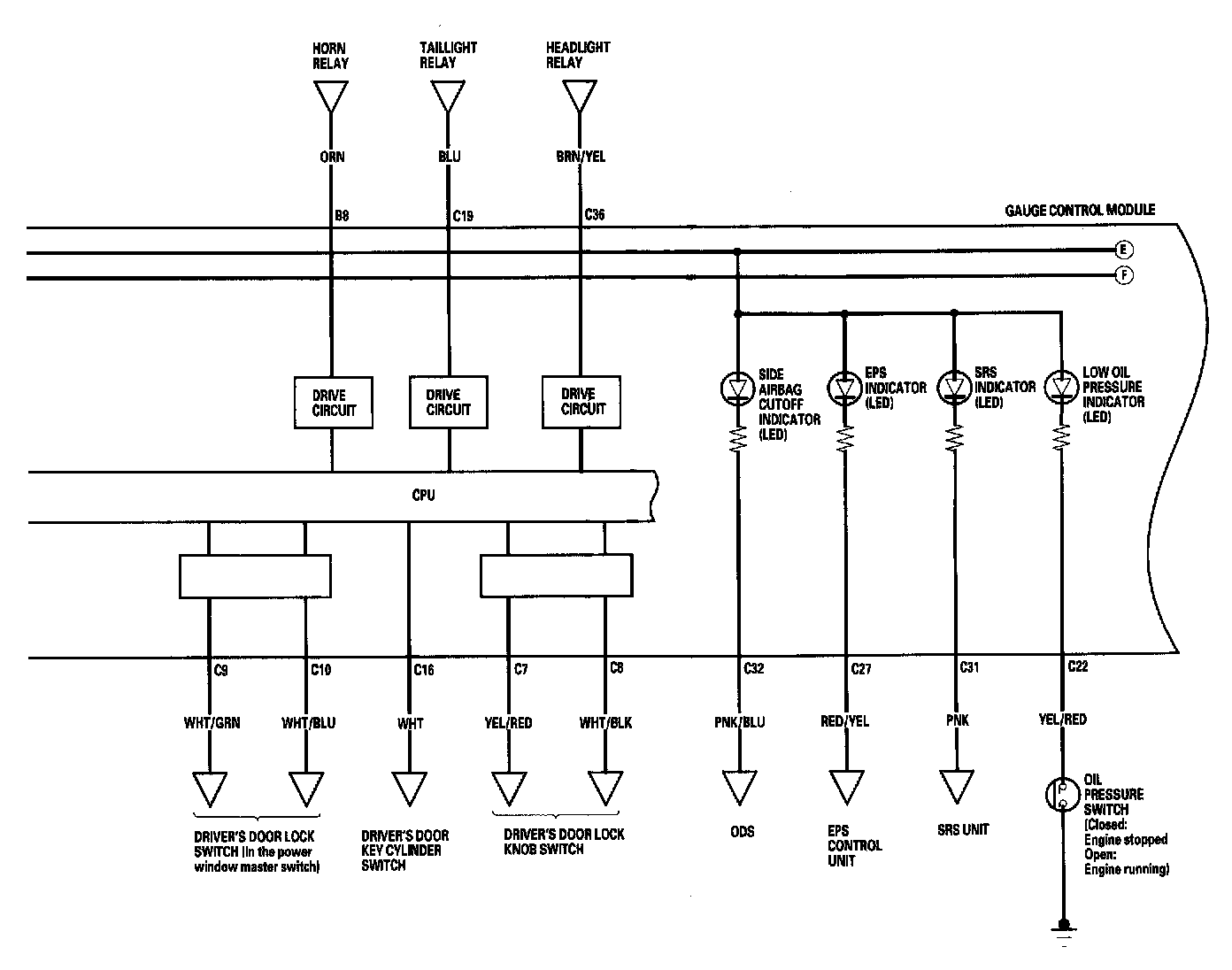

Gauges Circuit Diagram Part 1:

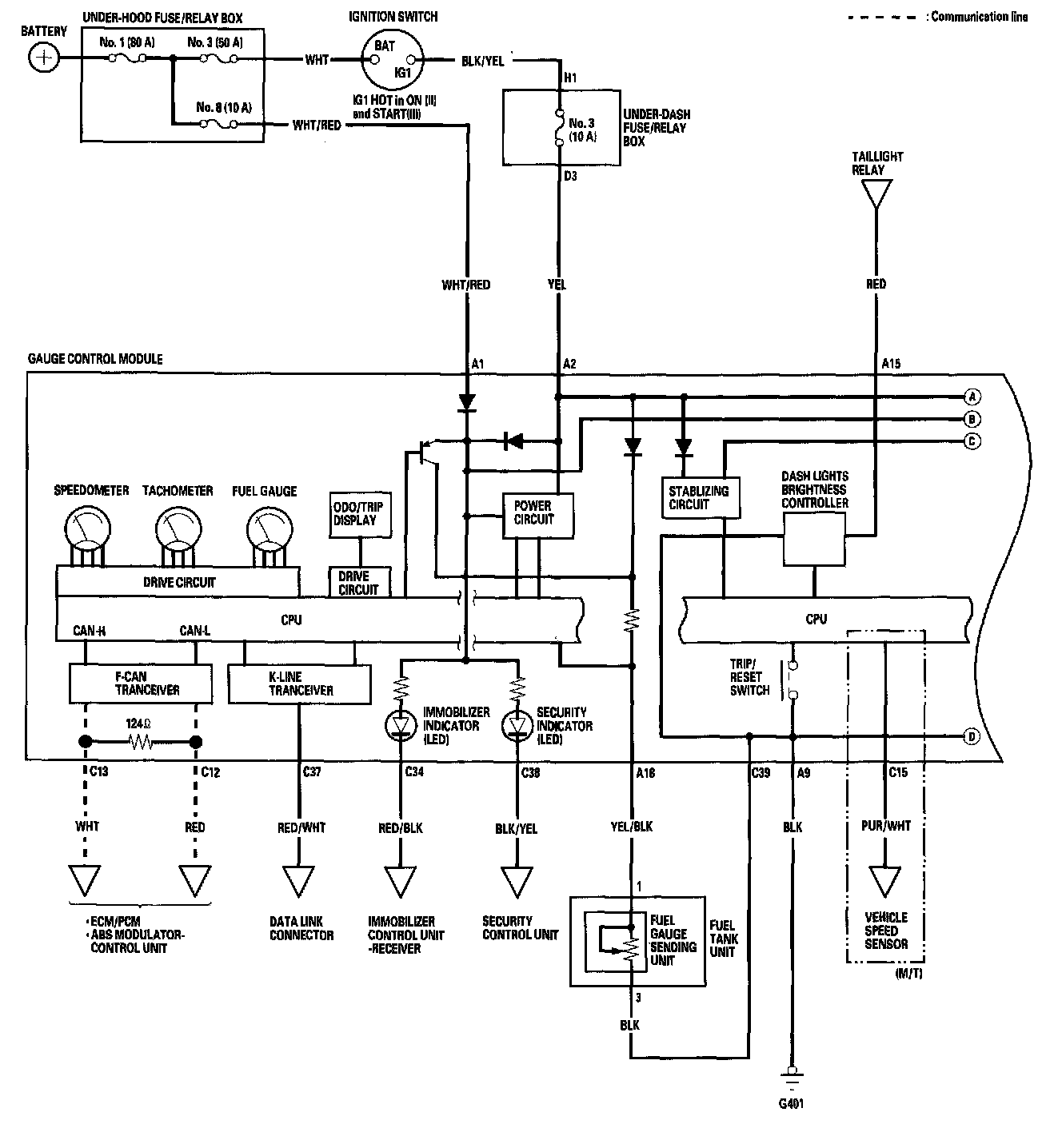

Gauges Circuit Diagram Part 2:

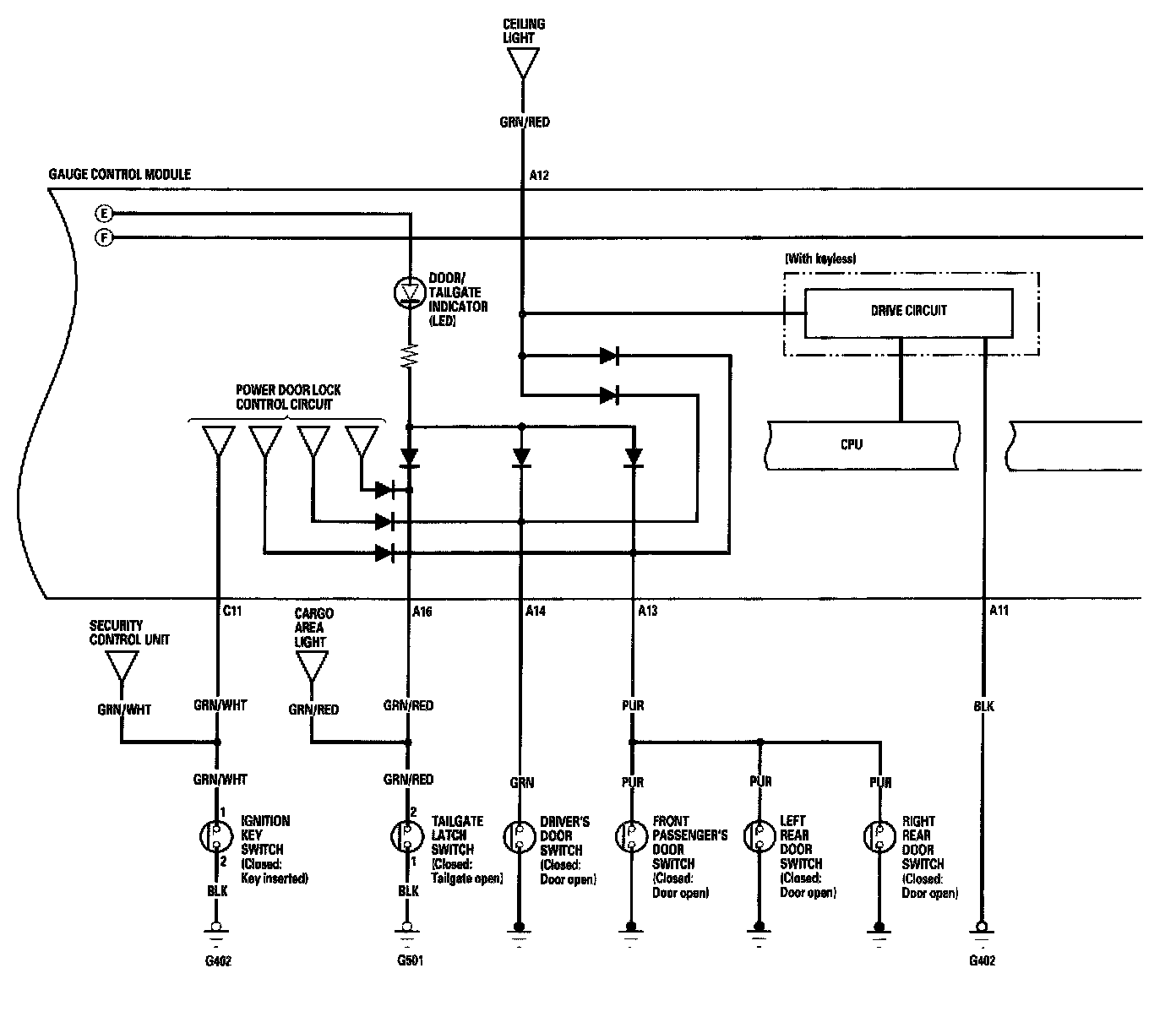

Gauges Circuit Diagram Part 3:

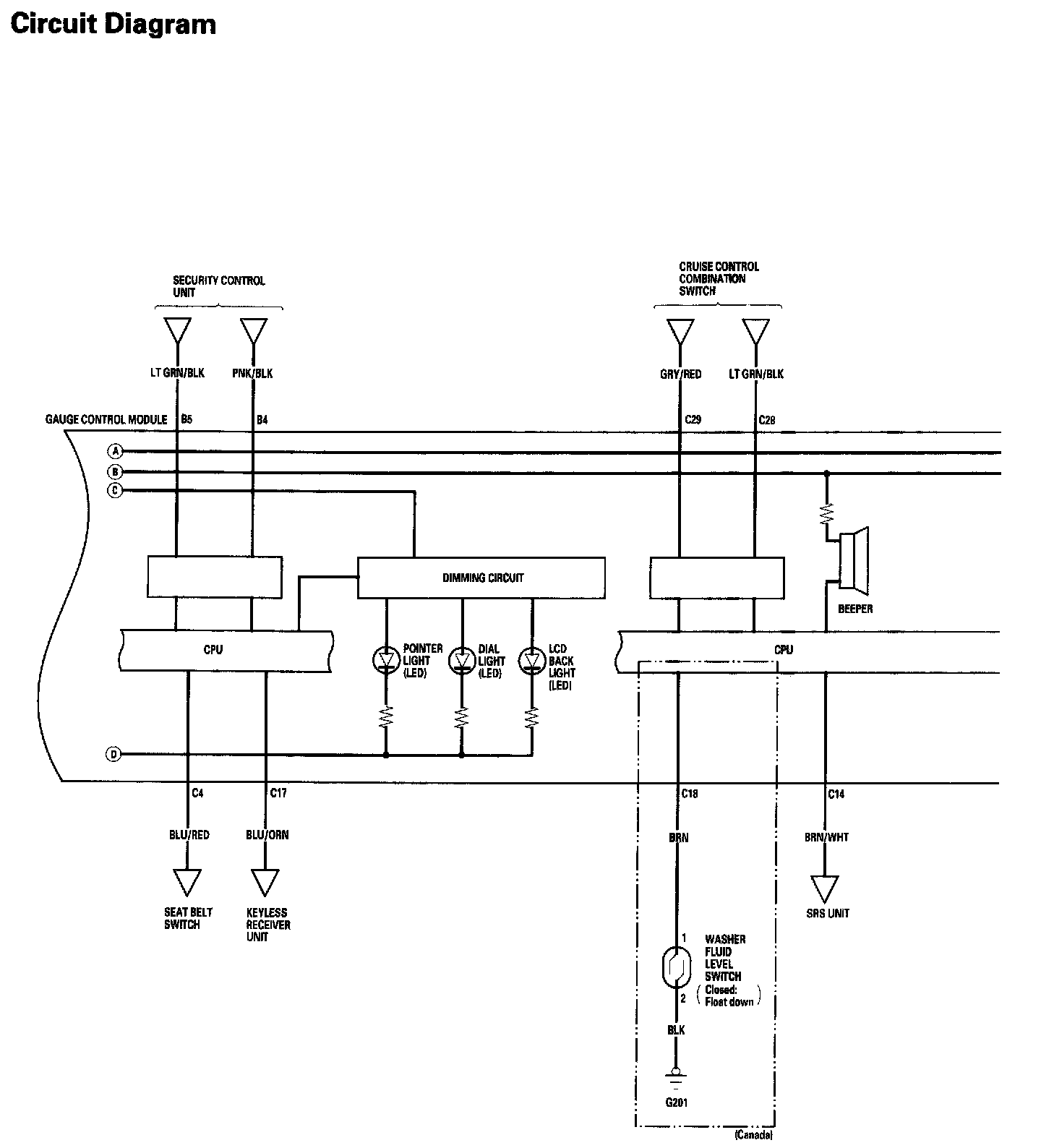

Gauges Circuit Diagram Part 4:



Gauges Circuit Diagram Part 5:



Gauges Circuit Diagram Part 6:



Gauges Circuit Diagram Part 7:
