Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 15 (Splice and Junction Connector Details)

Diagram Set 15 (Splice and Junction Connector Details)

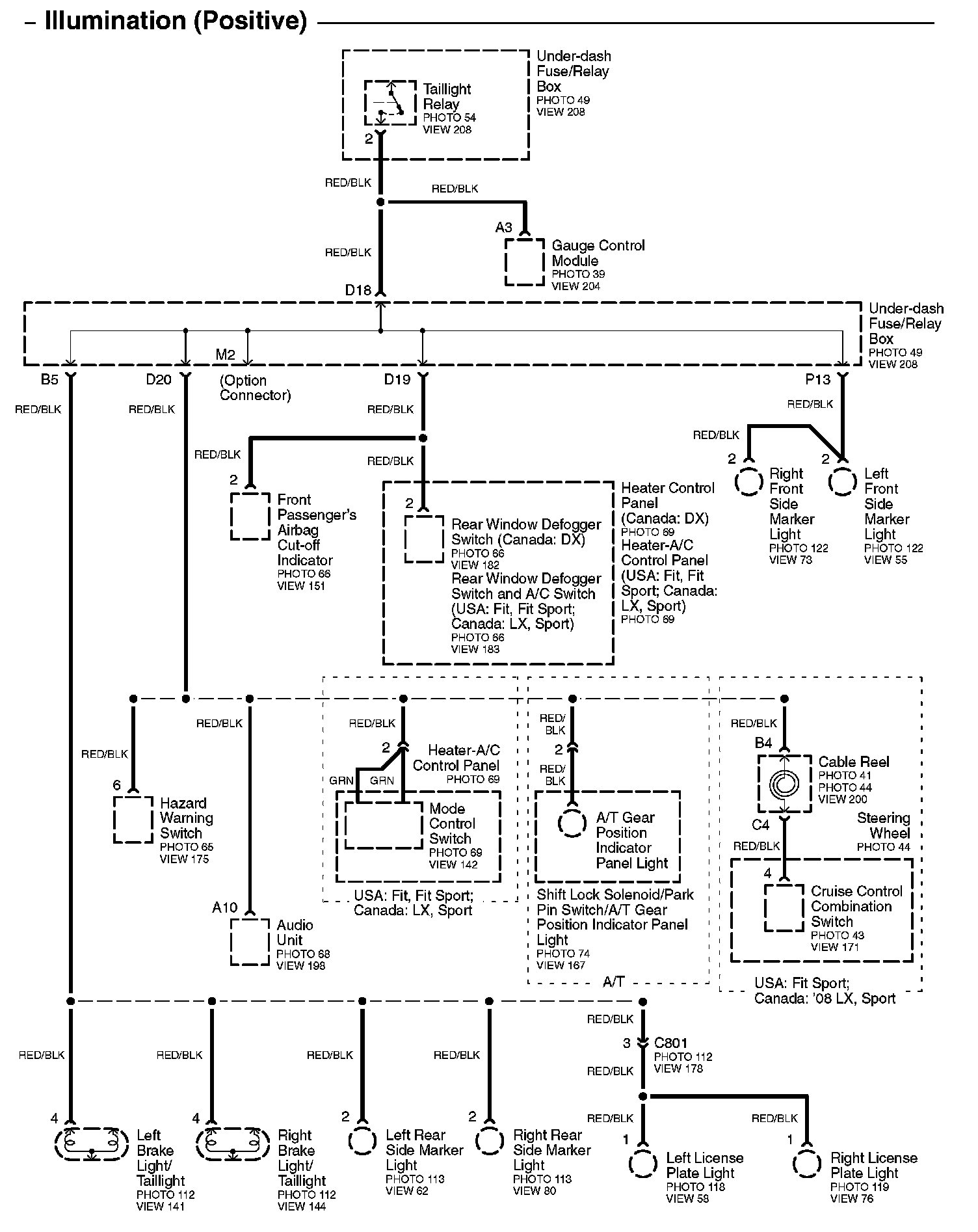

Diagram 15-0:
