Connector ID By Location on Harness
>>
Roof Wire Harness
Roof Wire Harness

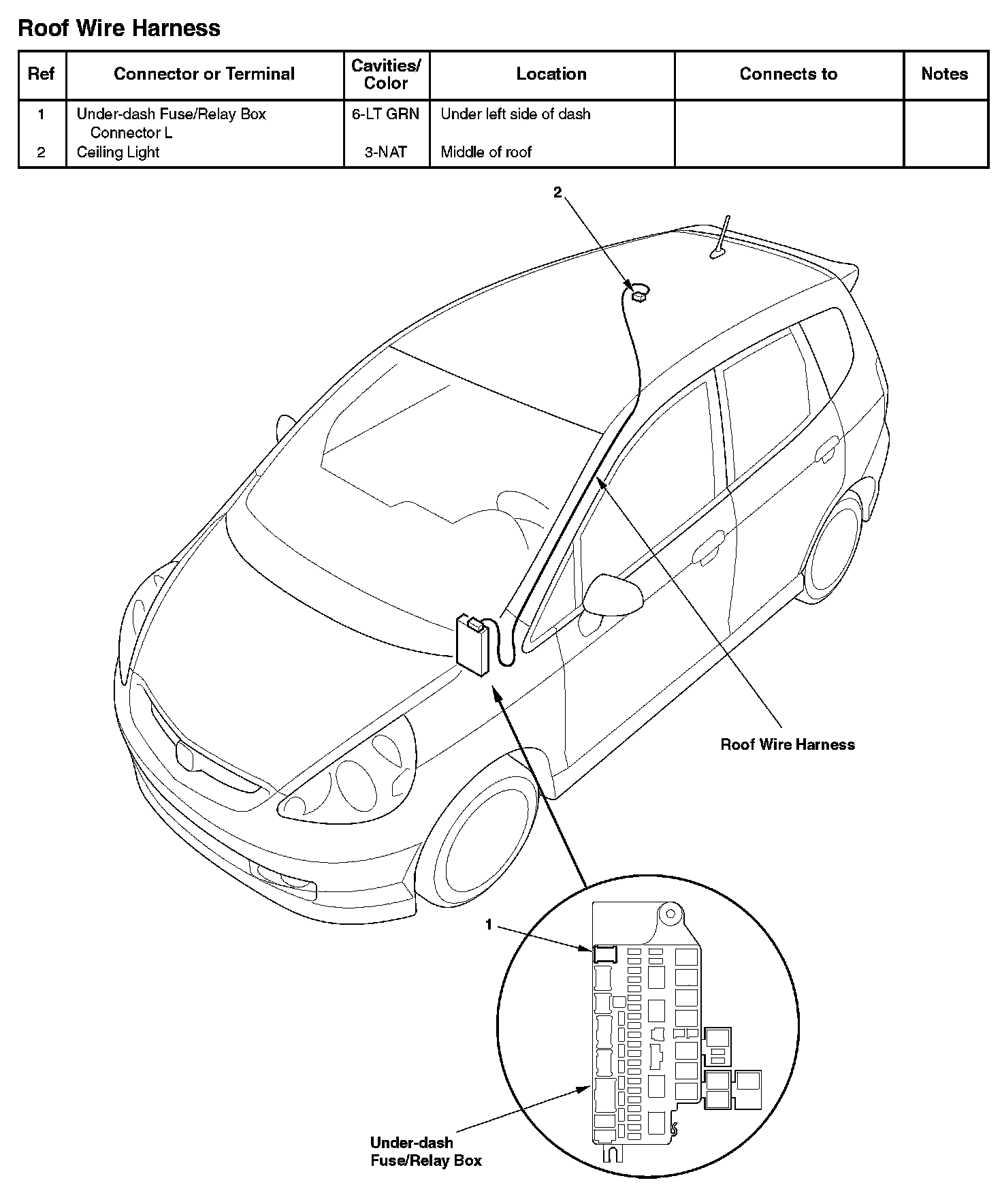

Roof Wire Harness:

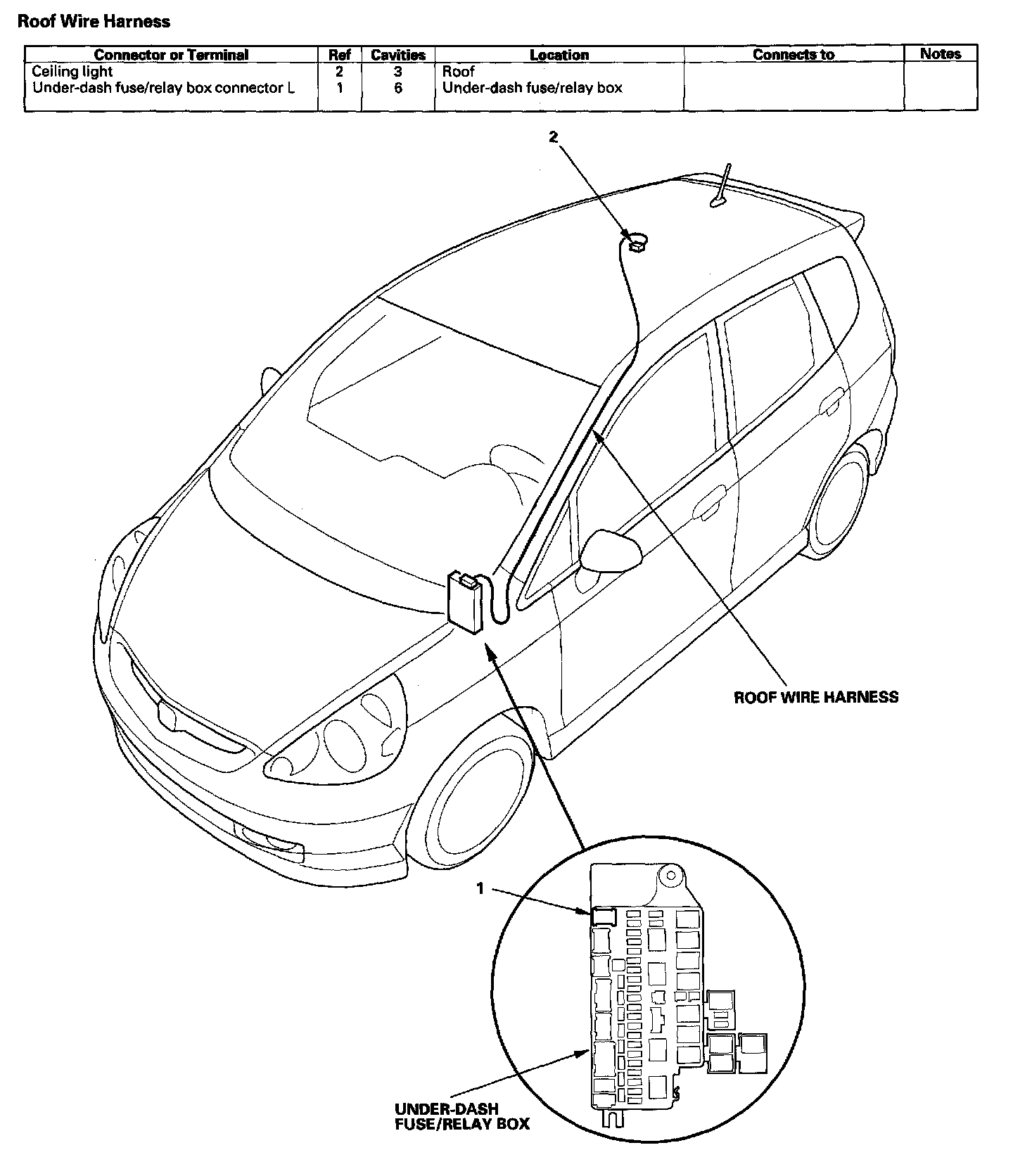

Roof Wire Harness:
