Engine Compartment Wire Harness (Right Branch)
Engine Compartment Wire Harness (Right Branch)

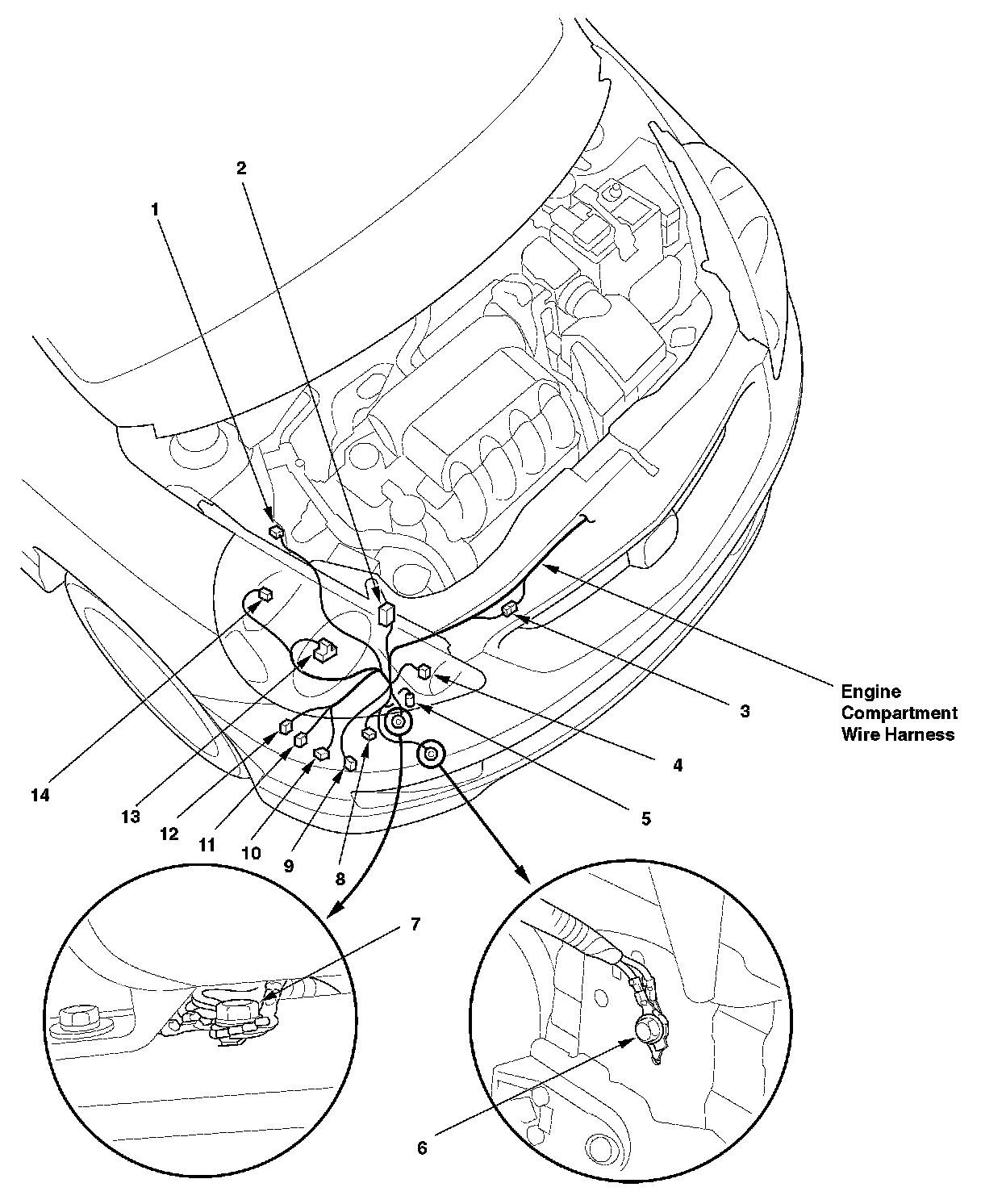

Harness Location View:

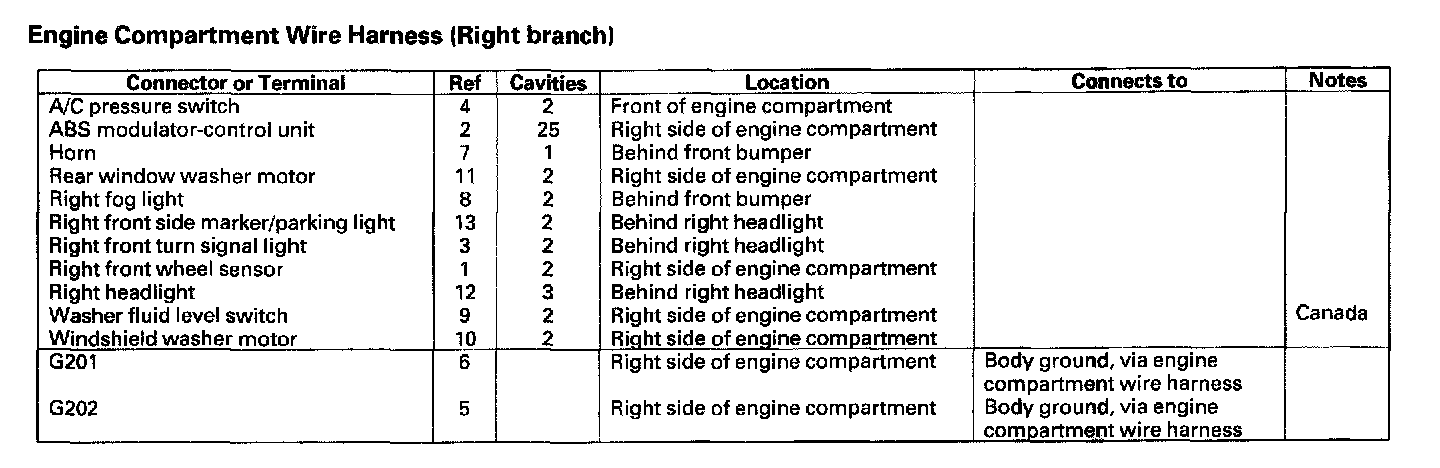

Engine Compartment Wire Harness (Right Branch):

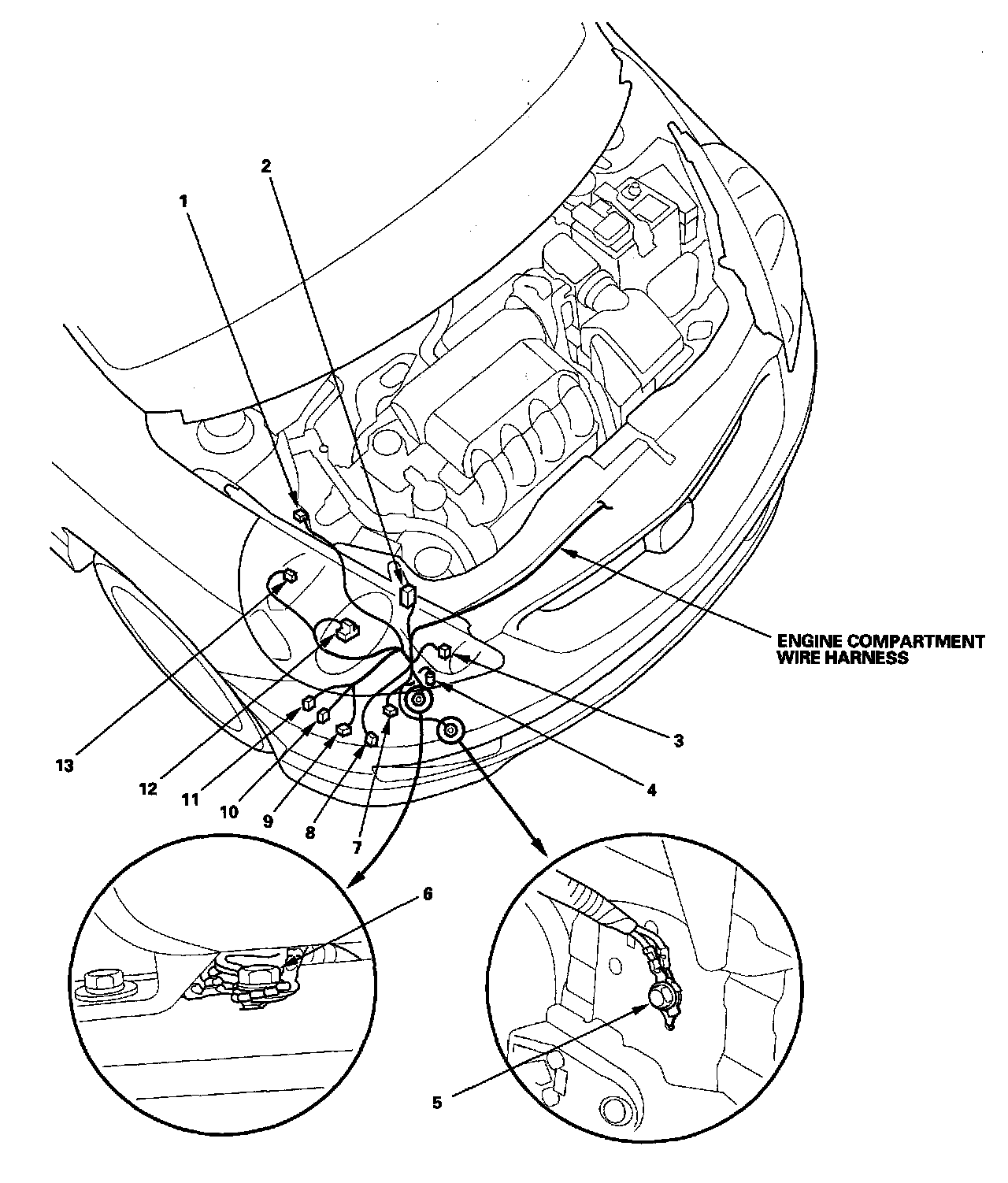

Harness Location View:

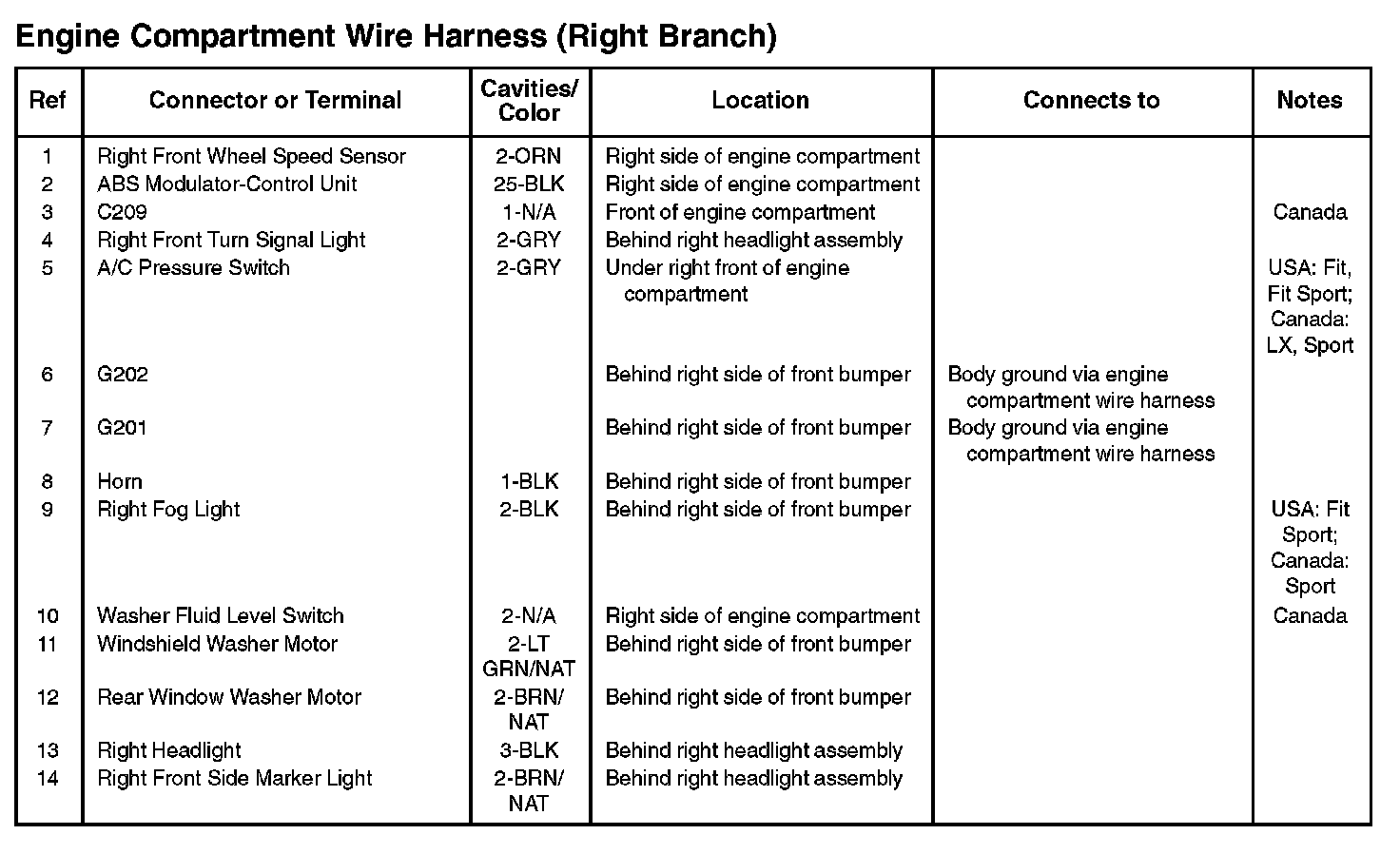

Engine Compartment Wire Harness (Right Branch):
