Circuit Diagram

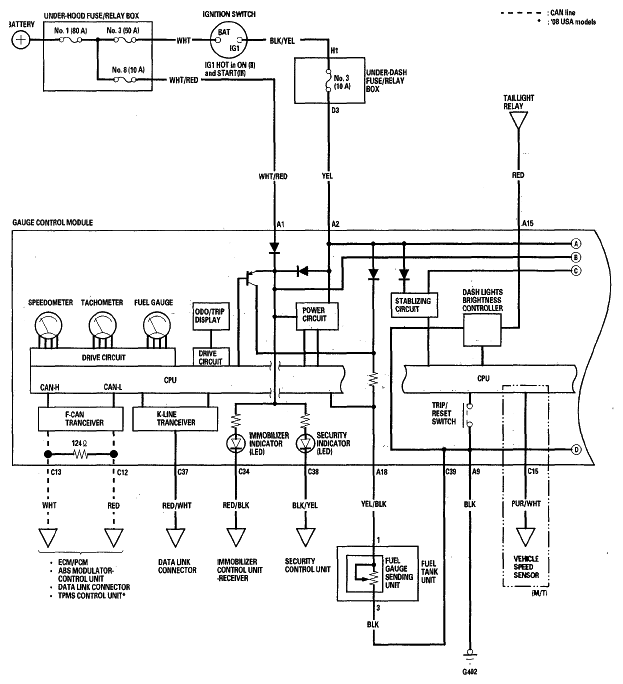

Fig 1: Gauges Circuit Diagram (1 Of 7)

G05456707

Courtesy of AMERICAN HONDA MOTOR CO., INC.

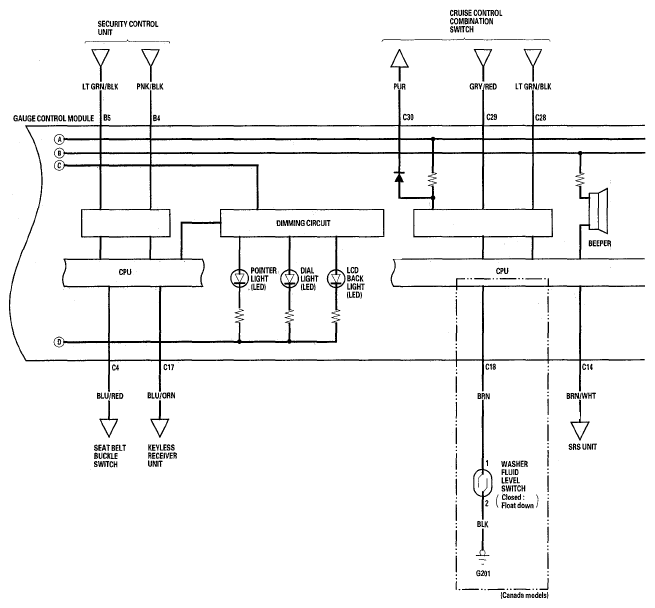

Fig 2: Gauges Circuit Diagram (2 Of 7)

G05456708

Courtesy of AMERICAN HONDA MOTOR CO., INC.

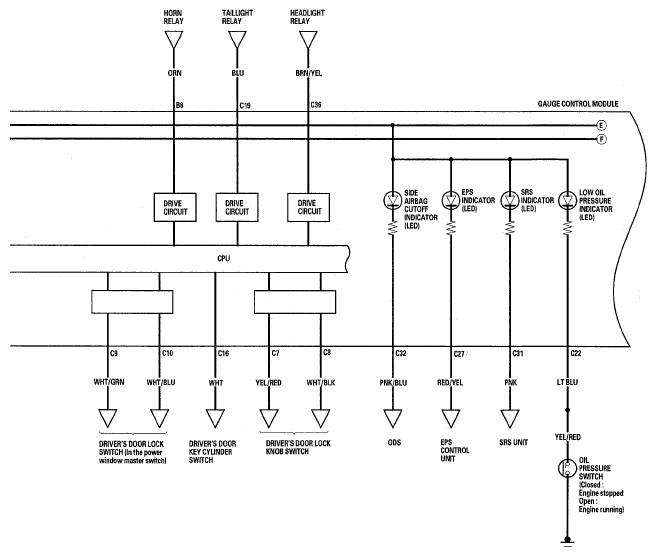

Fig 3: Gauges Circuit Diagram (3 Of 7)

G05456709

Courtesy of AMERICAN HONDA MOTOR CO., INC.

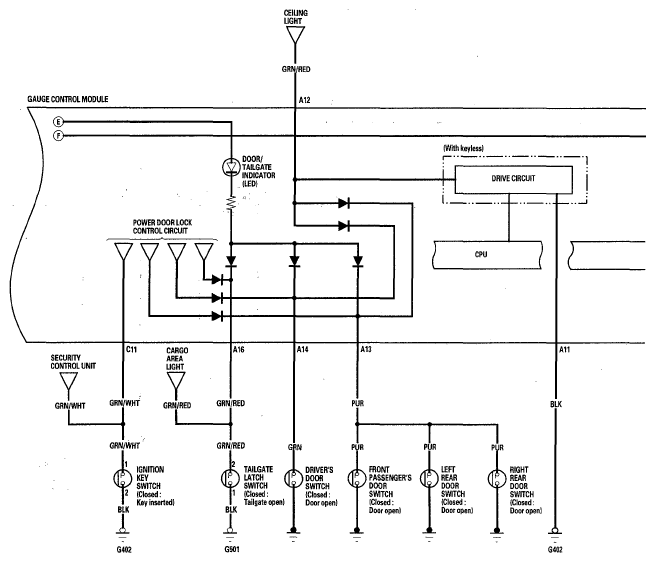

Fig 4: Gauges Circuit Diagram (4 Of 7)

G05456710

Courtesy of AMERICAN HONDA MOTOR CO., INC.

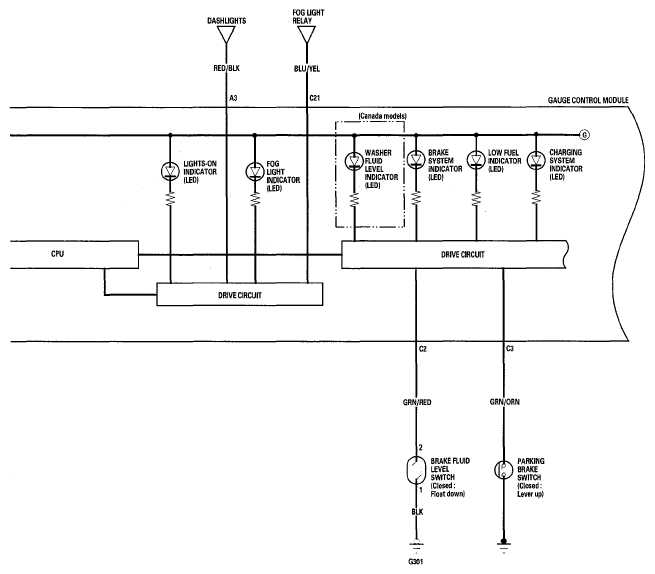

Fig 5: Gauges Circuit Diagram (5 Of 7)

G05456711

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Gauges Circuit Diagram (6 Of 7)

G05456712

Courtesy of AMERICAN HONDA MOTOR CO., INC.

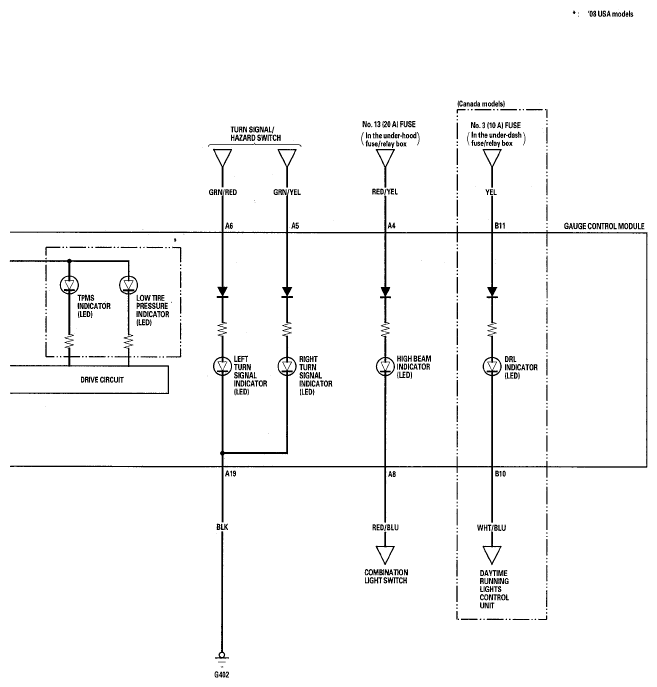

Fig 7: Gauges Circuit Diagram (7 Of 7)

G05456713

Courtesy of AMERICAN HONDA MOTOR CO., INC.
