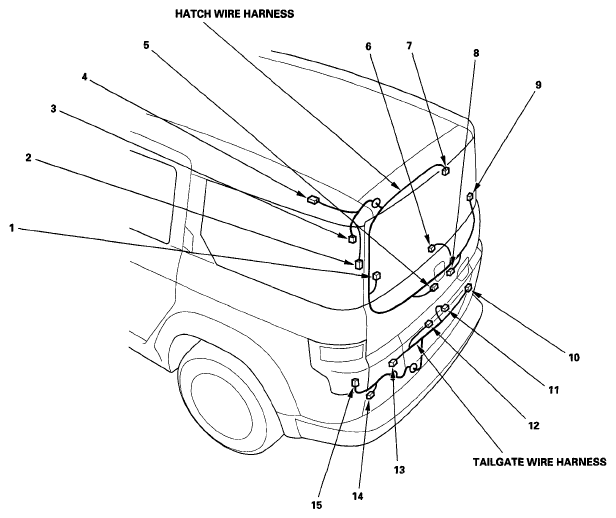

Tailgate Wire Harness ('09-11 model)
CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Left tailgate latch switch | 13 | 2 | Left side of tailgate | ||
| License plate light | 11 | 2 | Middle of tailgate | Without navigation system | |
| License plate light/Rear rearview camera | 12 | 12 | Middle of tailgate | With navigation system | |
| Right tailgate latch switch | 10 | 4 | Right side of tailgate | ||
| Trailer lighting connector | 14 | 4 | Rear of cargo area | ||
| C681 | 15 | 18 | Left rear side trim panel | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
'09 model
