Tailgate Wire Harness ('07-08 models)

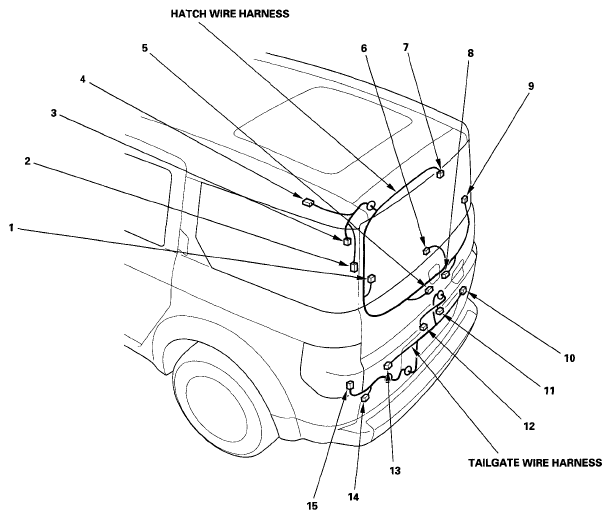

CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Left tailgate latch switch | 13 | 2 | Left side of tailgate | ||
| License plate light connector A | 11 | 2 | Middle of tailgate | ||
| License plate light connector B | 12 | 2 | Middle of tailgate | ||
| Right tailgate latch switch | 10 | 2 | Right side of tailgate | ||
| Trailer lighting connector | 14 | 4 | Rear of cargo area | ||
| C681 | 15 | 8 | Left rear side trim panel | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
'07-08 models
