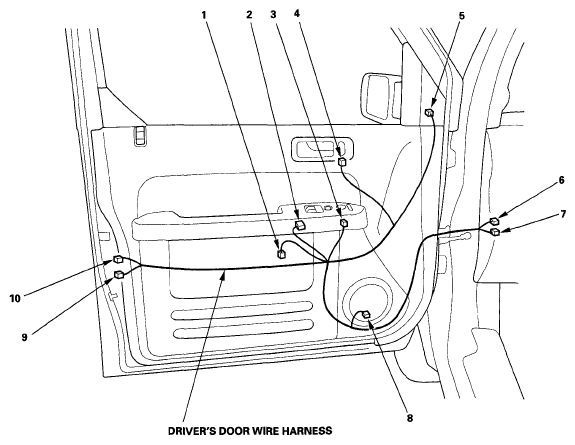

Driver's Door Wire Harness
CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's door lock actuator | 9 | 2 | Driver's door | ||
| Driver's door lock knob switch | 10 | 3 | Driver's door | ||
| Driver's door lock switch | 4 | 5 | Driver's door | ||
| Driver's door speaker | 8 | 2 | Driver's door | ||
| Driver's power window motor | 1 | 6 | Driver's door | ||
| Left power mirror | 5 | 8 | Driver's door | ||
| Power mirror switch | 3 | 13 | Driver's door | ||
| Power window master switch | 2 | 14 | Driver's door | ||
| C751 | 7 | 20 | Under left side of dash | Dashboard wire harness A
|
|
| C752 | 6 | 6 | Under left side of dash | Dashboard wire harness A
|
