Home >> Honda >> 2007 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Shift Solenoid Wire Harness (A/T) >> Connectors and Harnesses

Connectors and Harnesses

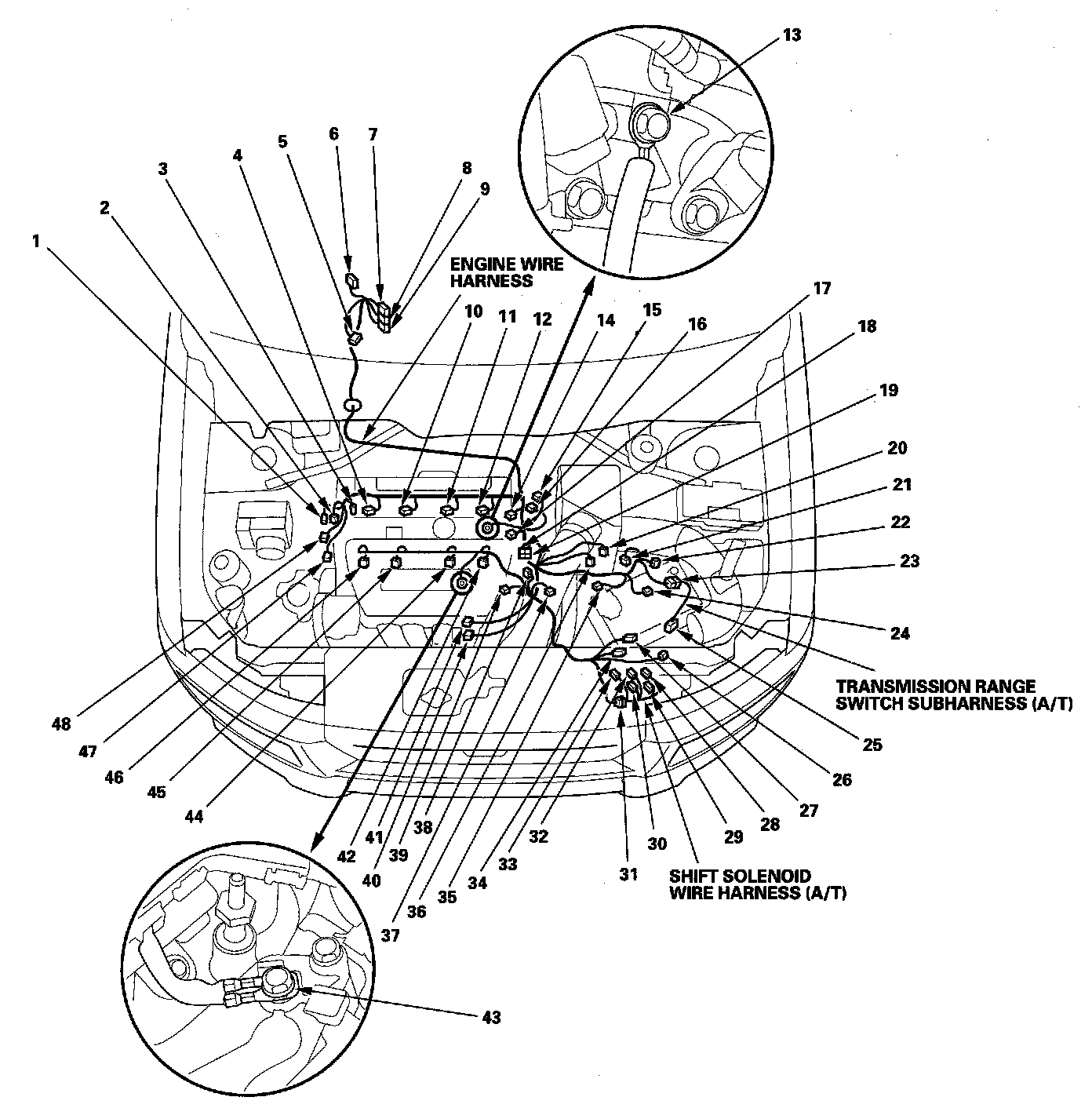

Harness Location View:



Shift Solenoid Wire Harness (A/T):
