A/T Clutch Pressure Control Solenoid Valve A Replacement

A/T Clutch Pressure Control Solenoid Valve A Replacement
1. Remove the air cleaner assembly.
2. Disconnect the A/T clutch pressure control solenoid valve A connector.

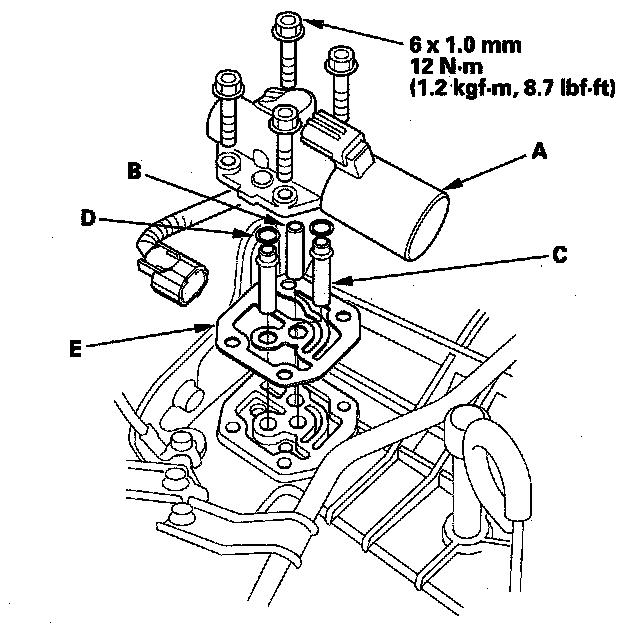

3. Remove the mounting bolts and A/T clutch pressure control solenoid valve A.





4. Remove the ATF pipe (B), ATF joint pipes (C), O-rings (D), and gasket (E).
5. Install a new gasket on the transmission housing, and install the ATF pipe and ATF joint pipes.
6. Install new O-rings over the ATF joint pipes.
7. Install A/T clutch pressure control solenoid valve A.
8. Check the A/T clutch pressure control solenoid valve A connector for rust, dirt, or oil, then connect the connector securely.
9. Install the air cleaner assembly.
