Engine Compartment Wire Harness (Right Branch) (LX, EX)

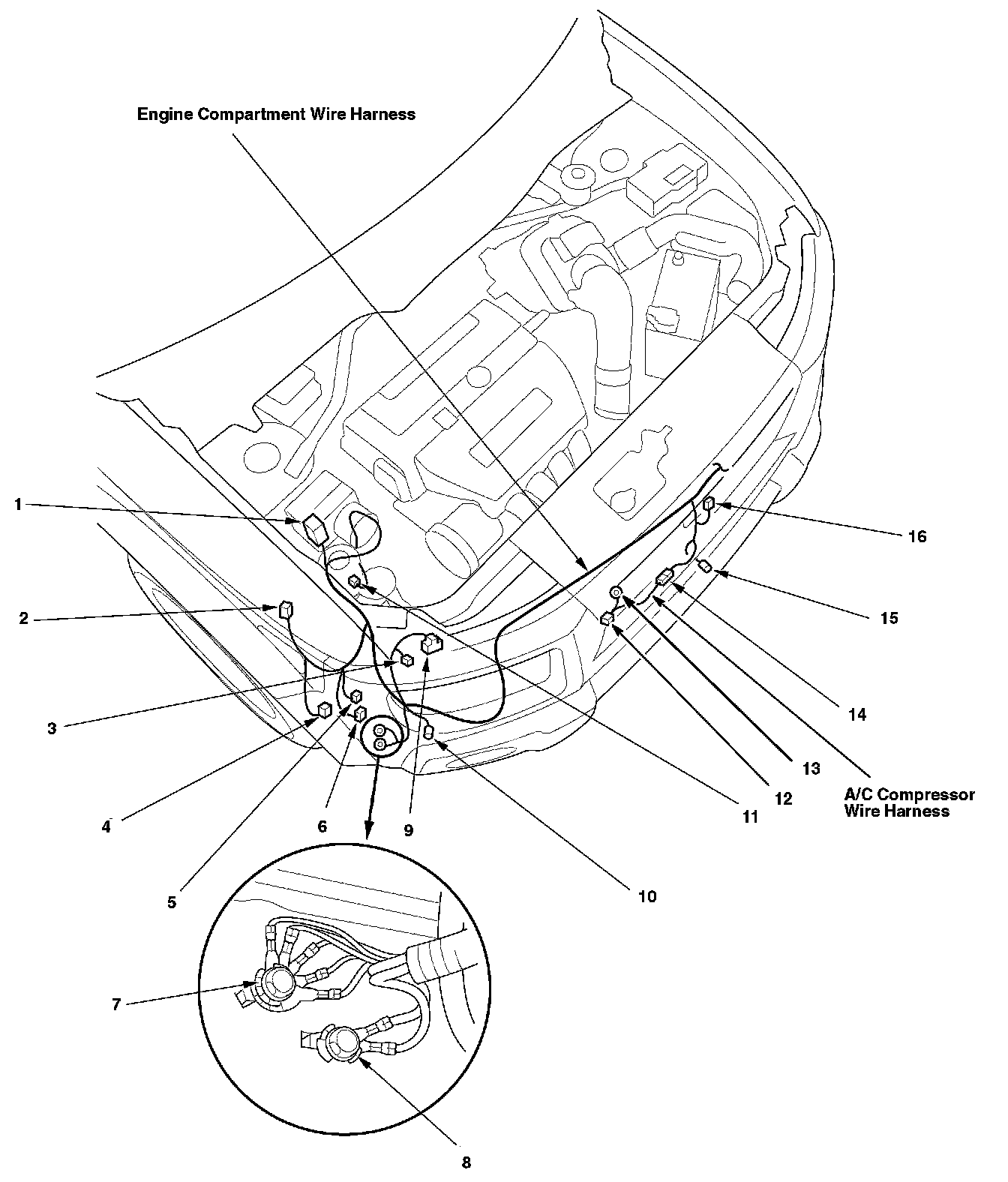

Harness Location View:

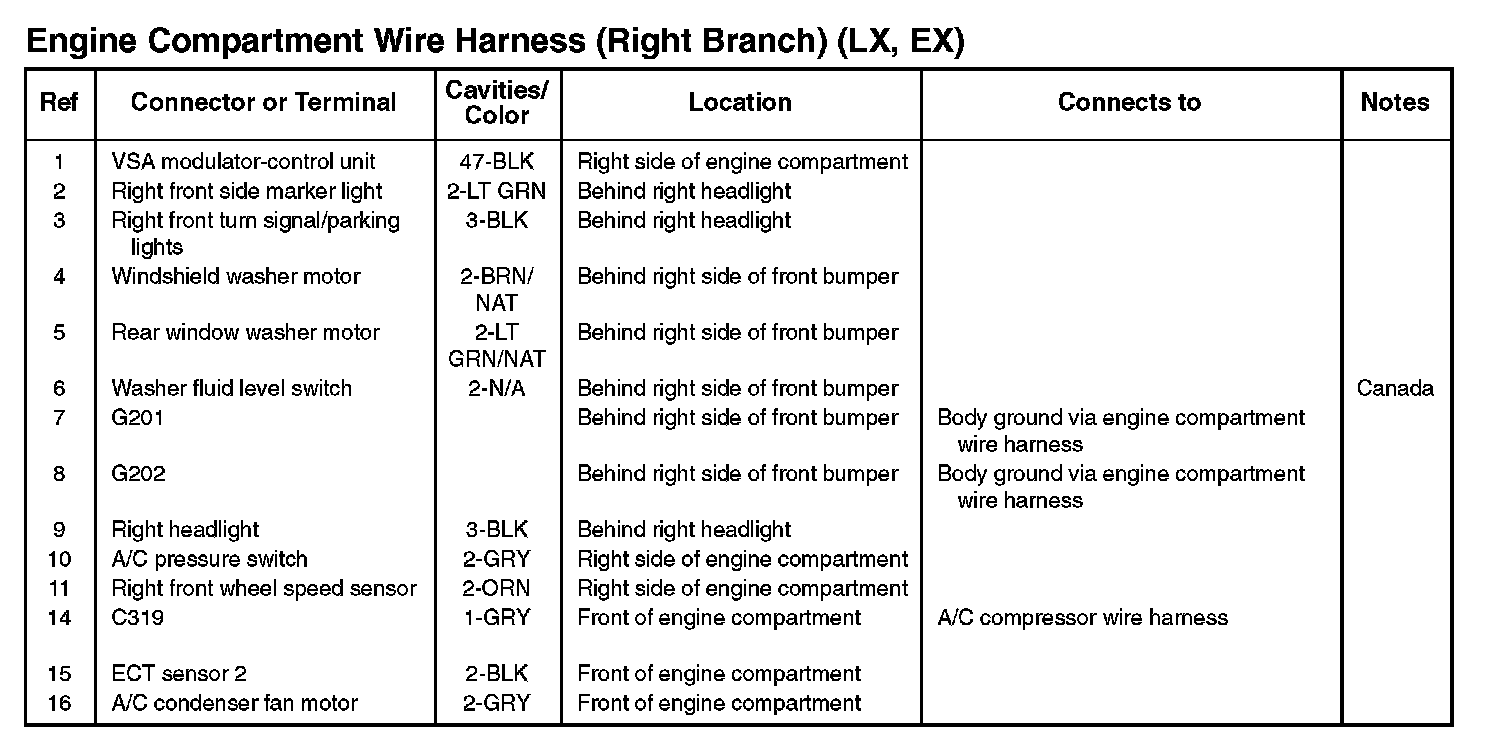

Engine Compartment Wire Harness (Right Branch) (LX, EX):
