Headlights (Canada)

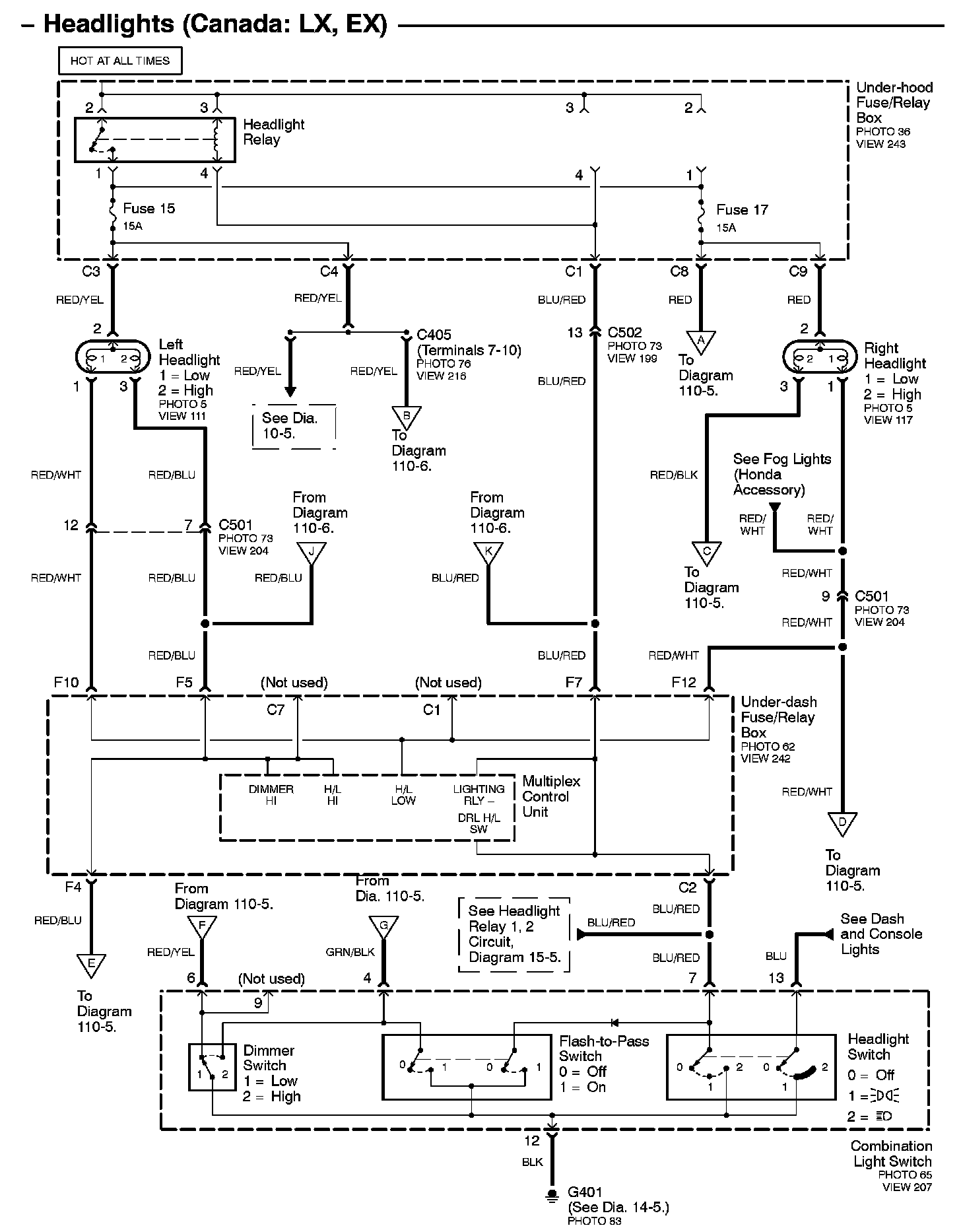

Diagram 110-4:

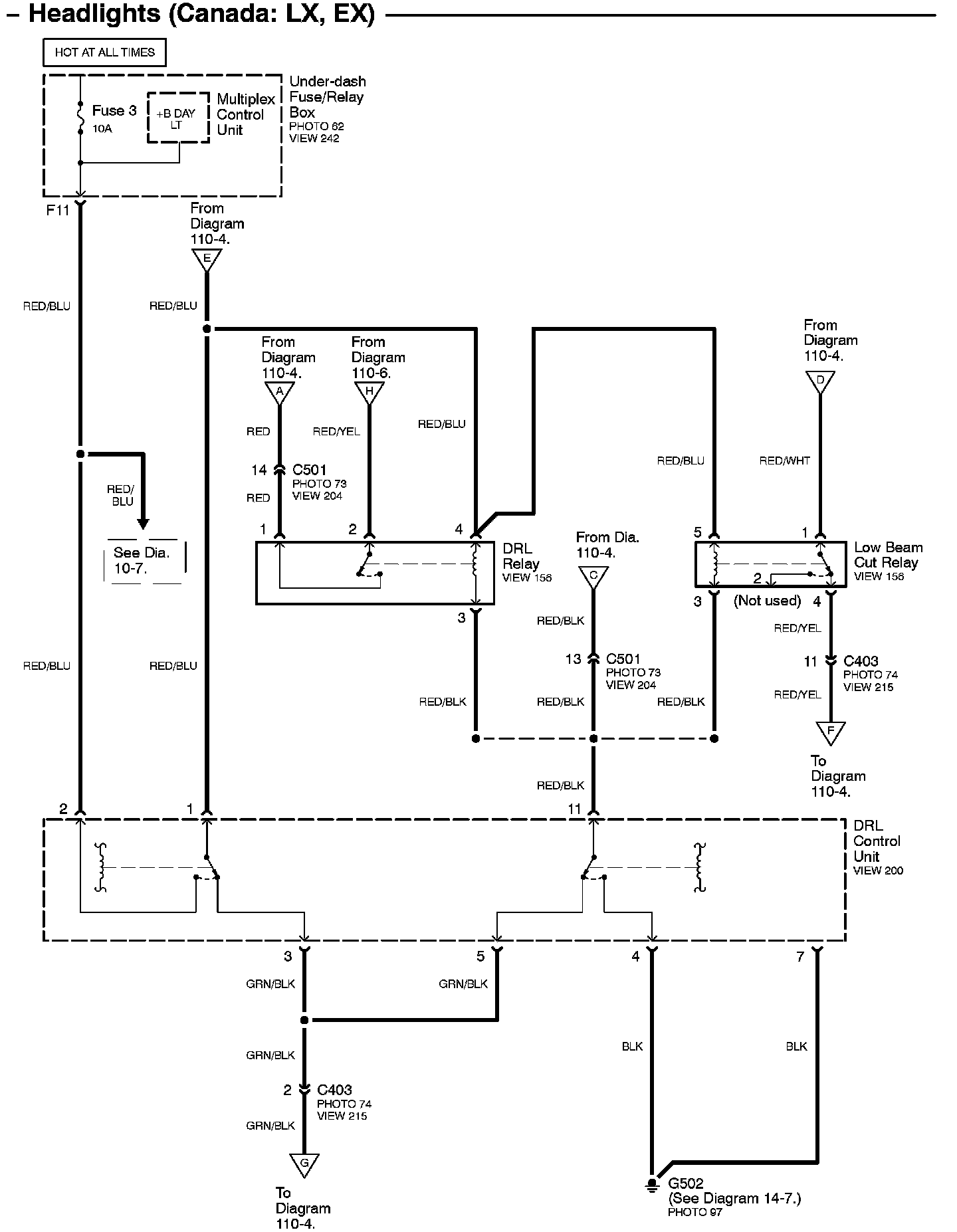

Diagram 110-5:

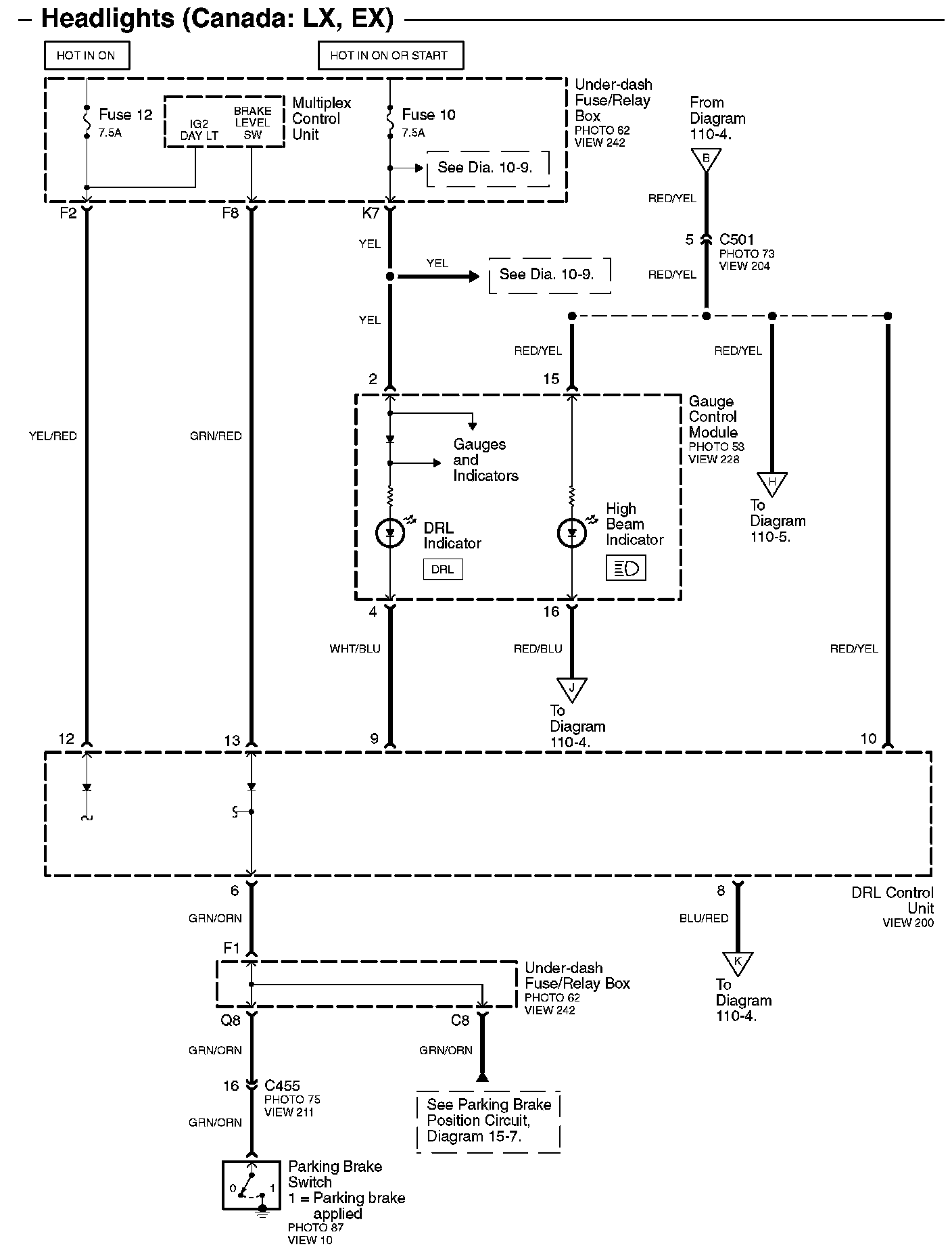

Diagram 110-6:

Diagram 110-8:

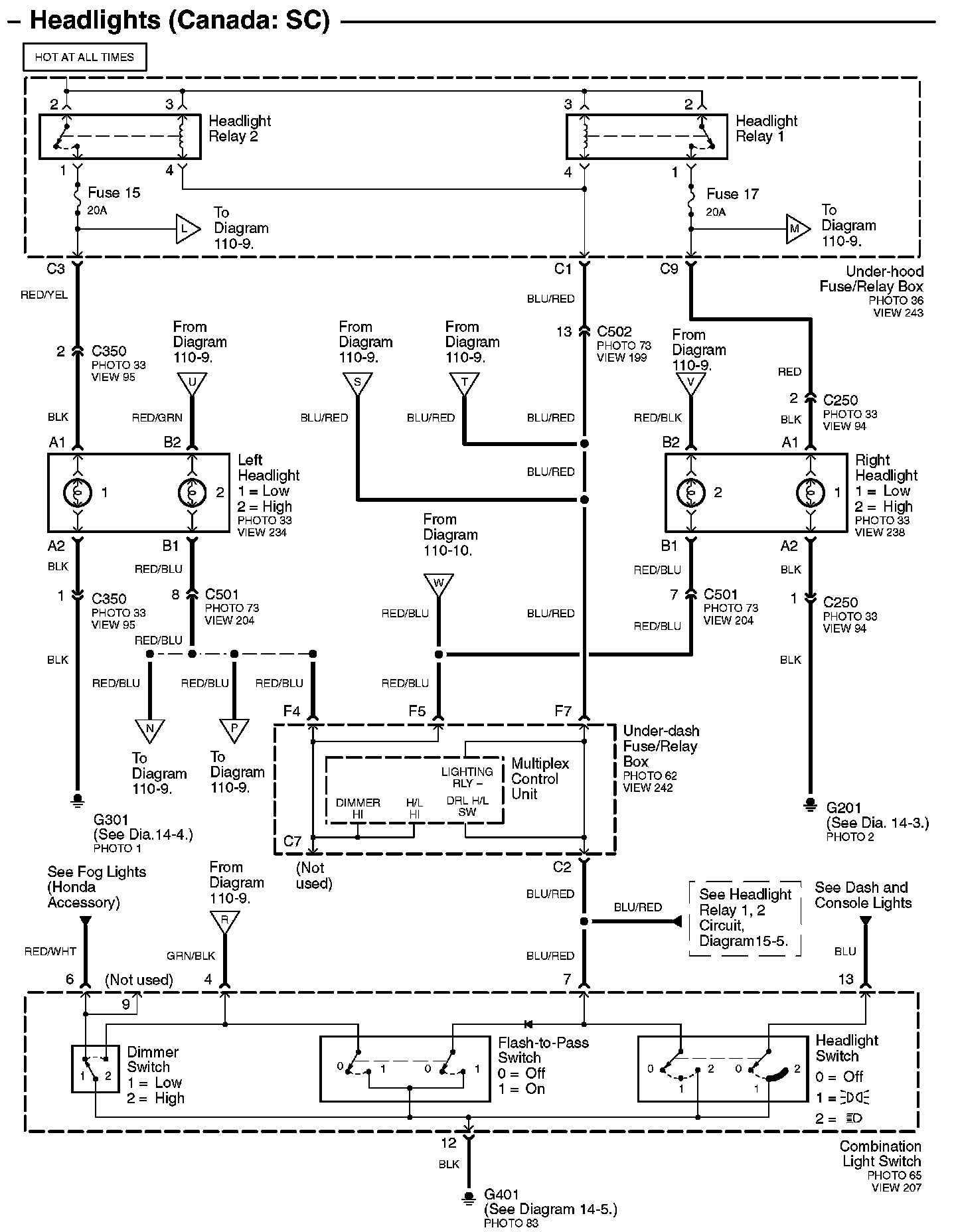

Diagram 110-9:

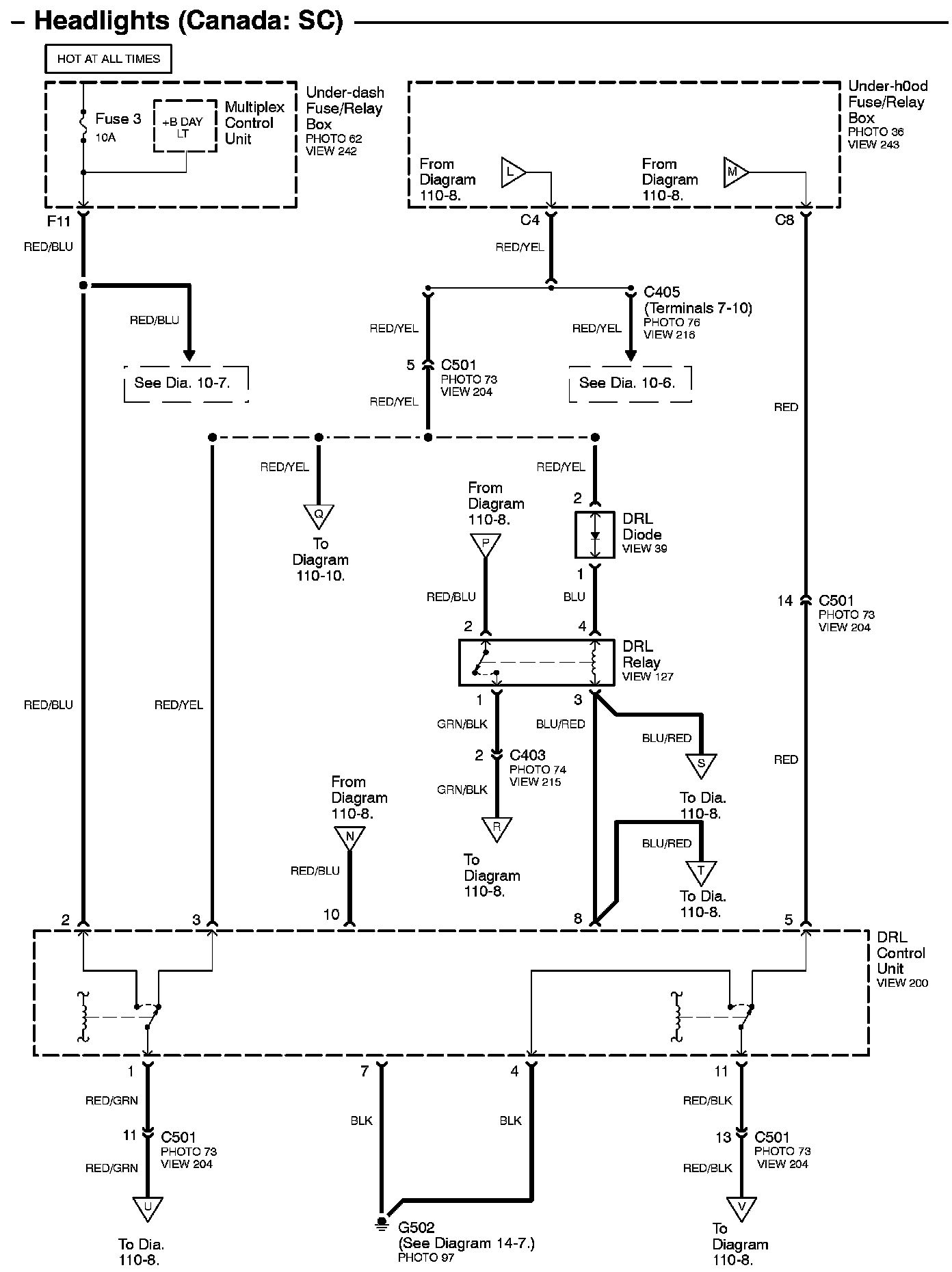

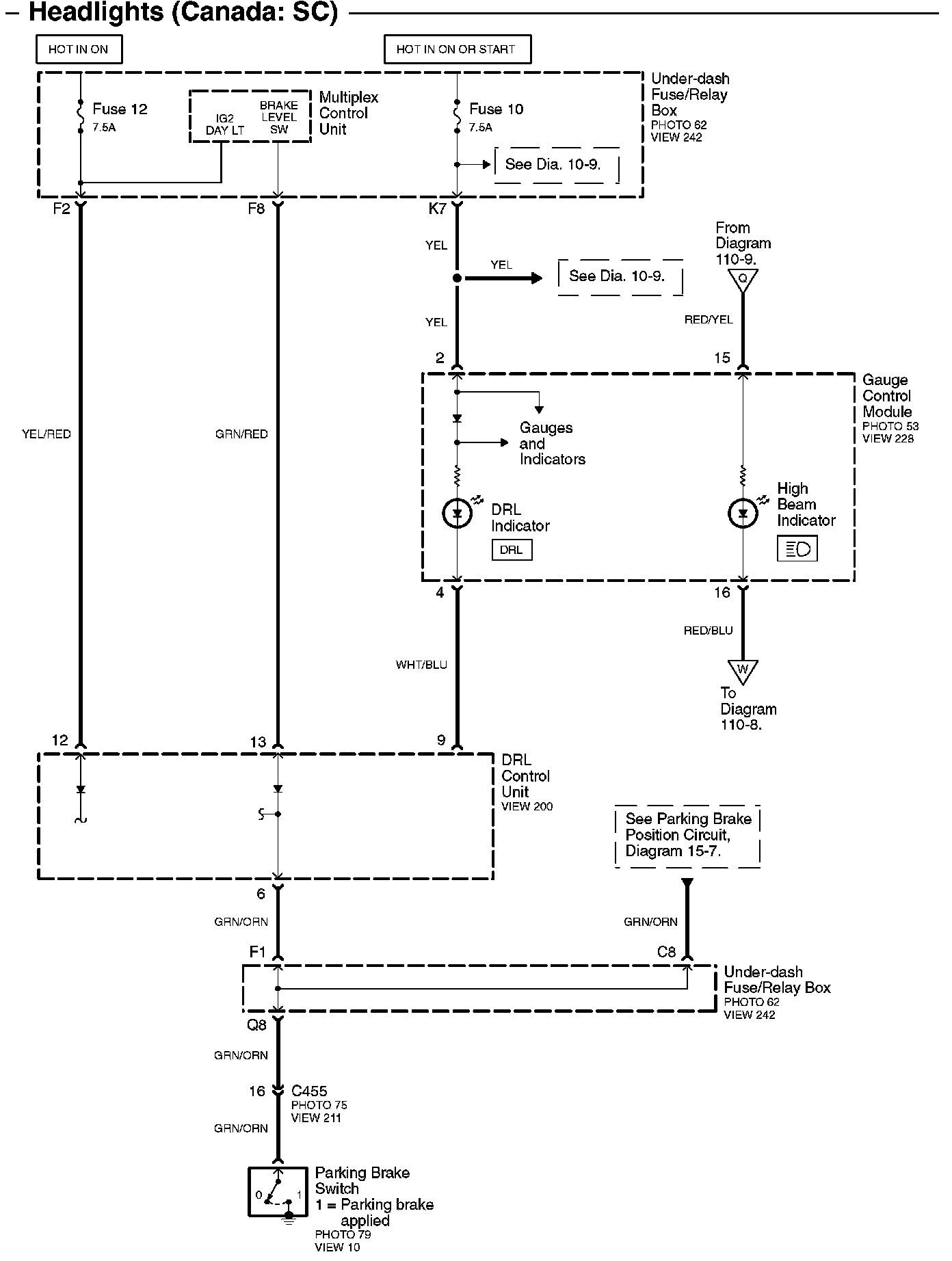

Diagram 110-10:

Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number

Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By View Number
