Connector ID By Location on Harness
>>
VSA/Fuel Pump Wire Harness
VSA/Fuel Pump Wire Harness

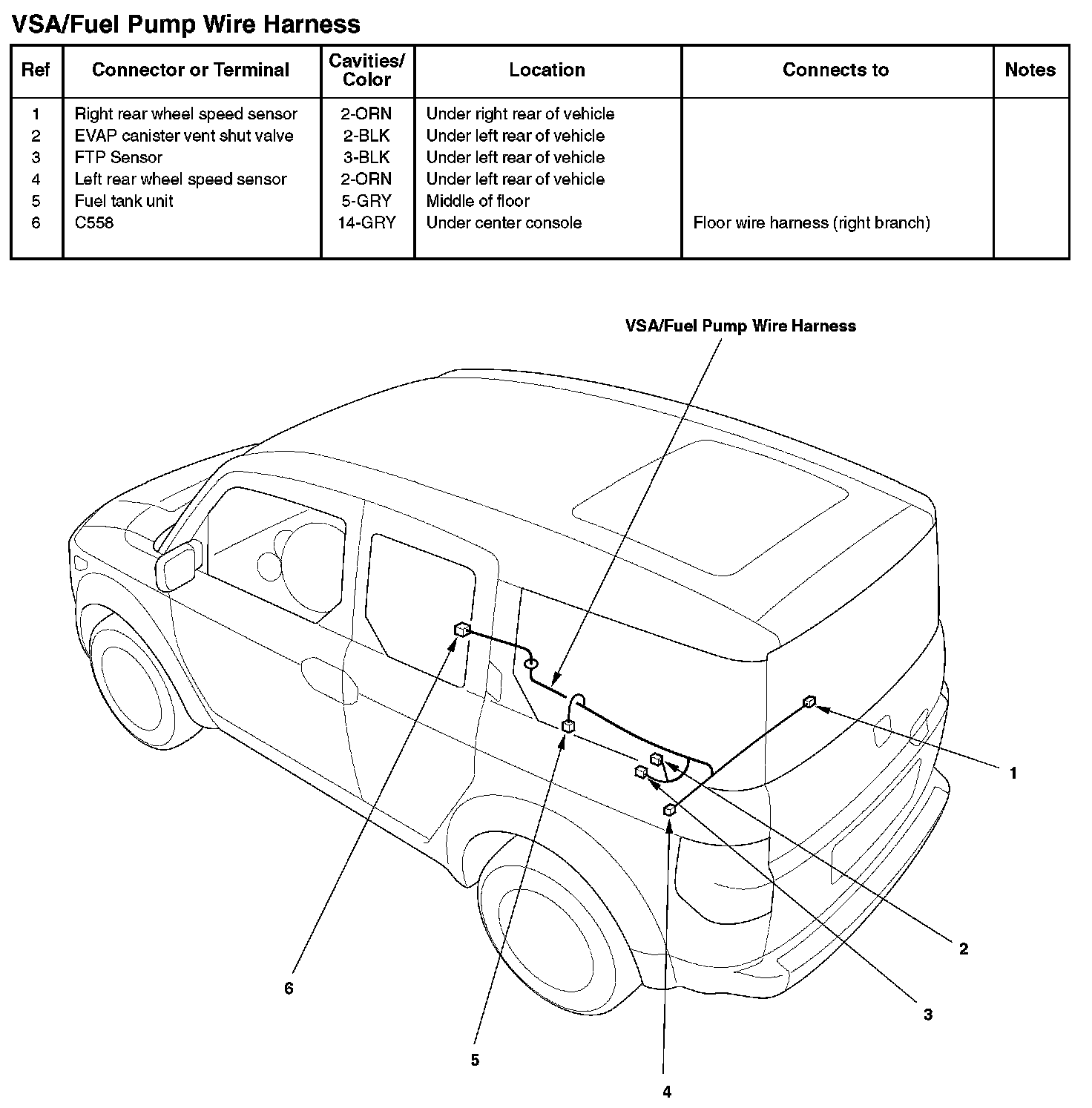

VSA/Fuel Pump Wire Harness:
