Wheel Speed Sensor
>>
Locations
>>
Connector Locations
Connector Locations

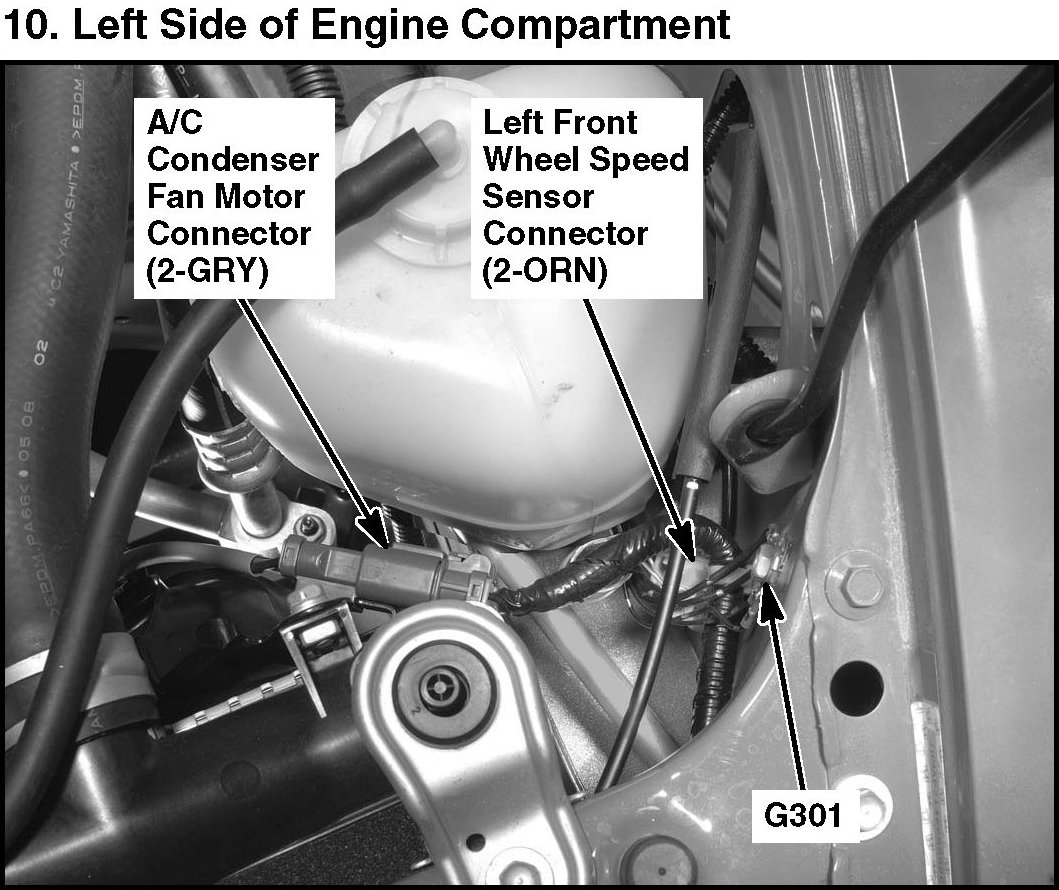

10. Left Side Of Engine Compartment:

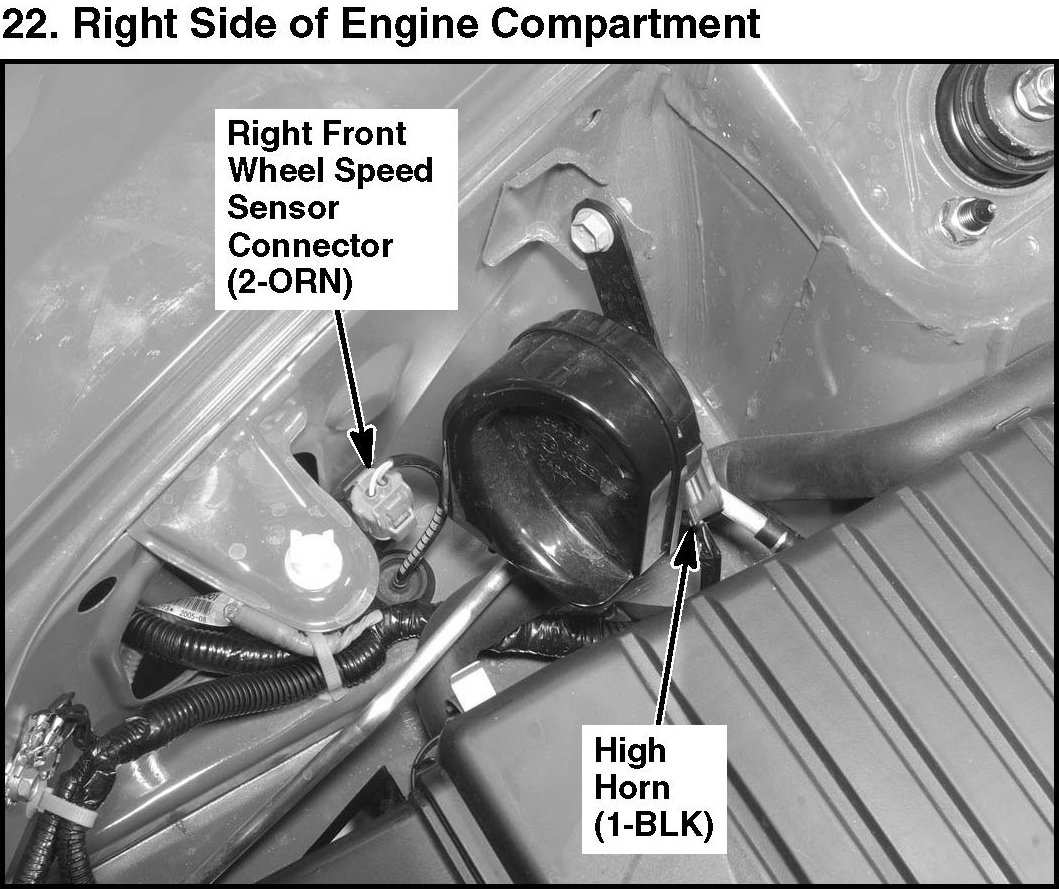

22. Right Side Of Engine Compartment:
118. Left Side Of Trunk (Right Similar):
