Convertible Top Switch
>>
Locations
>>
Component Locations
Component Locations

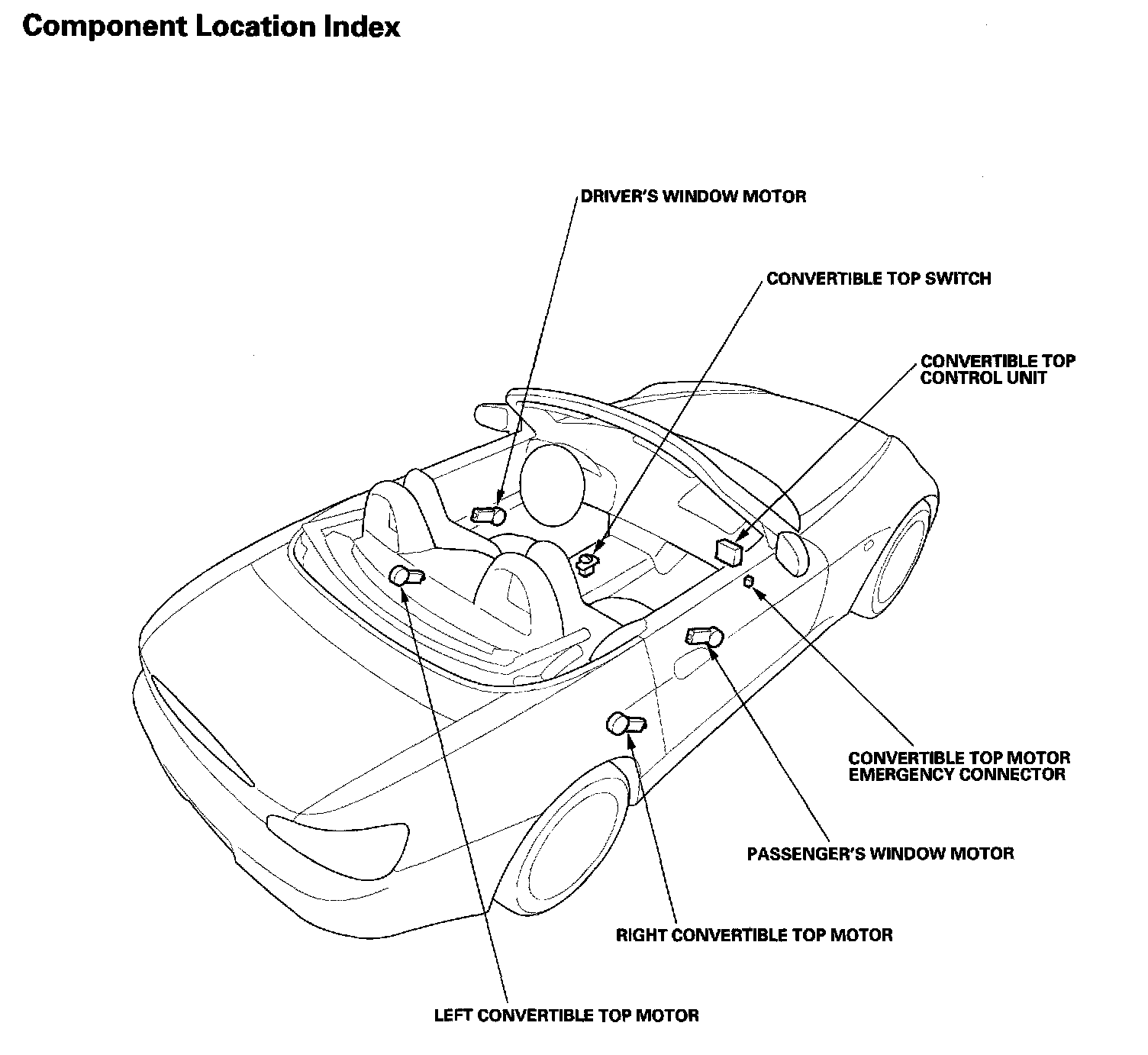

Convertible Top - Component Location Index:

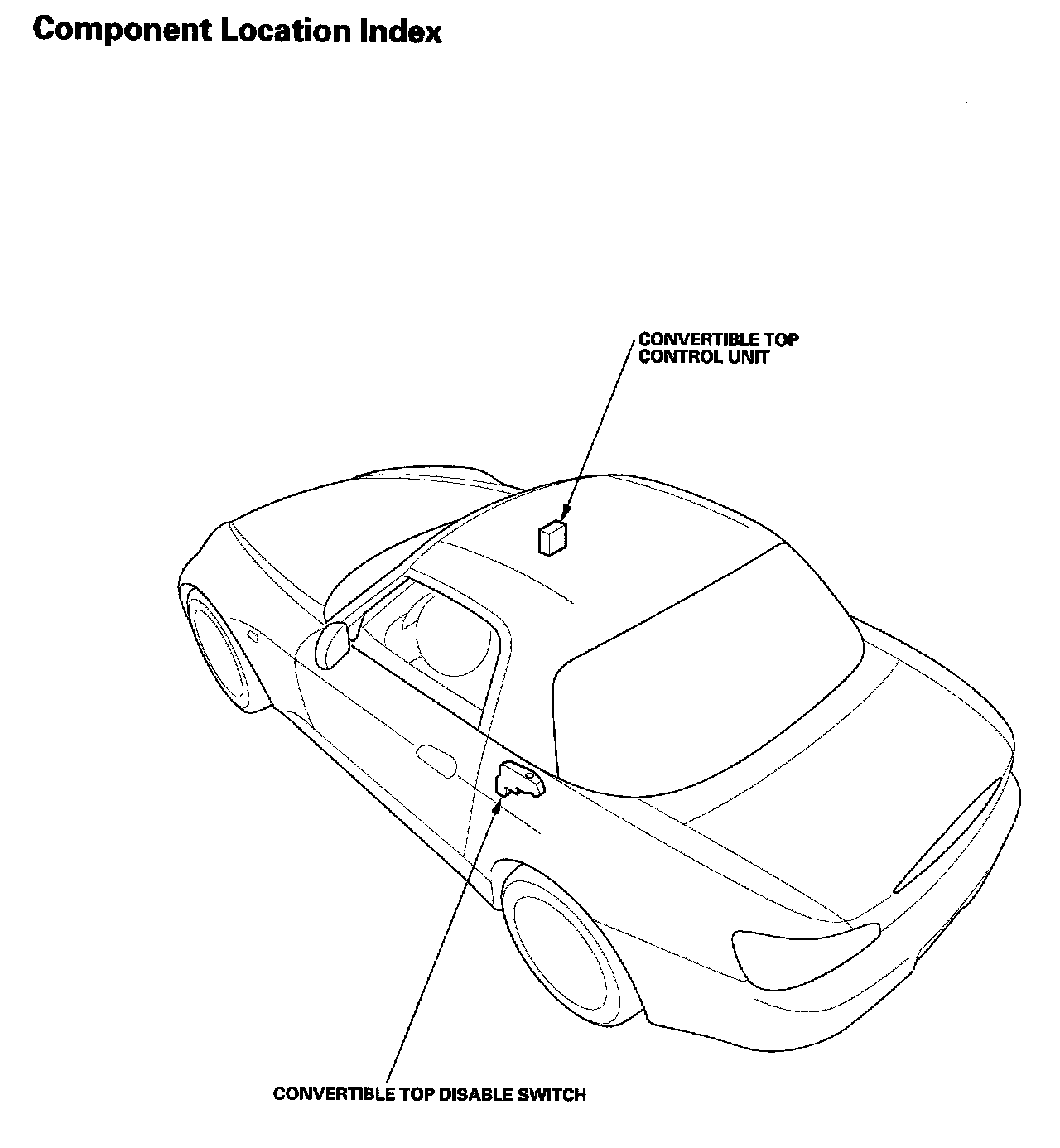

Removable Hardtop - Component Location Index:

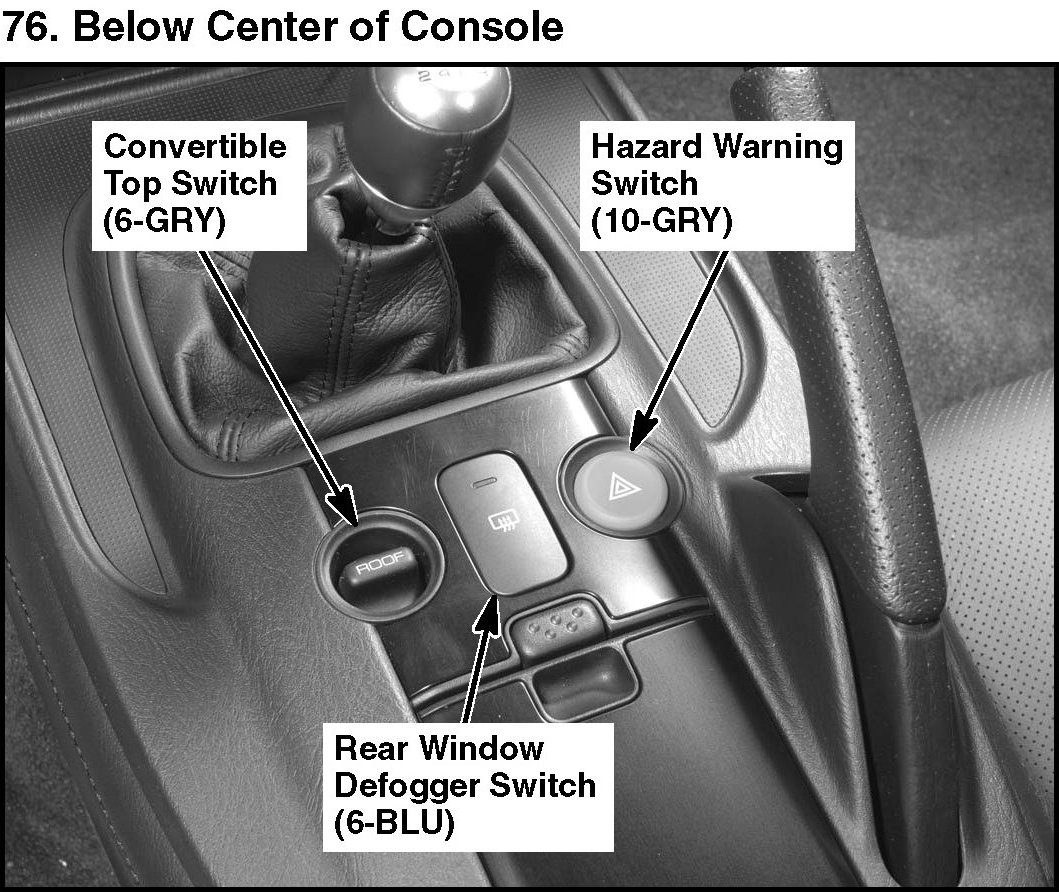

76. Below Center Of Console:

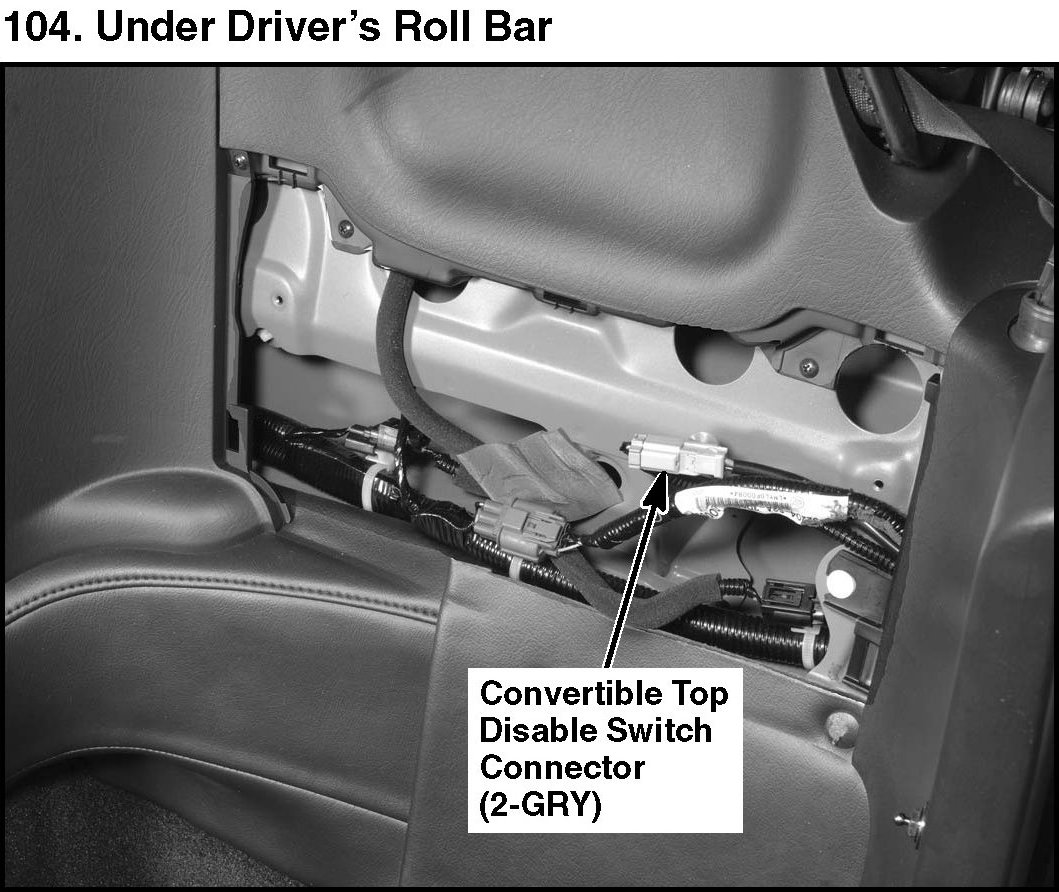

104. Under Driver's Roll Bar:
