Home >> Honda >> 2006 >> S2000 L4-2.2L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Sensors and Switches - Instrument Panel >> Door Switch >> Locations

Door Switch: Locations

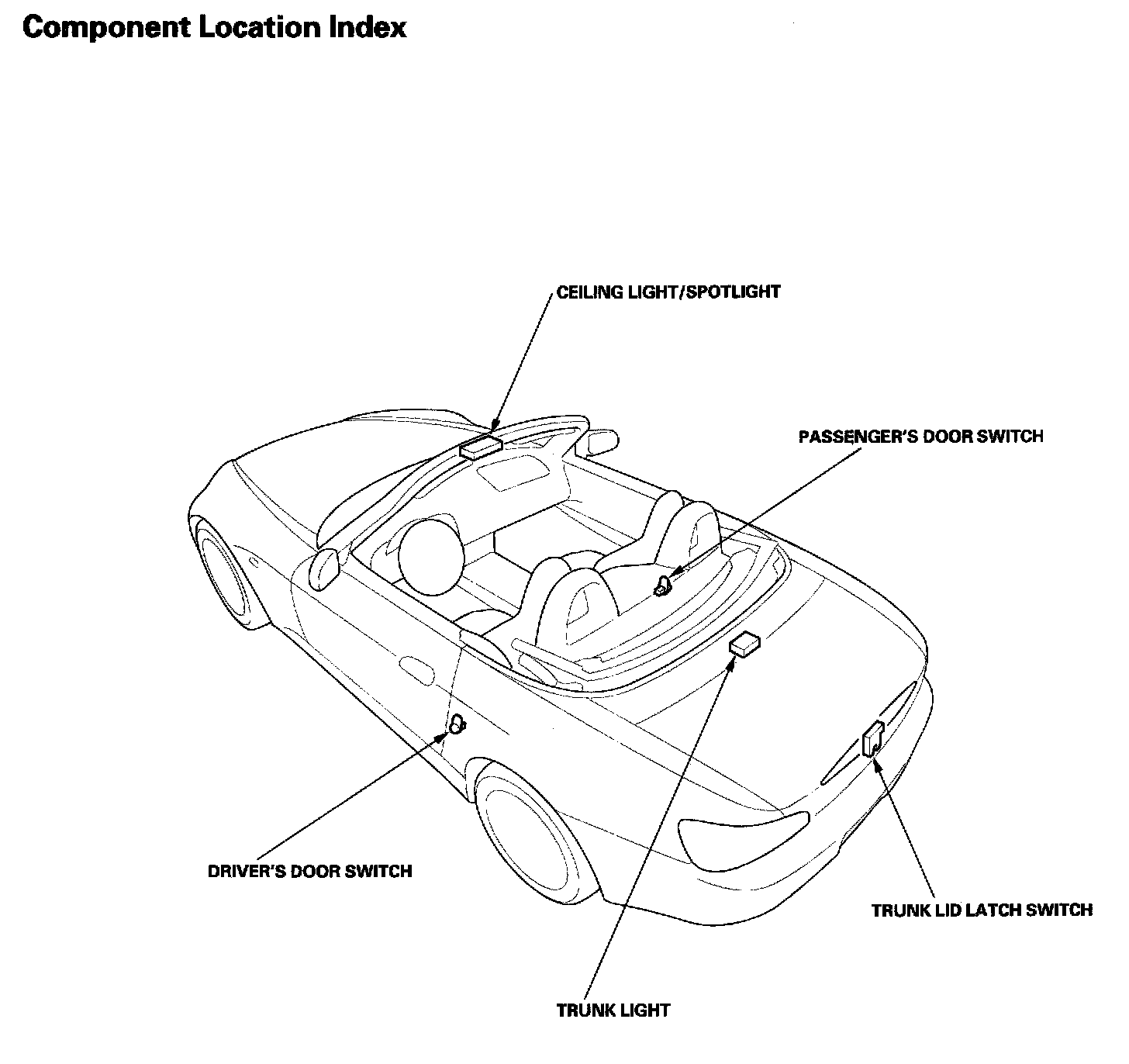

Interior Lights - Component Location Index:

Keyless/Power Door Lock System - Component Location Index:

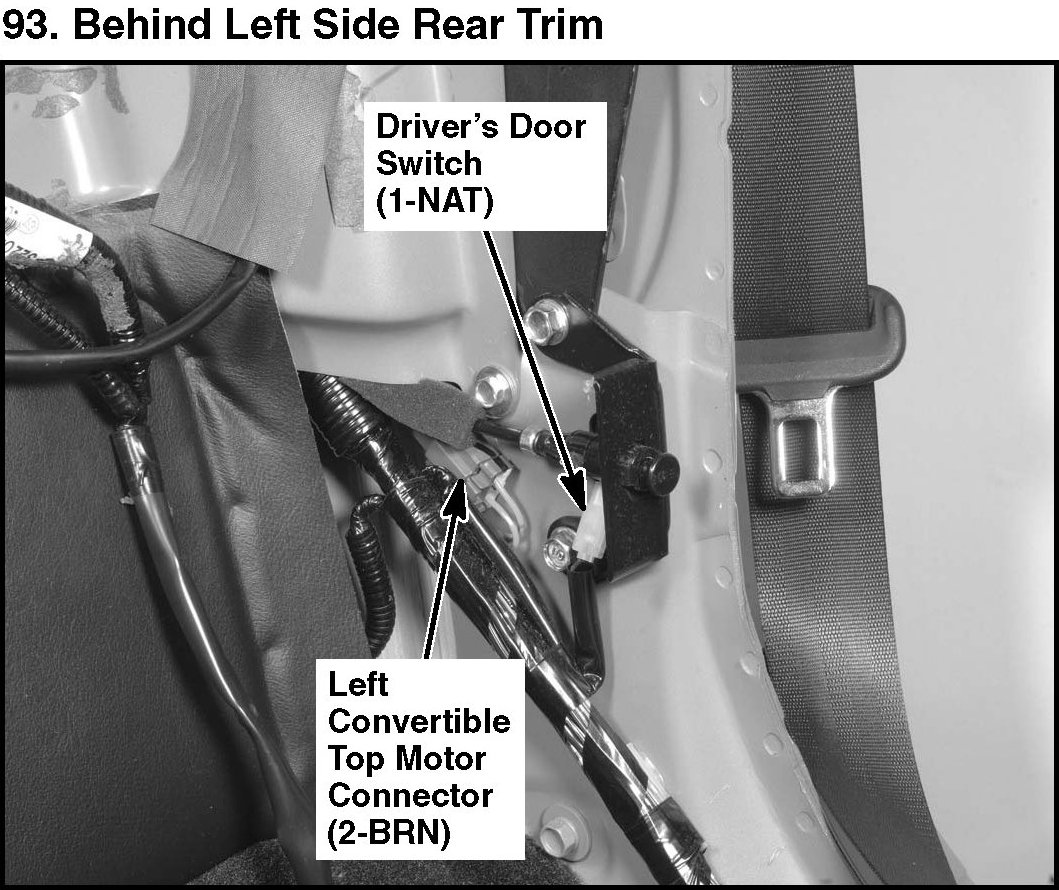

93. Behind Left Side Rear Trim:

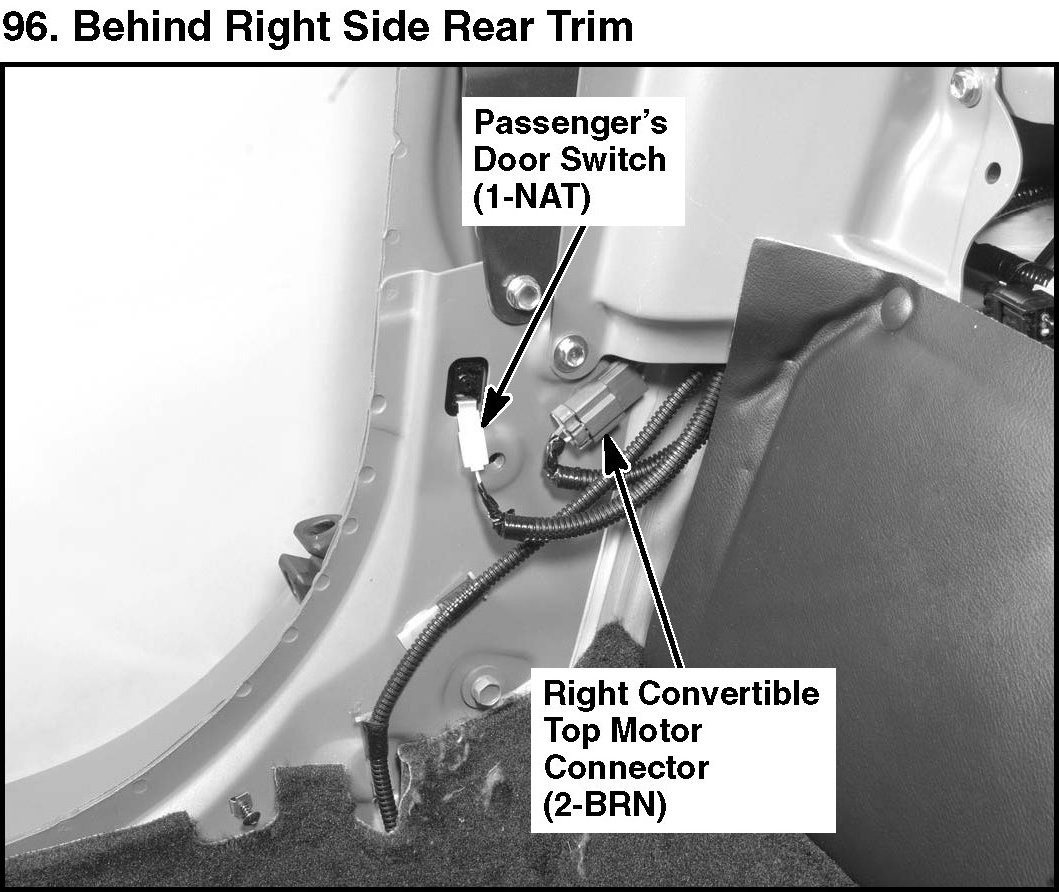

96. Behind Right Side Rear Trim:
