Dashboard Wire Harness B (Left Branch)
Dashboard Wire Harness B (Left Branch)

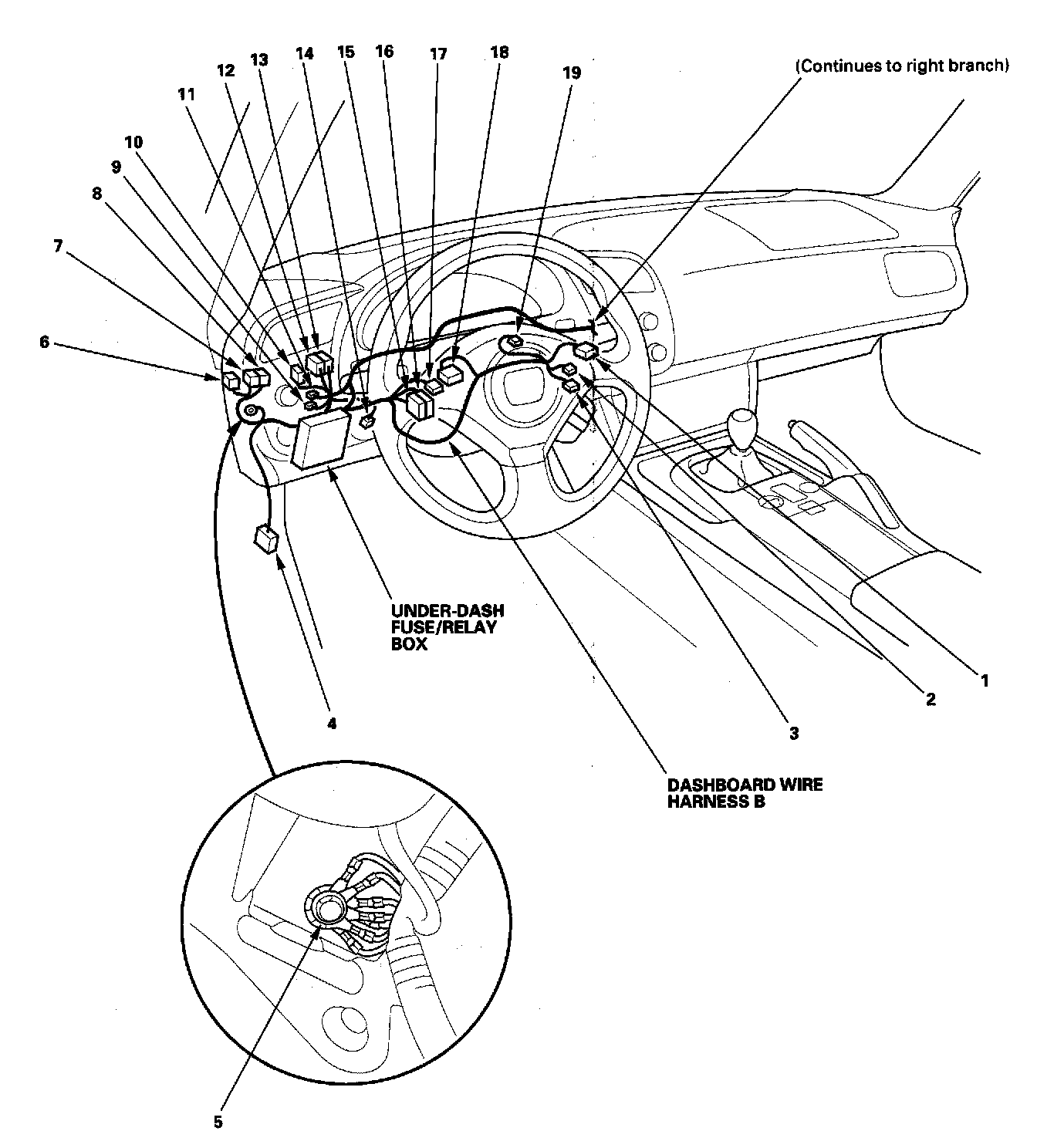

Harness Location View:

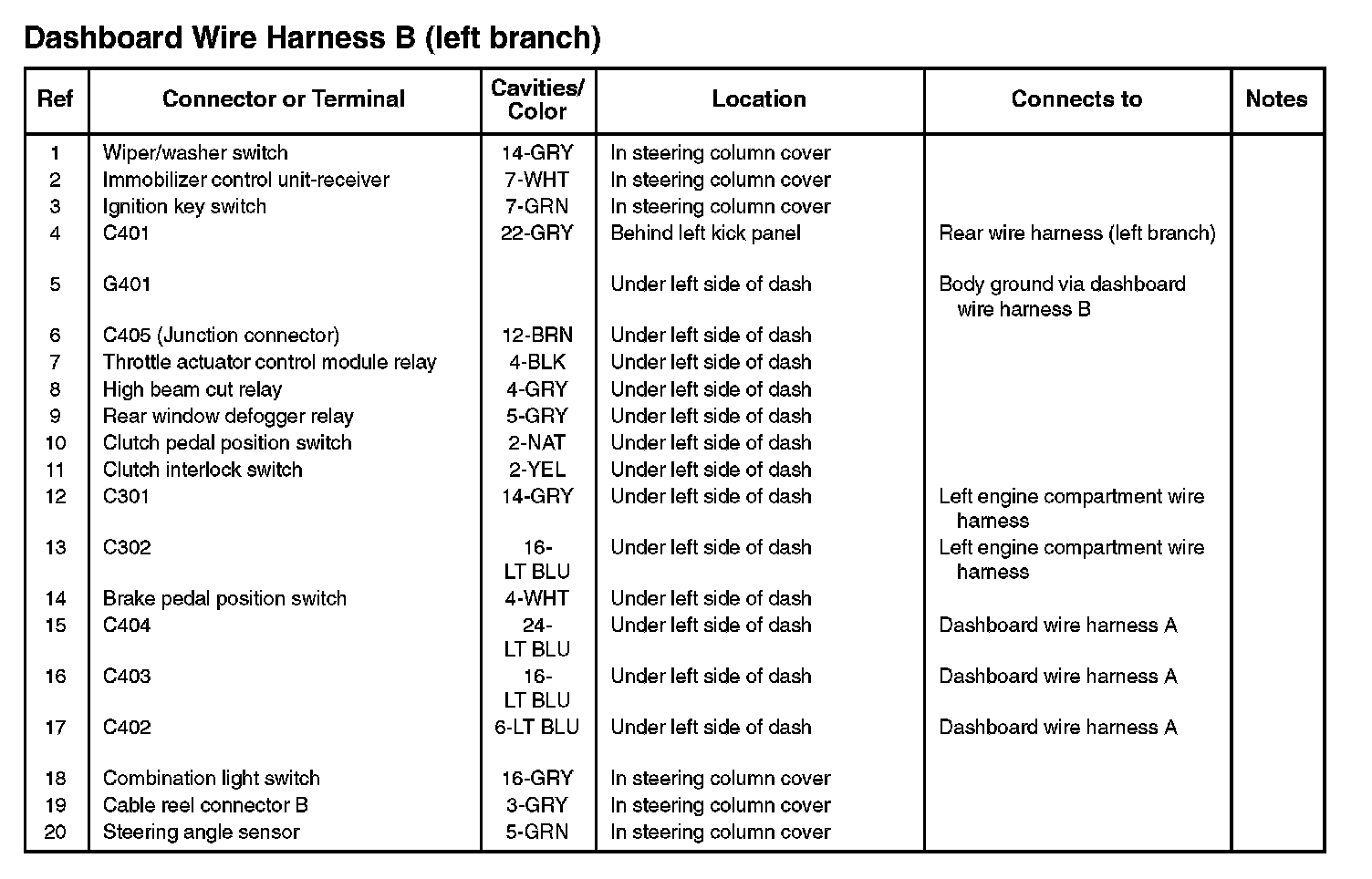

Dashboard Wire Harness B (Left Branch):

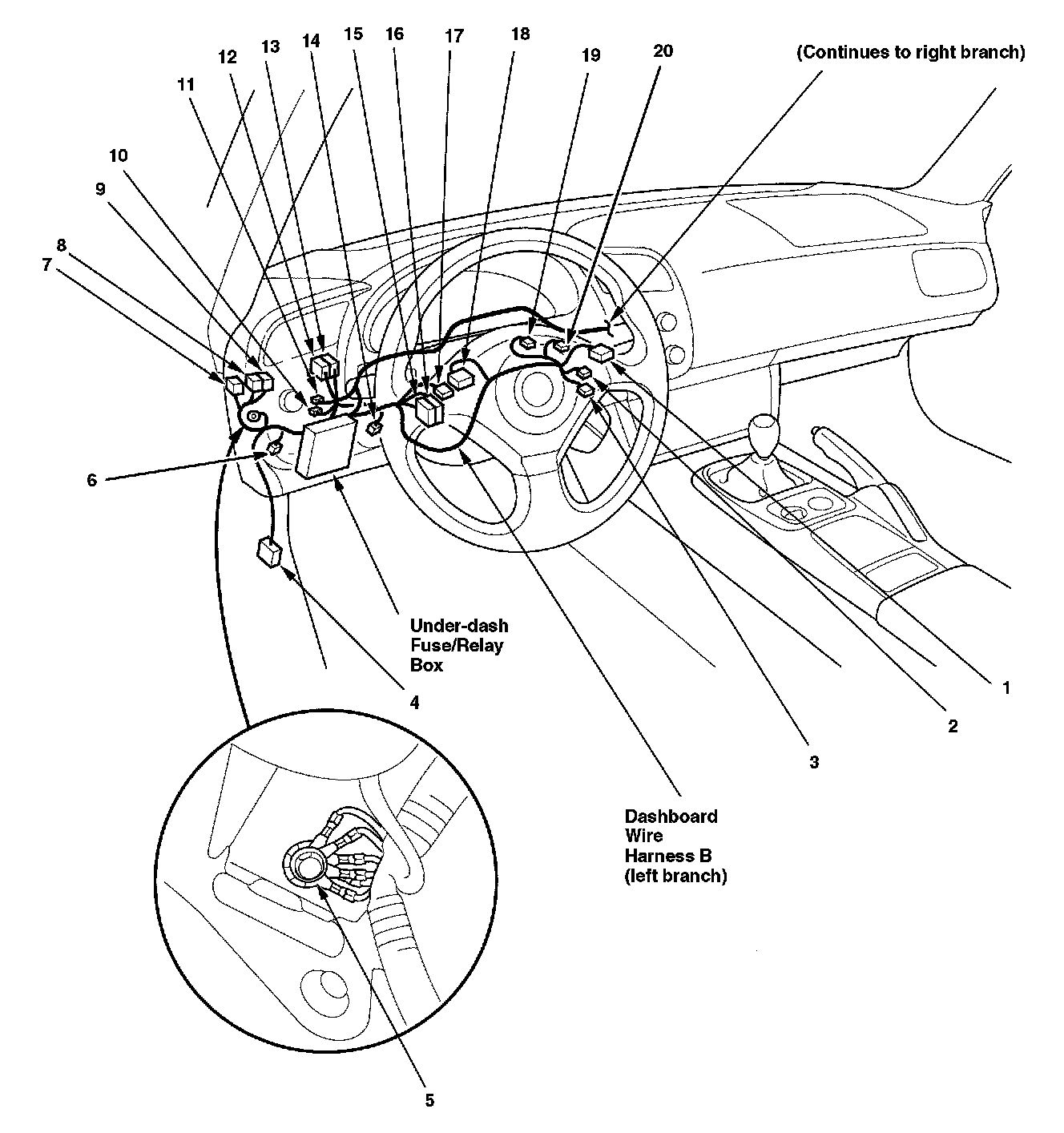

Harness Location View:

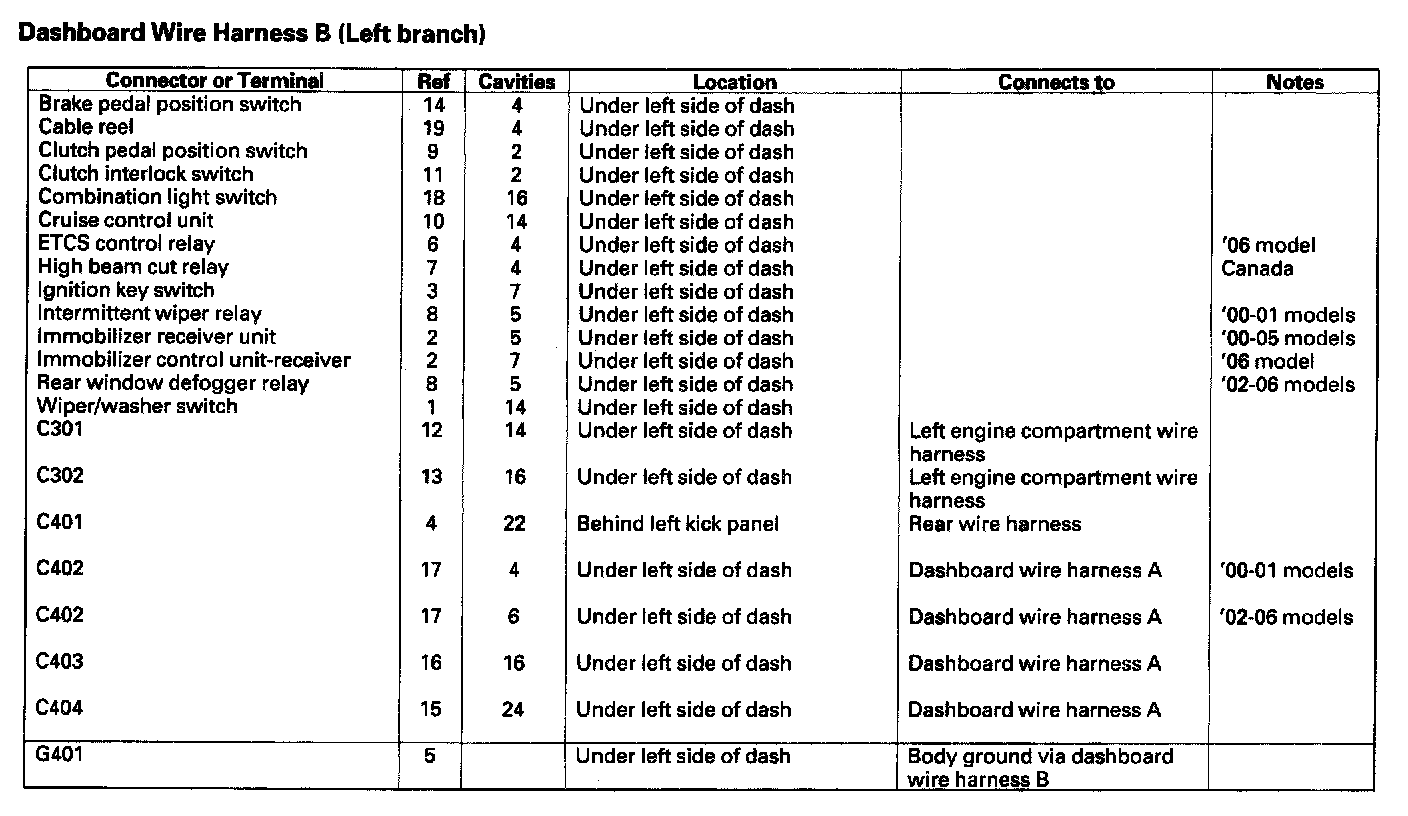

Dashboard Wire Harness B (Left Branch):
