Component Location Index

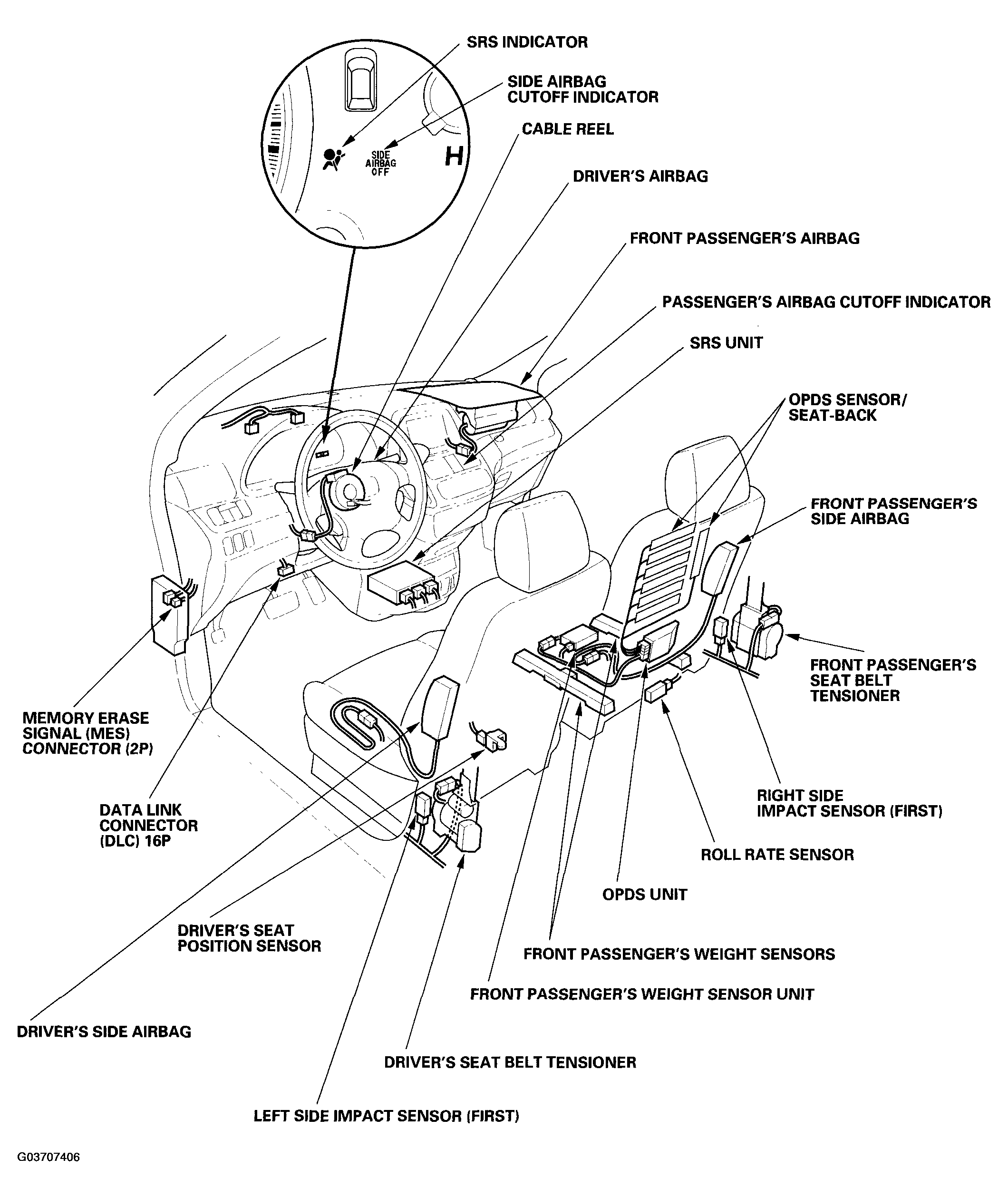

Fig 1: Identifying SRS Components Location (1 Of 2)
G03707406Courtesy of AMERICAN HONDA MOTOR CO., INC.

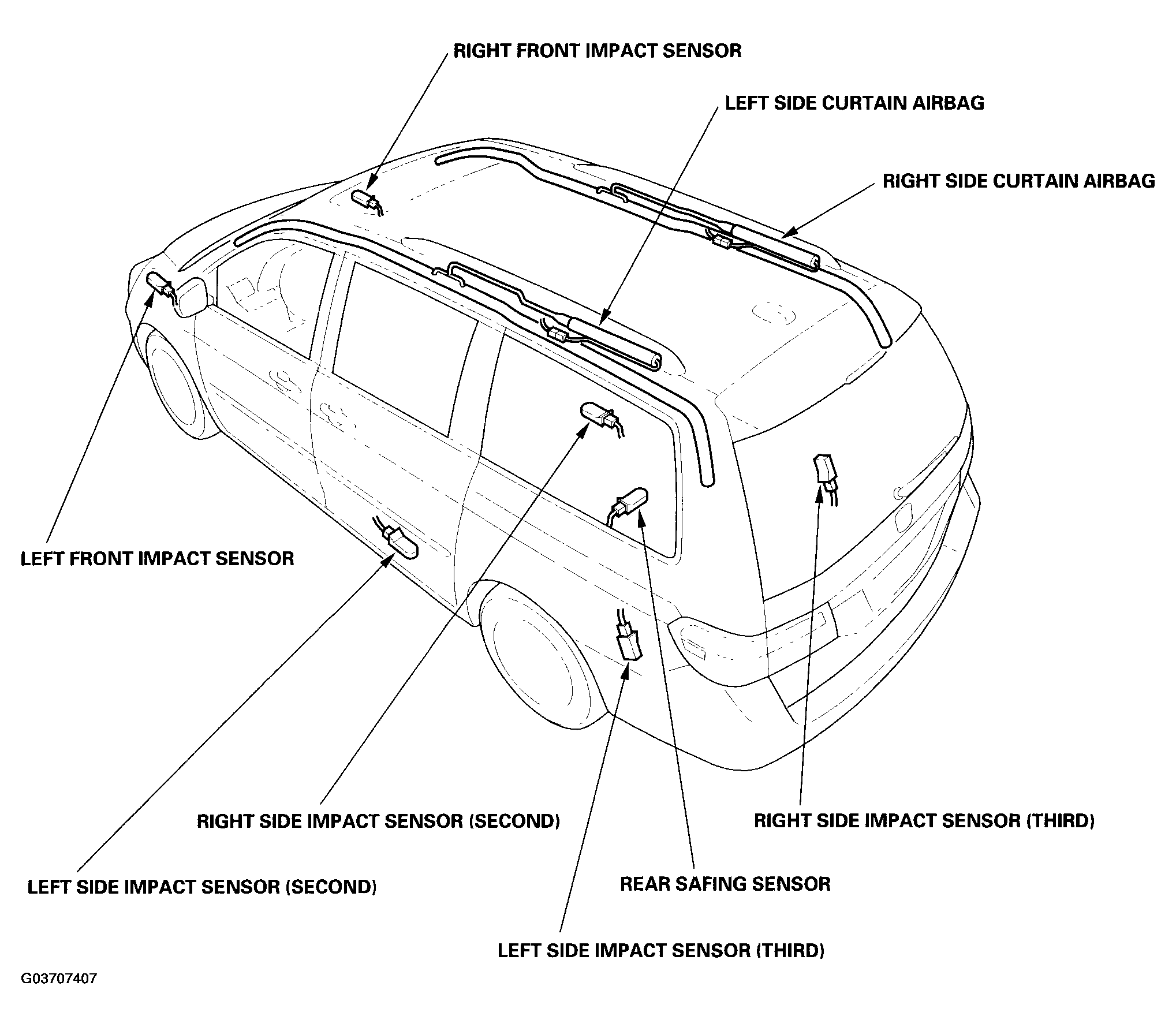

Fig 2: Identifying SRS Components Location (2 Of 2)
G03707407Courtesy of AMERICAN HONDA MOTOR CO., INC.
