Fuel Pump/Fuel Gauge Sending Unit Replacement

Special Tools Required

Fuel sender wrench 07AAA-S0XA100

1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING  ).
2. Remove the fuel fill cap.
3. Remove the second row seat.
4. Remove the access panel (A) from the floor.

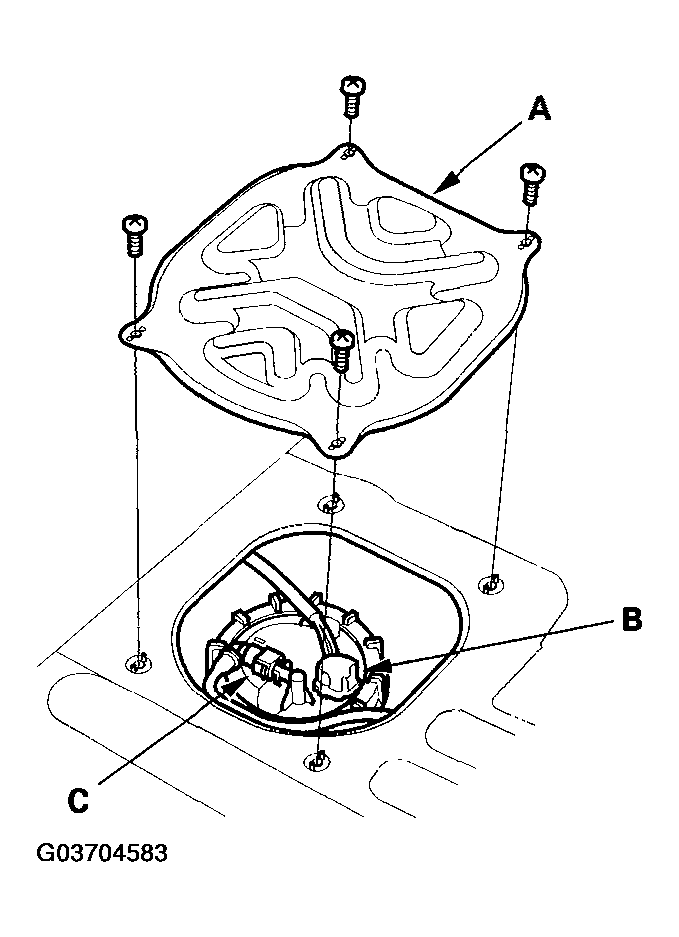

   Fig 1: Removing Access Panel From Floor

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Disconnect the fuel pump 5P connector (B).
6. Disconnect the quick-connect fitting (C) from the fuel tank unit.
7. Using the special tool, loosen the locknut (A).
   Fig 2: Loosening Locknut Using Special Tool

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the locknut (A) and the fuel tank unit.

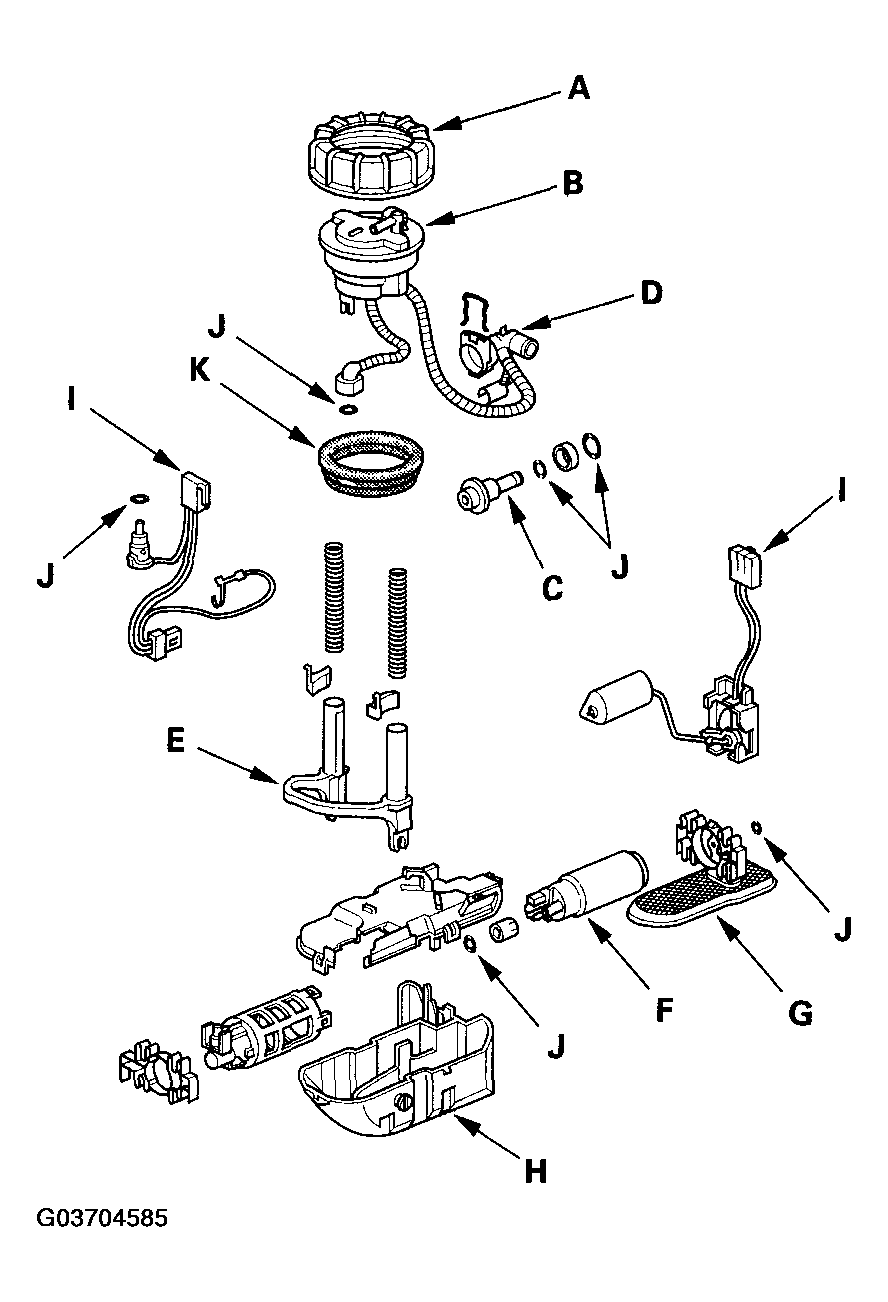

   Fig 3: Removing Locknut And Fuel Tank Unit

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Remove the fuel filter (B), fuel pressure regulator (C), pressure regulator bracket (D) and linkage (E).
10. Remove the fuel pump (F) and suction filter (G) from the reservoir (H).
11. When installing the fuel pump, make sure the connection is secure and the suction filter is firmly connected to the fuel pump.
12. Check these items before installing the fuel tank unit:
    • When connecting the wire harness, make sure the connection is secure and the connectors (I) are firmly locked into place.
    • When installing the fuel gauge sending unit make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively.
13. Install the parts in the reverse order of removal with new O-rings (J) a new base gasket (K), and a new locknut.
    NOTE: After installation, check the base gasket visually or by hand to be sure the gasket is not pinched.
