Upper Glove Box Pocket Removal/Installation

NOTE: Take care not to scratch the upper glove box and related parts.
  1. Remove the steering hanger beam (see DASHBOARD/STEERING HANGER BEAM DISASSEMBLY/REASSEMBLY  ).
  2. Remove the lower glove box striker (see LOWER GLOVE BOX STRIKER REMOVAL/INSTALLATION  ).
  3. Remove the screws (A) and upper glove box lid striker (B), then remove the screws (C) and upper glove box pocket (D).

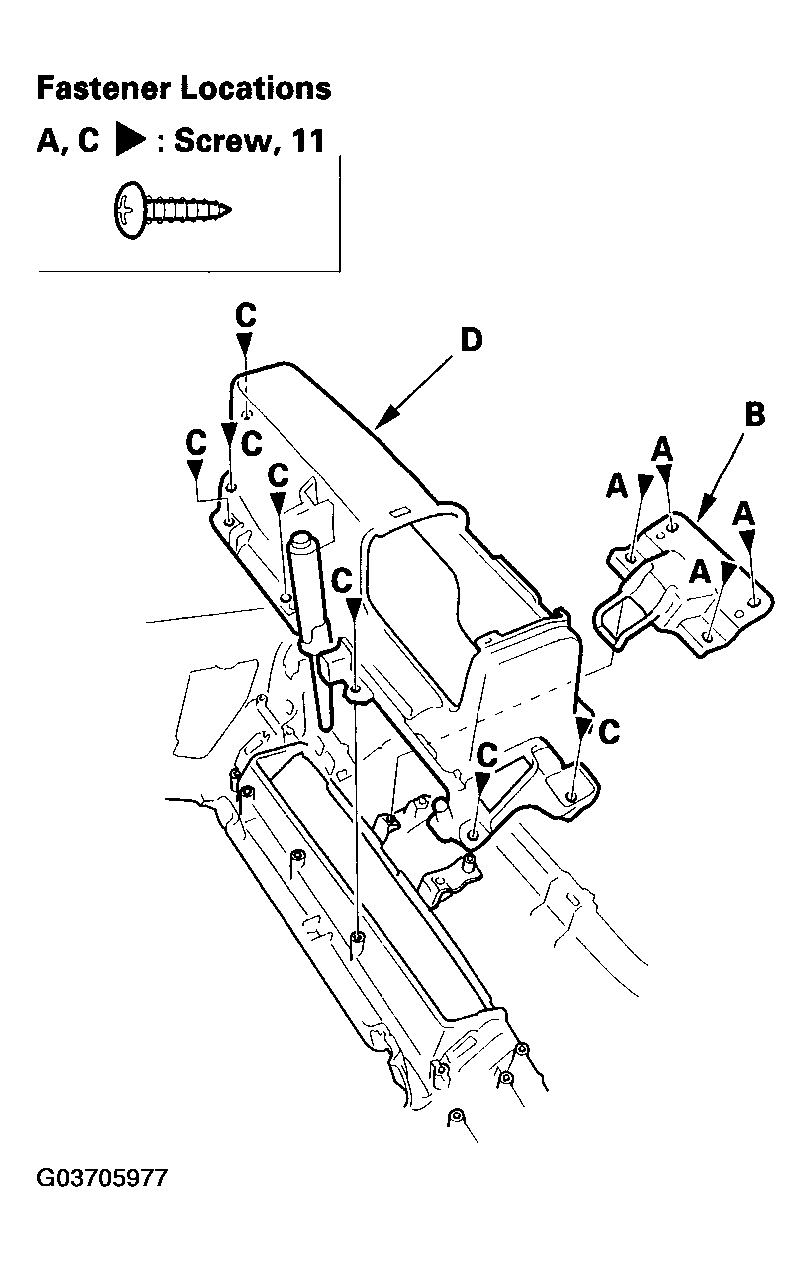

    Fig 1: Removing Upper Glove Box Lid Striker & Box Pocket
    G03705977Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the pocket in the reverse order of removal.
