Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Take care not to scratch the glove box and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Remove the lower glove box (see LOWER GLOVE BOX REMOVAL/INSTALLATION ).

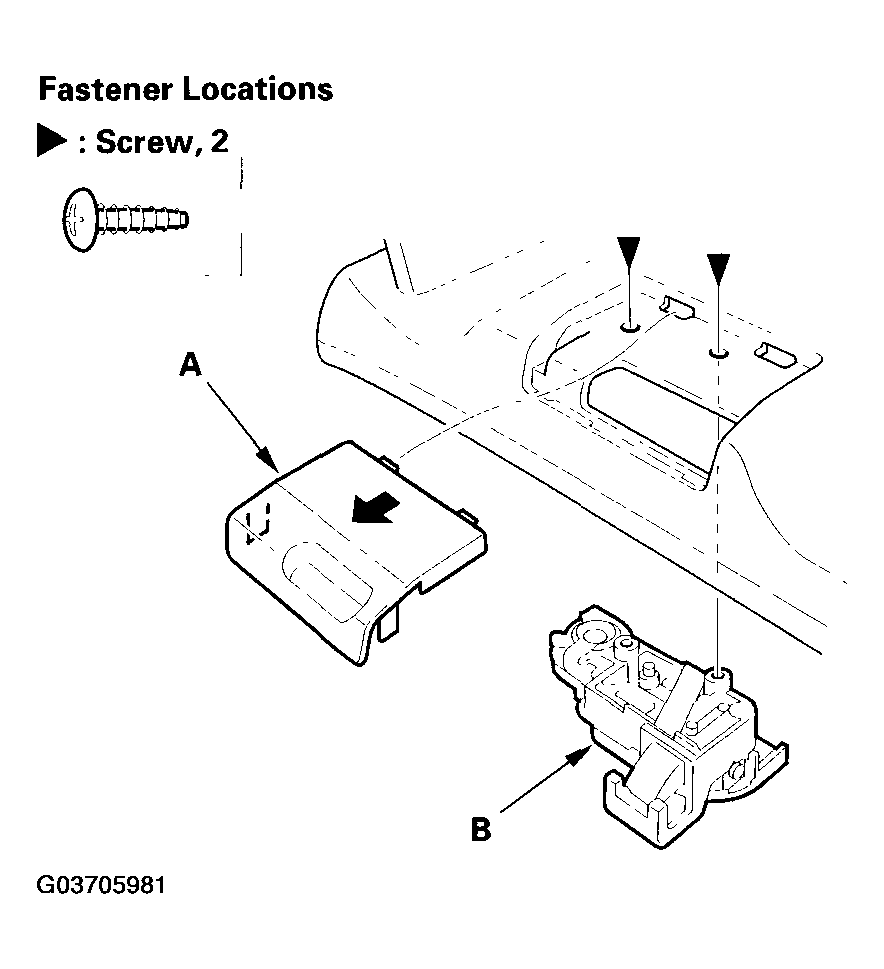

Remove the lid (A), remove the screws, and remove the lock handle (B).

Fig 1: Removing Lock Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

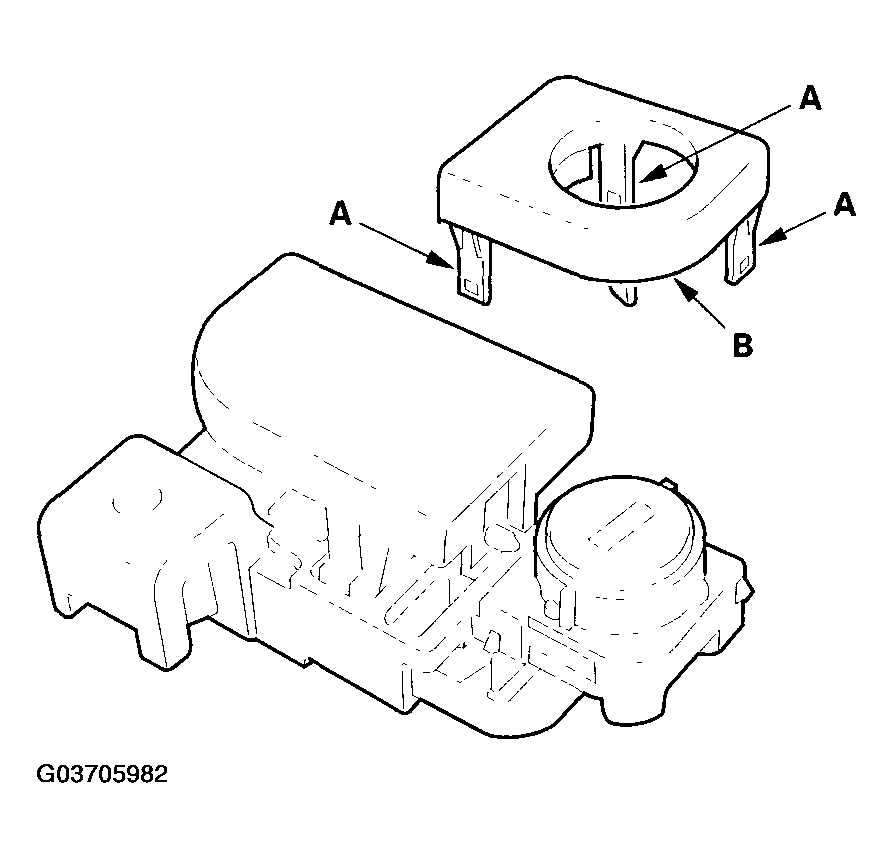

Release the hooks (A), then remove the lock cylinder cover (B).

Fig 2: Removing Lock Cylinder Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

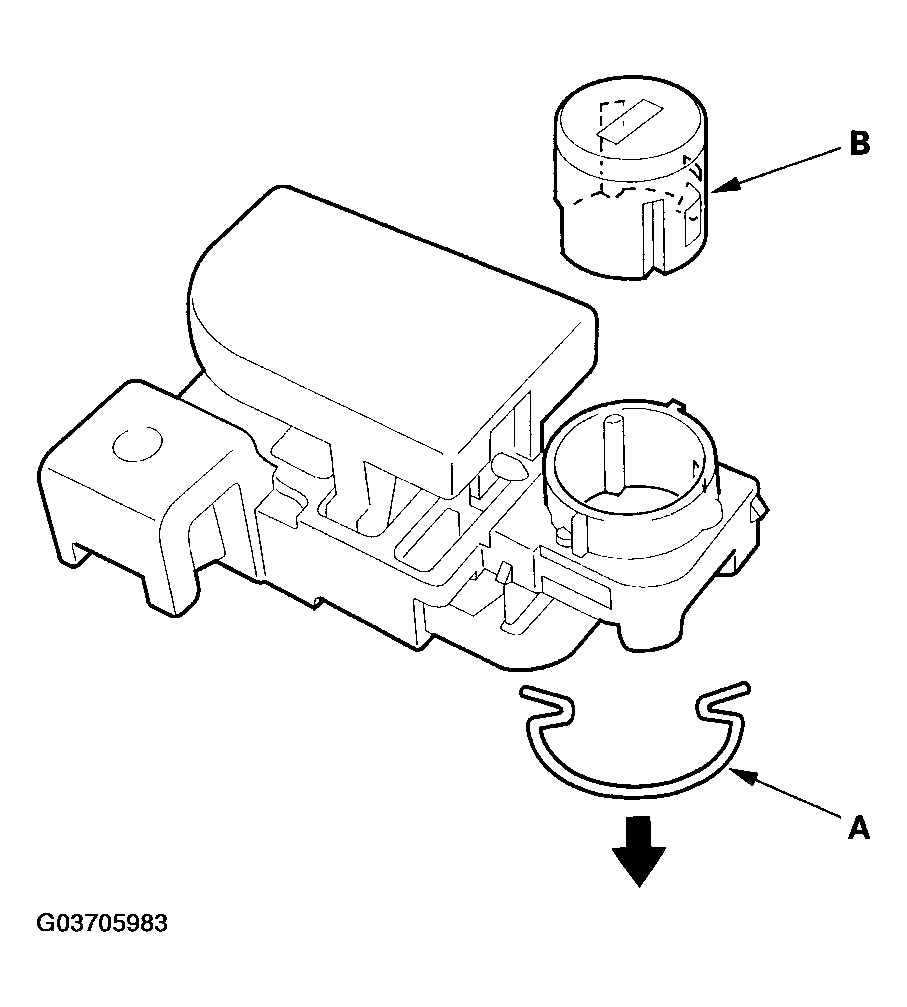

Using a trim tool, release the retainer (A) and lock cylinder (B).
NOTE: Wear eye protection during this step.

Fig 3: Releasing Retainer And Lock Cylinder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the retainer into the lock body, then push the lock cylinder into the lock cylinder body until it snaps into the retainer.
Install the lock and lock handle in the reverse order of removal.
