Spoiler: Service and Repair

Hatch Spoiler Trim Replacement

NOTE:
- Take care not to scratch the body.
- Put on gloves to protect your hands.
- Use a T30 Torx bit to remove the bolts.

1. Remove these items:
- Hatch trim panel
- Rear wiper motor

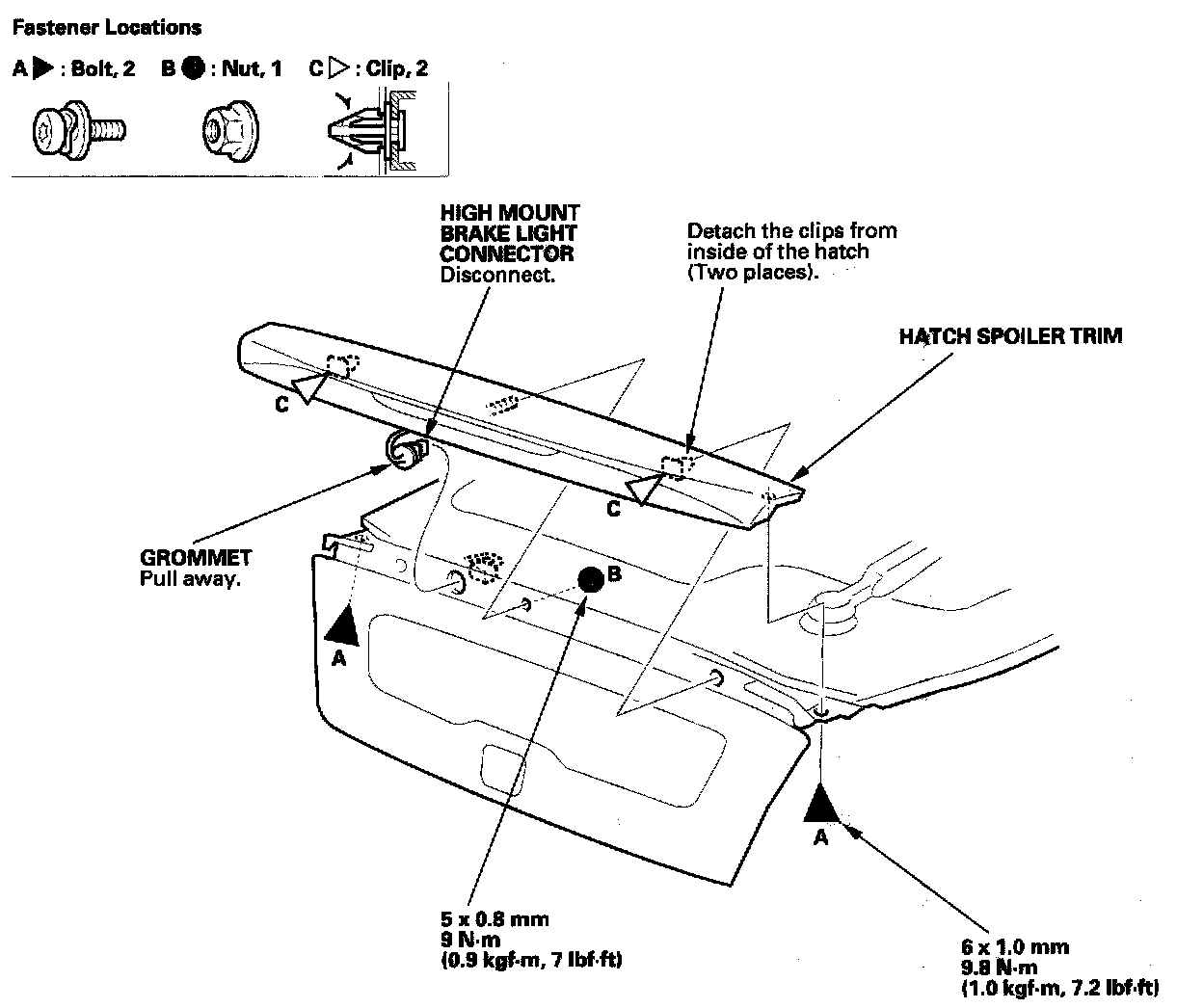

2. Remove the hatch spoiler trim as shown.




3. Install the trim in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Make sure the connector is plugged in properly.
- Push the clips into place securely.
