Refinishing Processes

Refinishing Processes

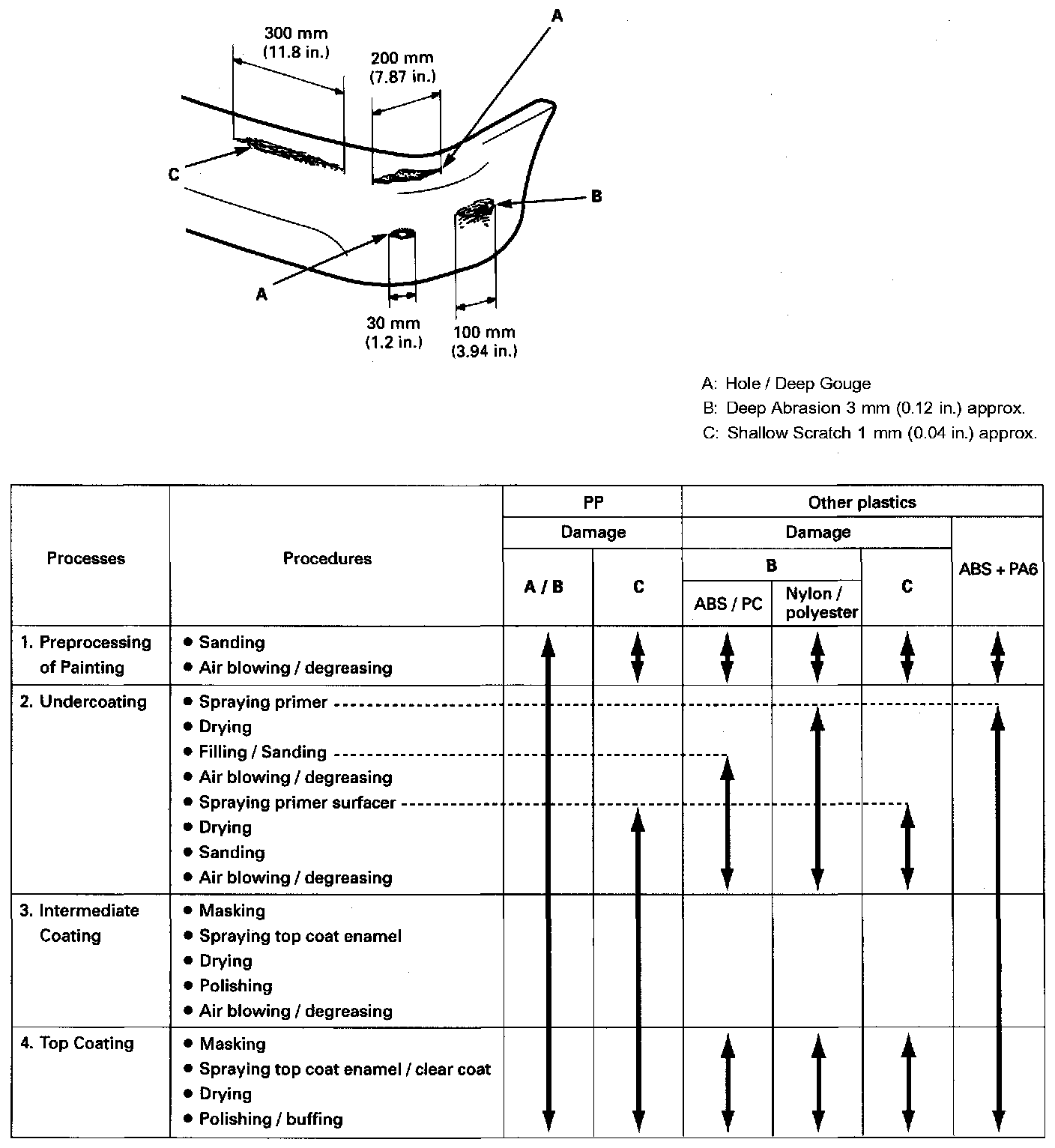

- The illustration shows refinishing methods to various types of paint damage or defects.
- Be careful not to deform and damage the parts when force drying.
