Trim Removal/Installation - Door Areas
Trim Removal/Installation - Door AreasSpecial Tools Required
KTC trim tool set SOJATP2014 *
*Available through the American Honda Tool and Equipment Program
NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels.

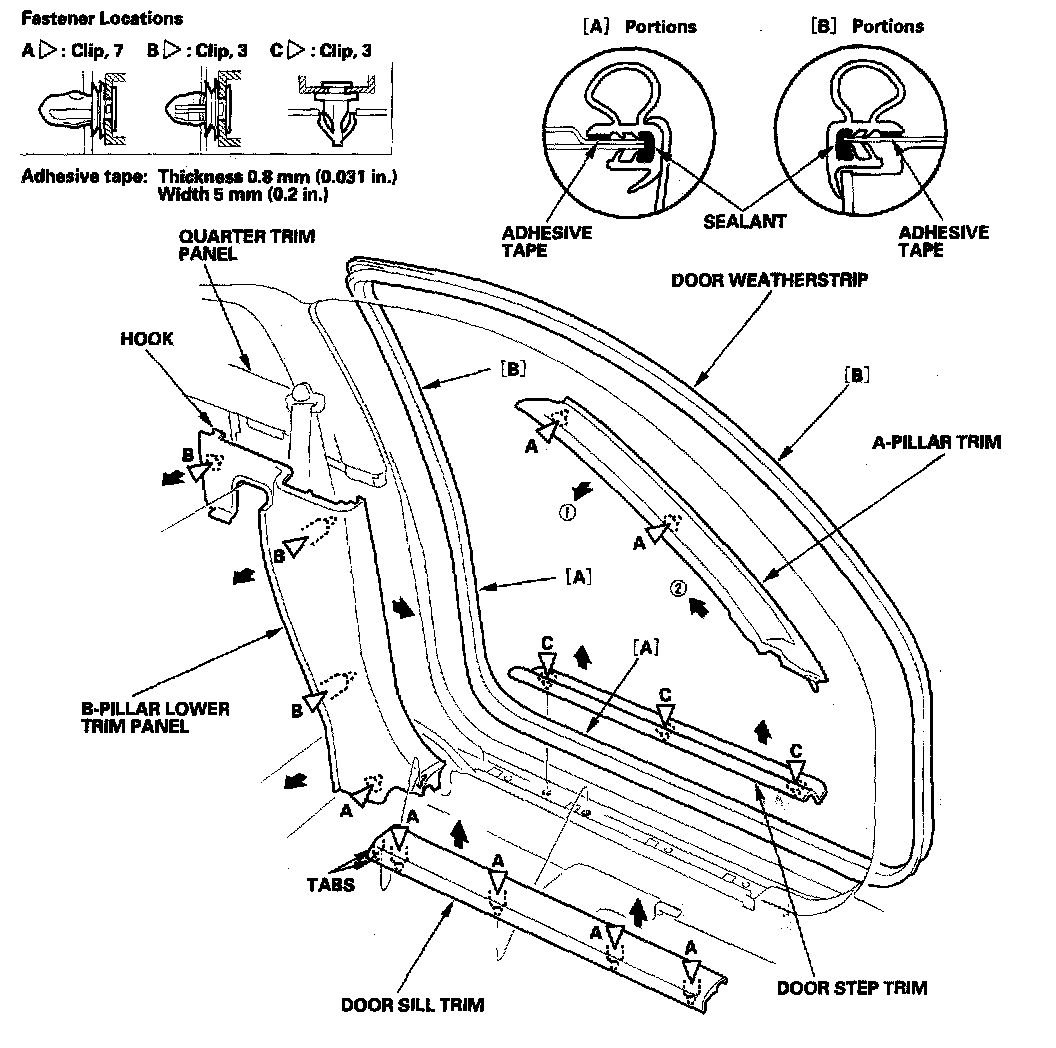

1. Remove the trim as shown. Use the numbered sequence on the A-pillar trim.
2. Install the trim in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Before reinstalling the door weatherstrip, clean the body bonding surface with alcohol.
- Apply clear sealant (Cemedine P/N 08712-0004, or equivalent) into the groove of the door weatherstrip all the way around. Attach the door weatherstrip with sealant and adhesive tape.
- Push the clips into place securely.
