Trim Removal/Installation - Cargo Area
Trim Removal/Installation - Cargo AreaSpecial Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program
NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels.
- Remove the child seat tether anchor.

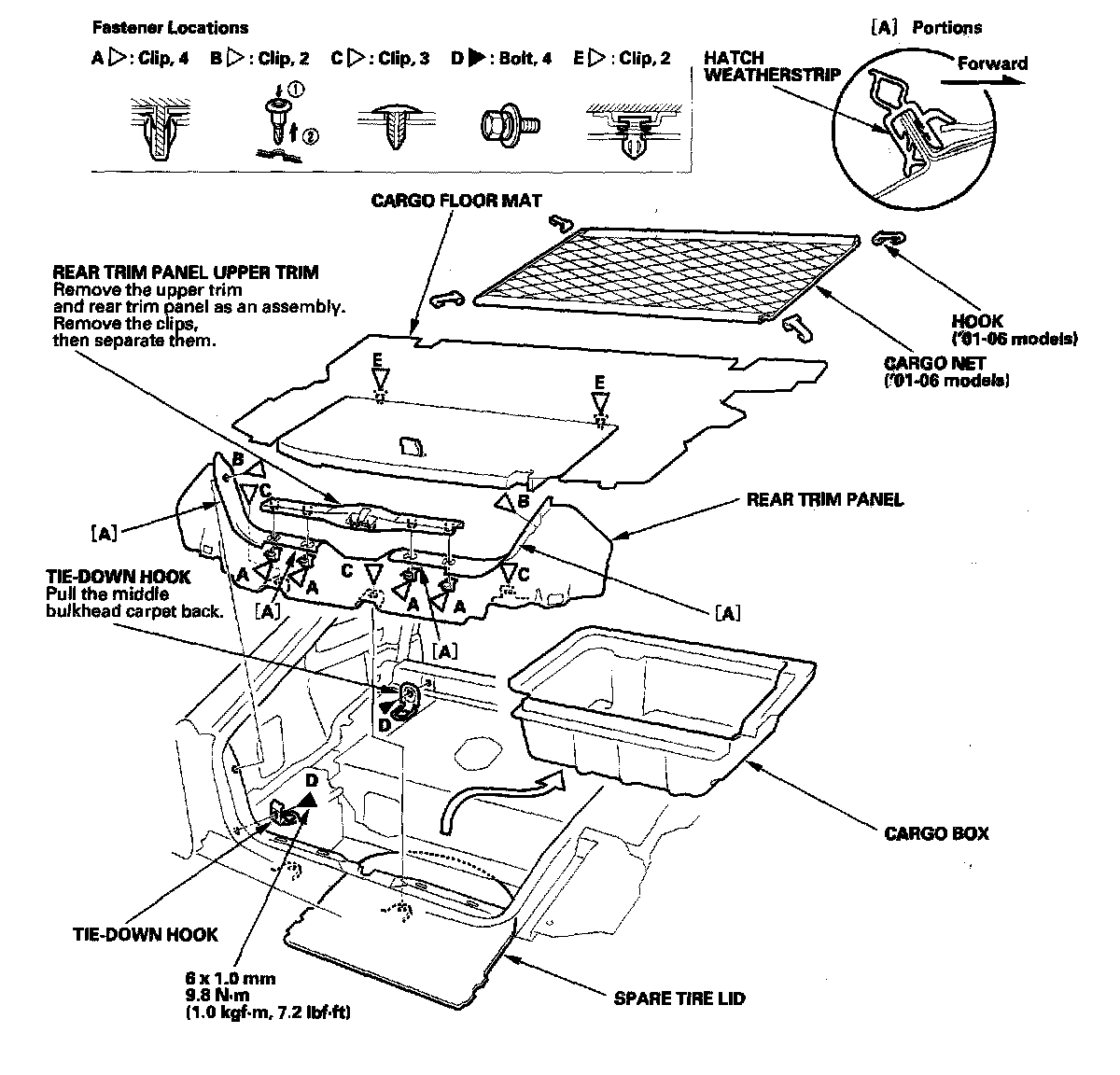

1. Remove the trim as shown.
2. Install the trim in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clips into place securely.
