Cowl Moulding / Trim: Service and Repair

Cowl Cover Replacement

NOTE:
- Take care not to scratch the body.
- Use a clip remover to remove the clips.

1. Remove the windshield wiper arms .

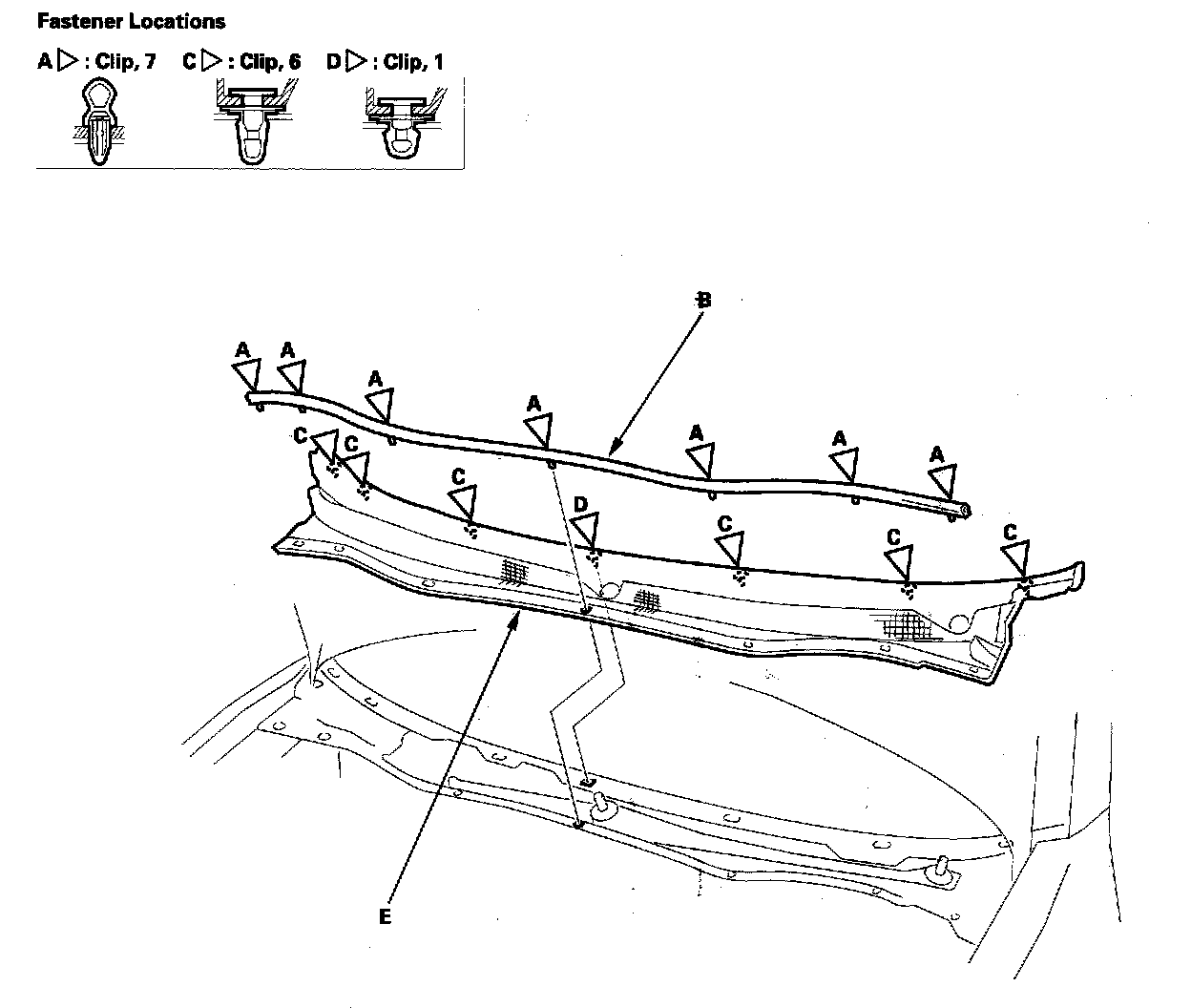

2. Release all the clips (A), and remove the rear hood seal (B).
3. Release all the clips (C, D), and remove the cowl cover (E).

4. Install all removed parts in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clips into place securely.
