Hood Insulator / Pad: Service and Repair

Hood Insulator Replacement

NOTE:
- Take care not to scratch the hood.
- Use a clip remover to remove the clips.

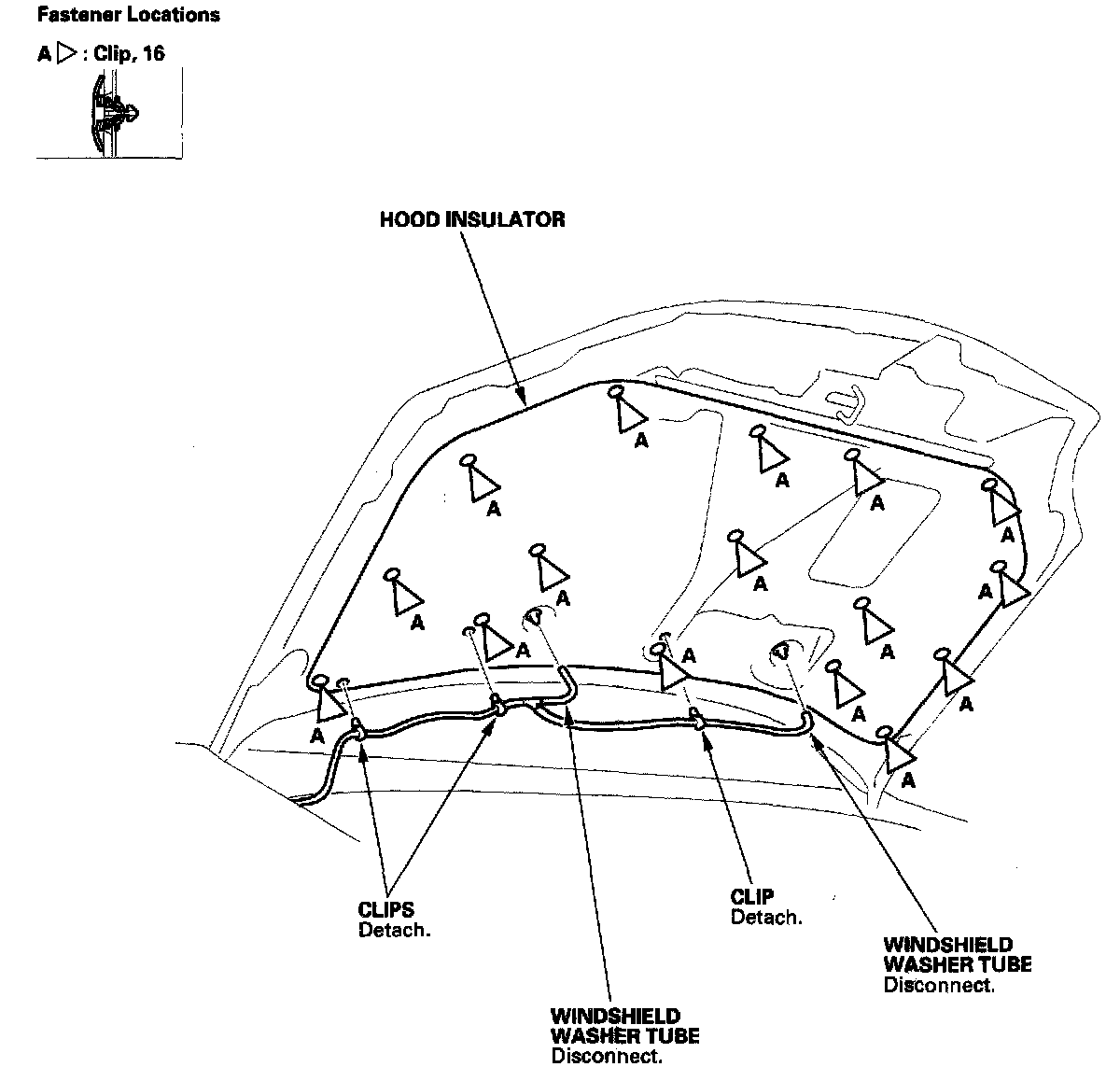

1. Remove the hood insulator as shown.




2. Install the insulator in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clips into place securely.
- Make sure the windshield washer tubes are connected properly.
