Gauges Circuit Diagram

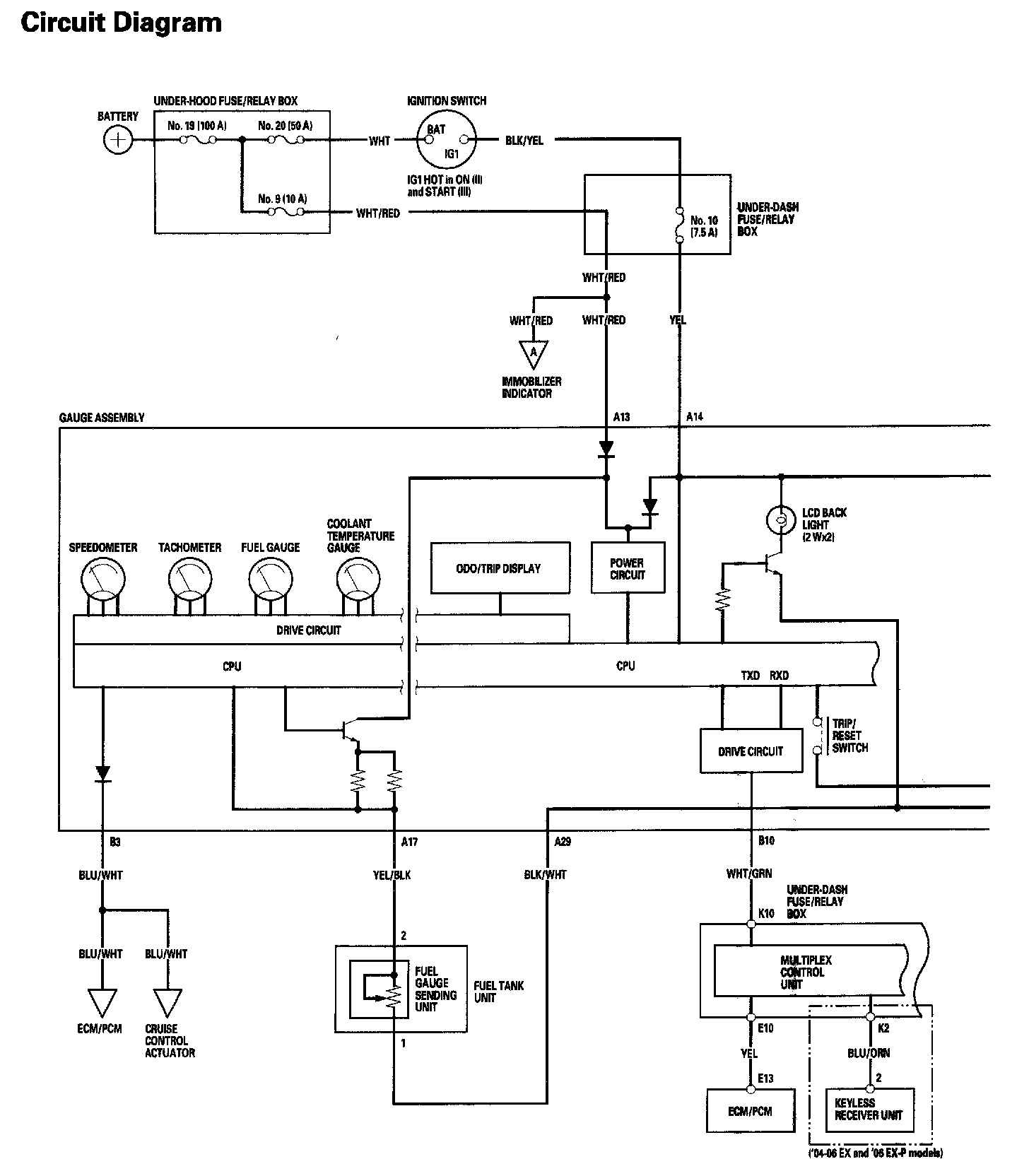

Gauges - Circuit Diagram Part 1:

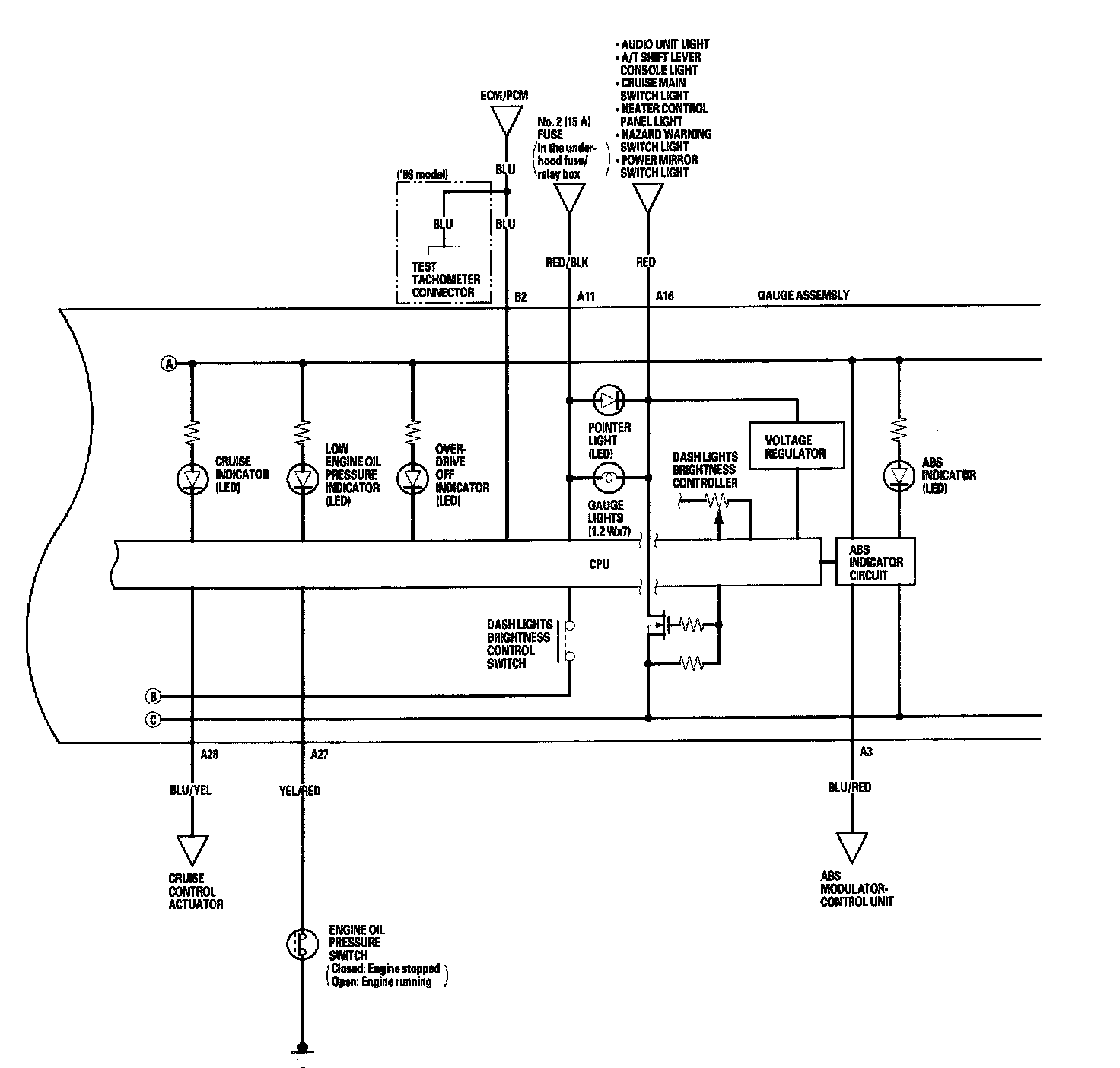

Gauges - Circuit Diagram Part 2:

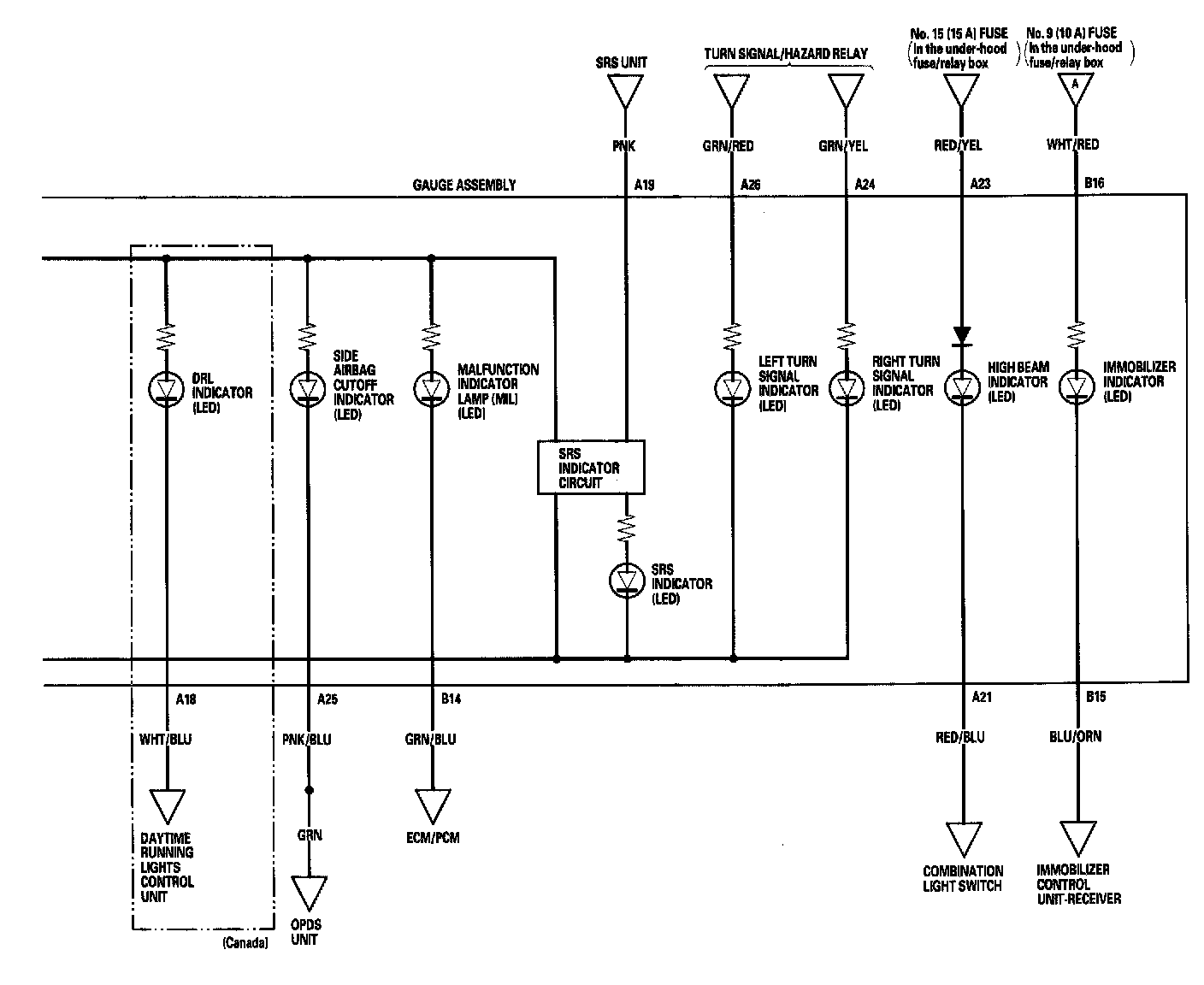

Gauges - Circuit Diagram Part 3:



Gauges - Circuit Diagram Part 4:
