Impact Sensor: Locations

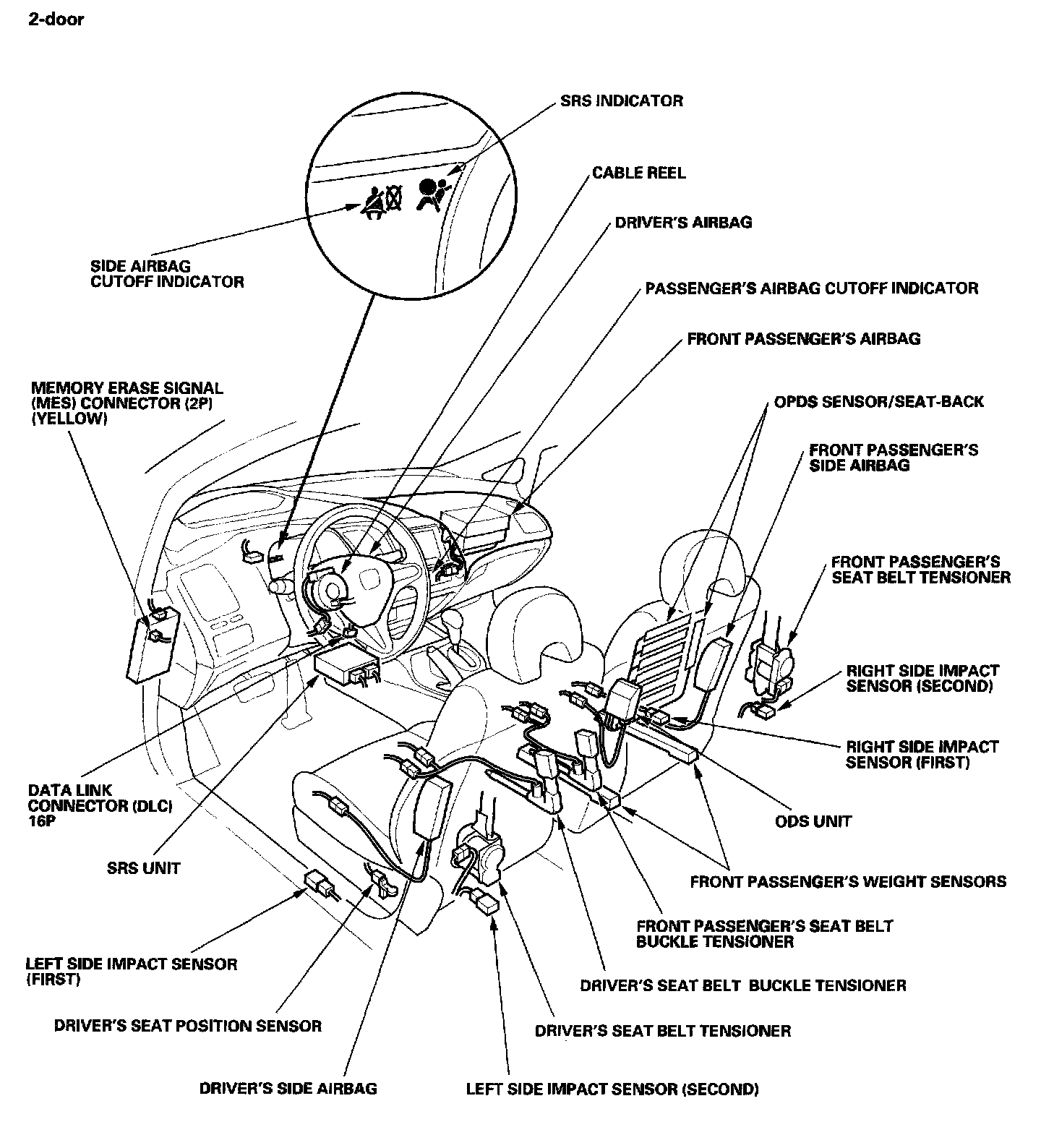

SRS - Component Location Index:

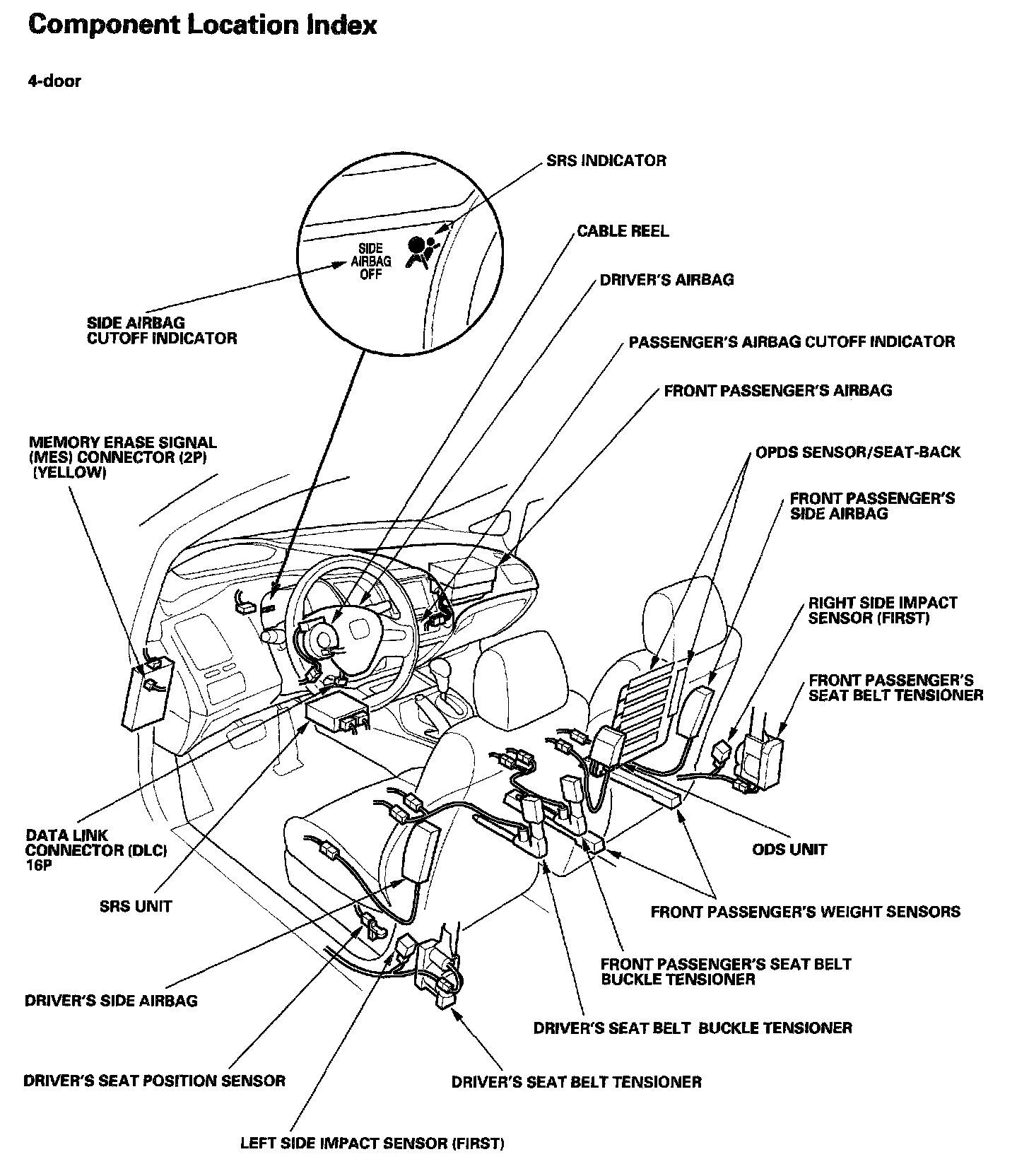

SRS - Component Location Index:

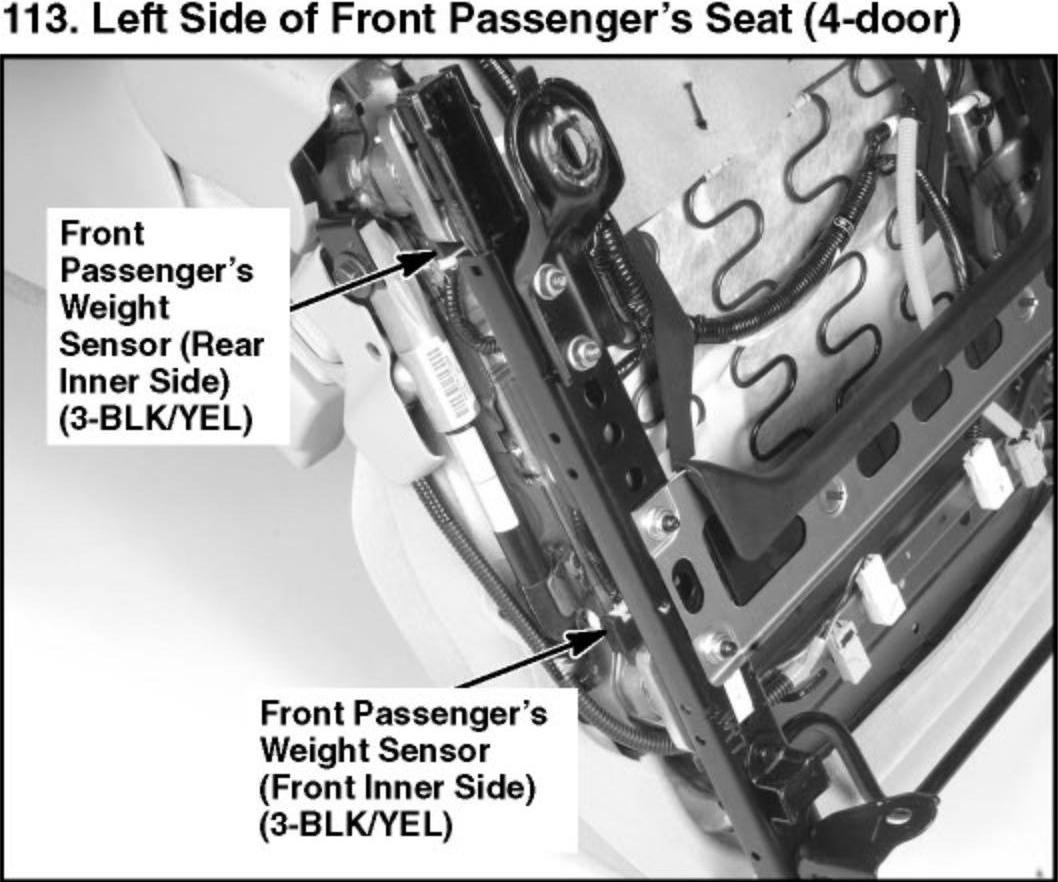

113. Left Side of Front Passenger's Seat (4-door):

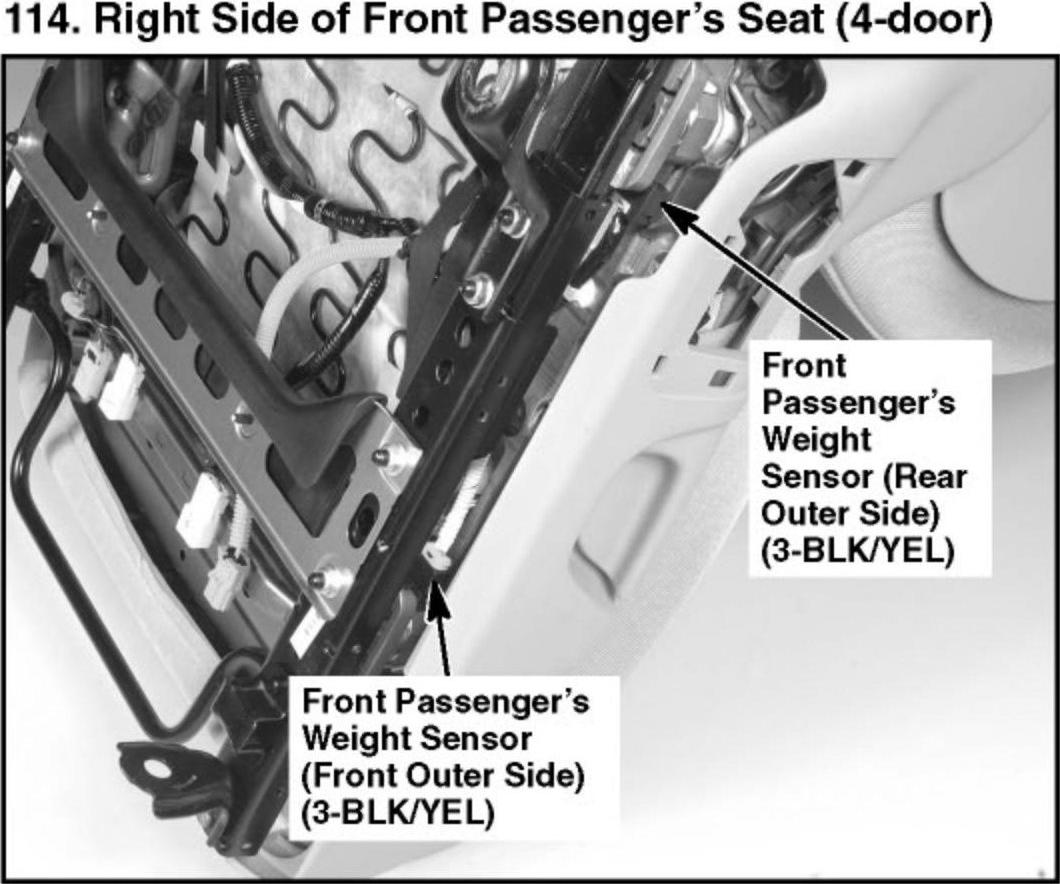

114. Right Side of Front Passenger's Seat (4-door):
