Electric Load Sensor: Locations

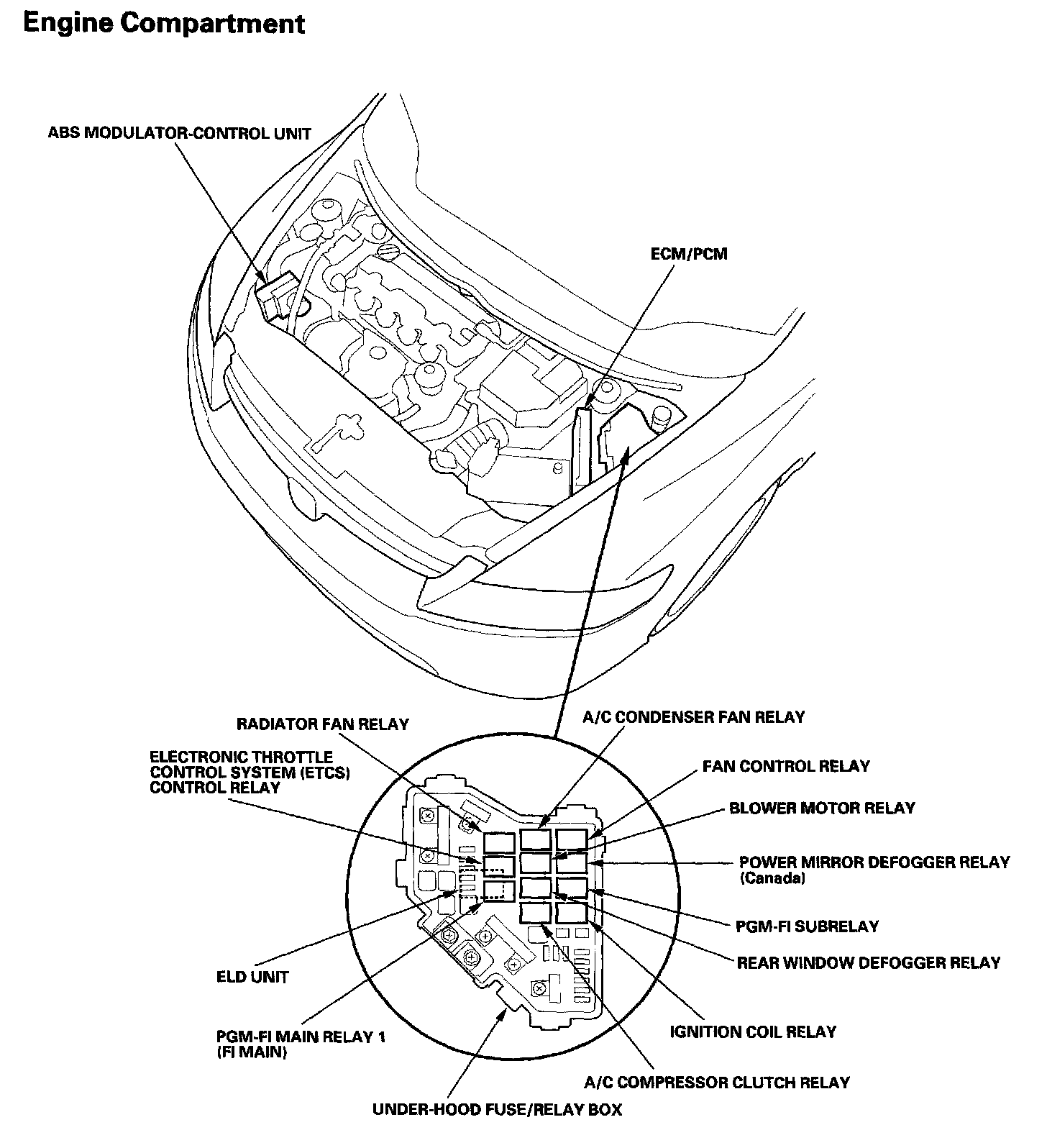

Relay And Control Unit Locations - Engine Compartment:

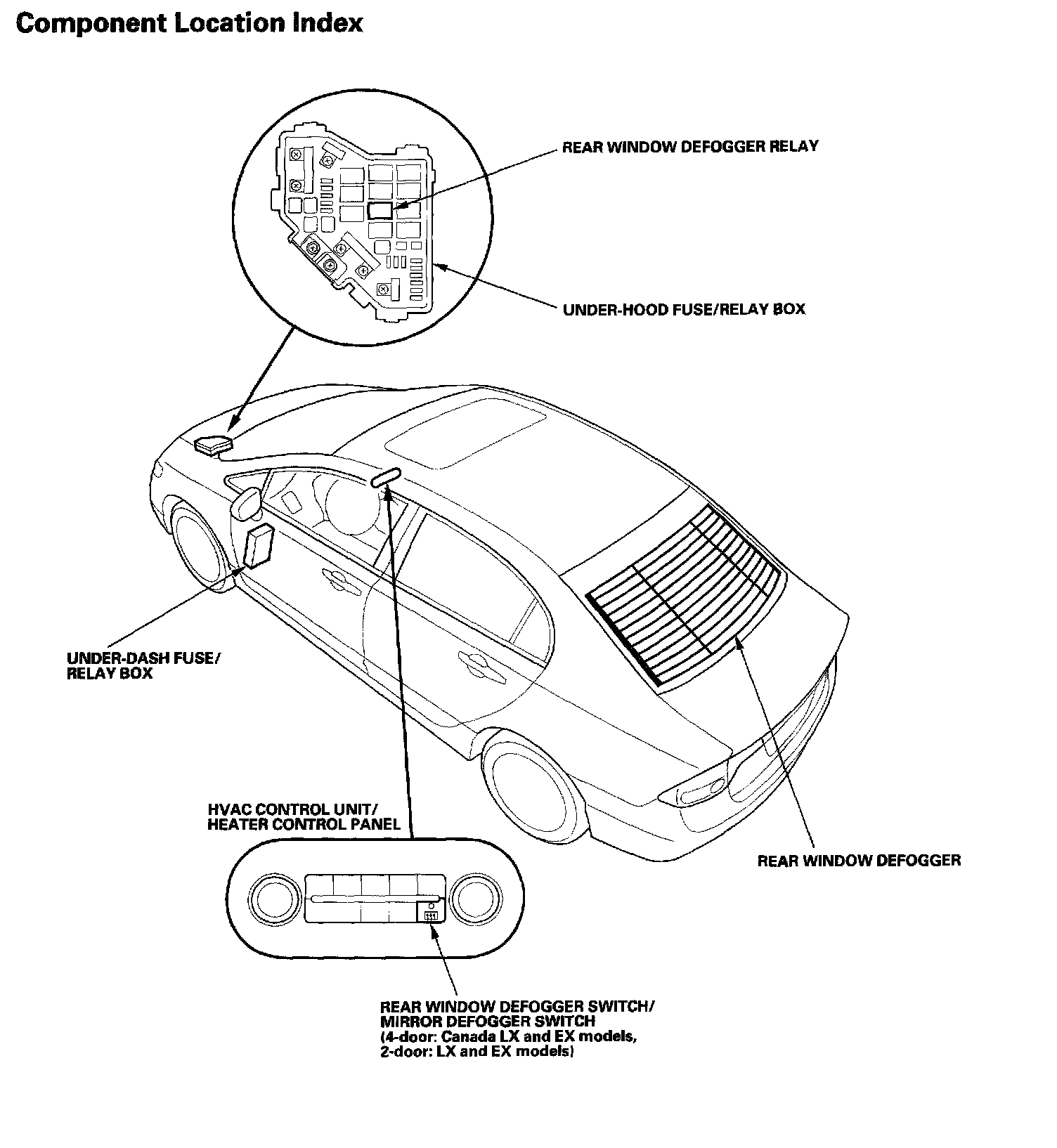

Rear Window Defogger - Componnent Location Index:
