Refrigerant Pressure Sensor / Switch: Locations

Heating/Air Conditioning - Component Location Index:

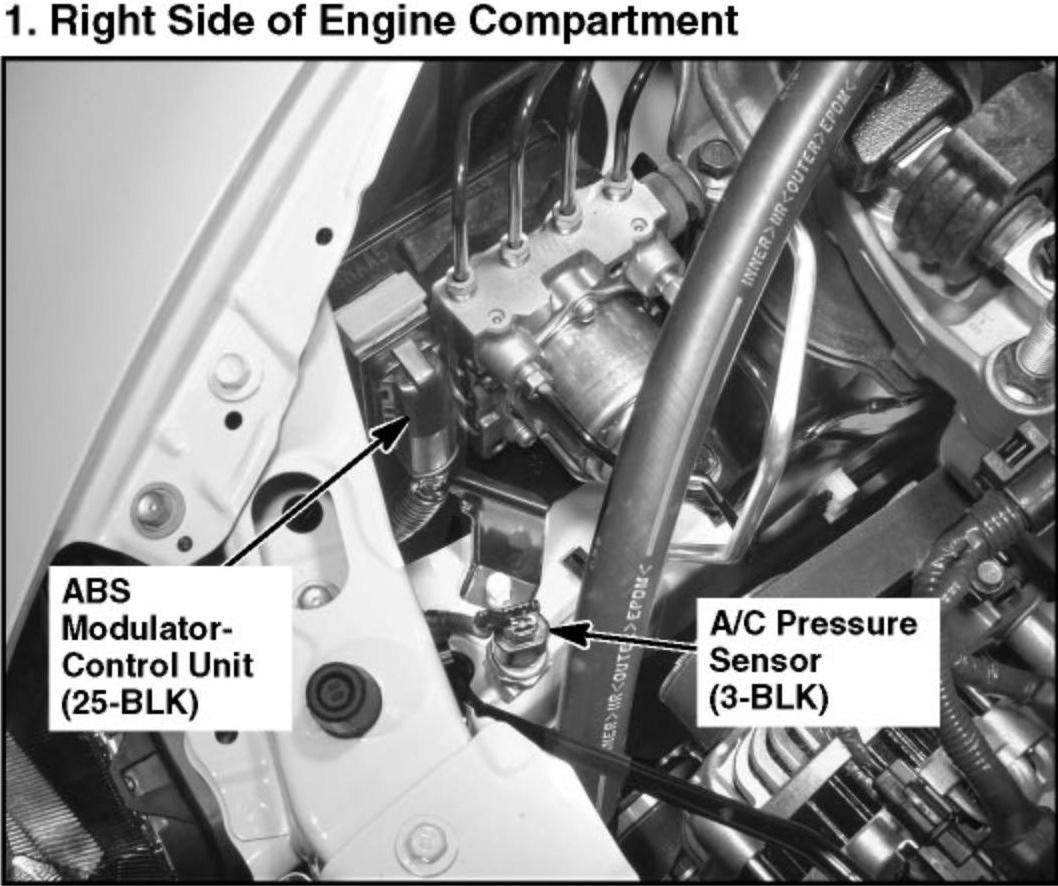

1. Right Side of Engine Compartment:
