Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Diagrams

Power Mirror Switch: Diagrams

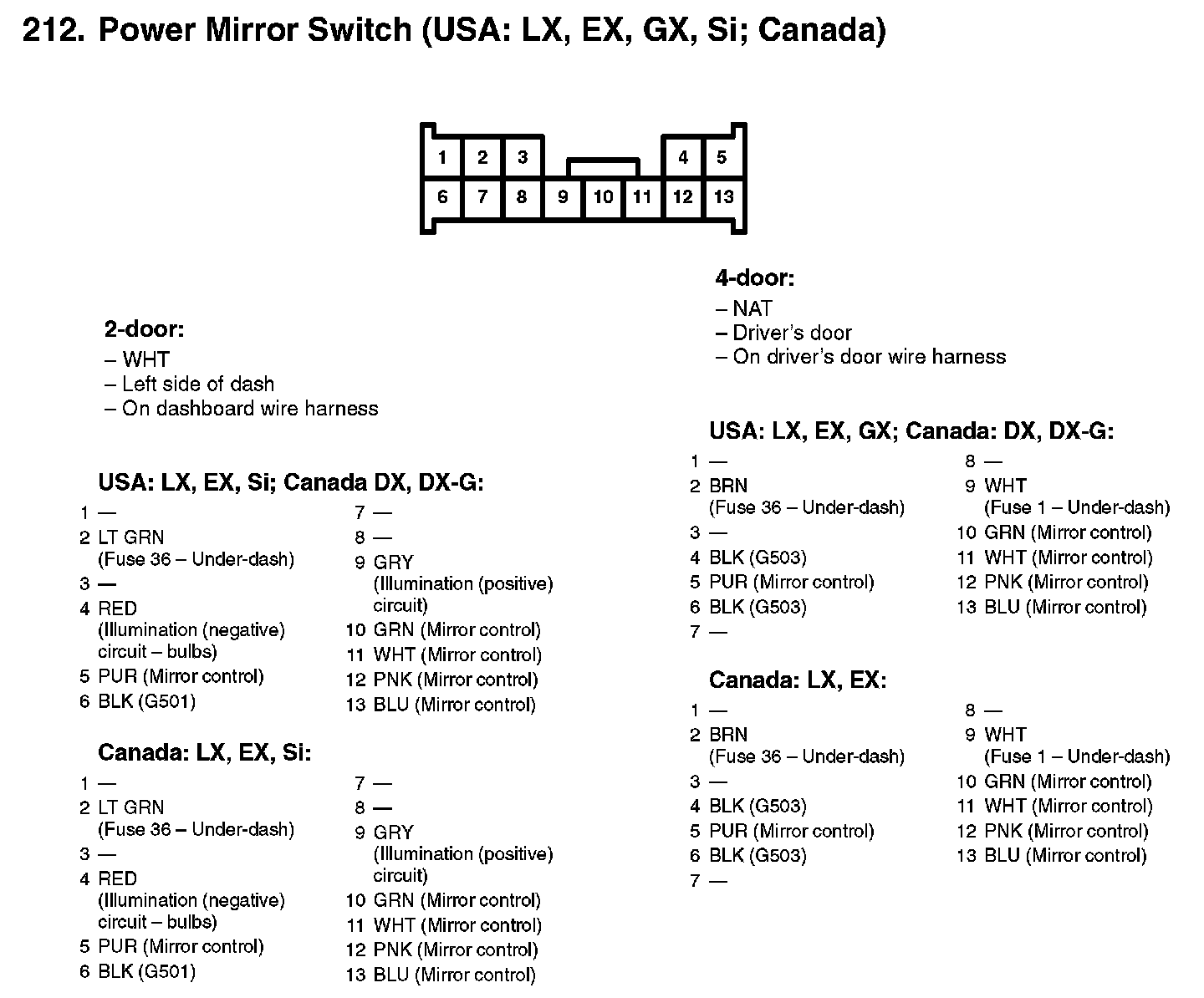

212. Power Mirror Switch (USA: LX, EX, GX, Si; Canada):
