Rear Wire Harness (Left Branch) (2-Door)

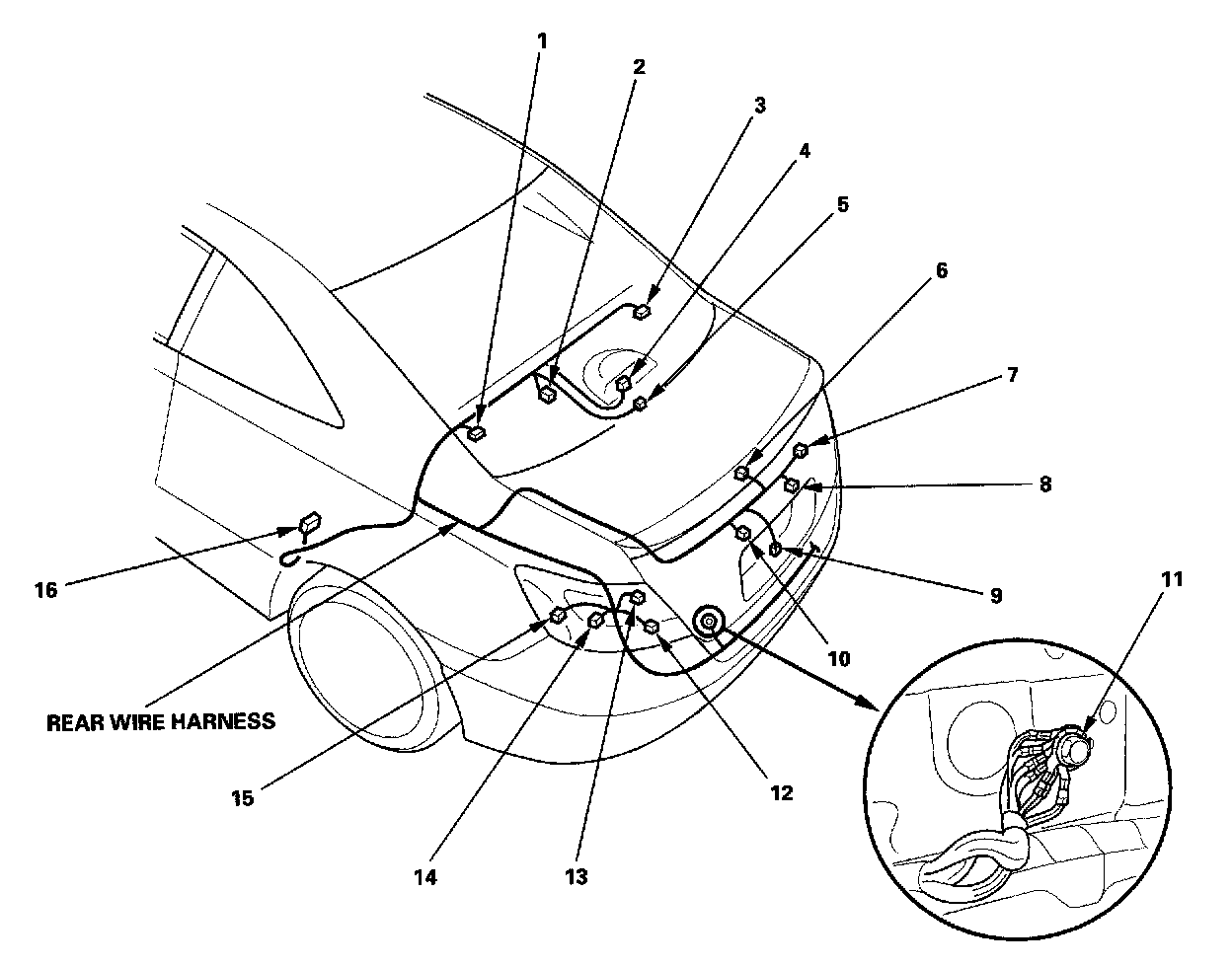

Harness Location View:

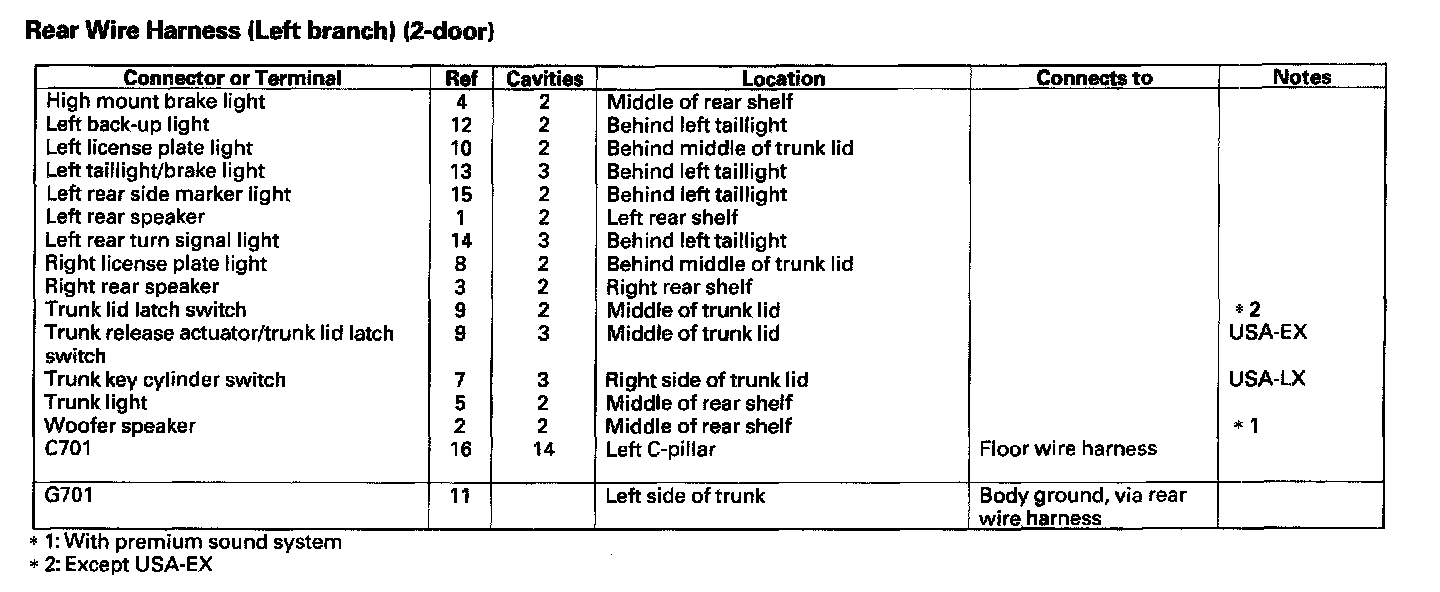

Rear Wire Harness (Left Branch) (2-door):
