Engine Compartment Wire Harness (Left Branch) (DX, DX-G, LX, EX, '07 USA 4-door: Si)
Engine Compartment Wire Harness (Left Branch) (DX, DX-G, LX, EX, '07 USA 4-door: Si)

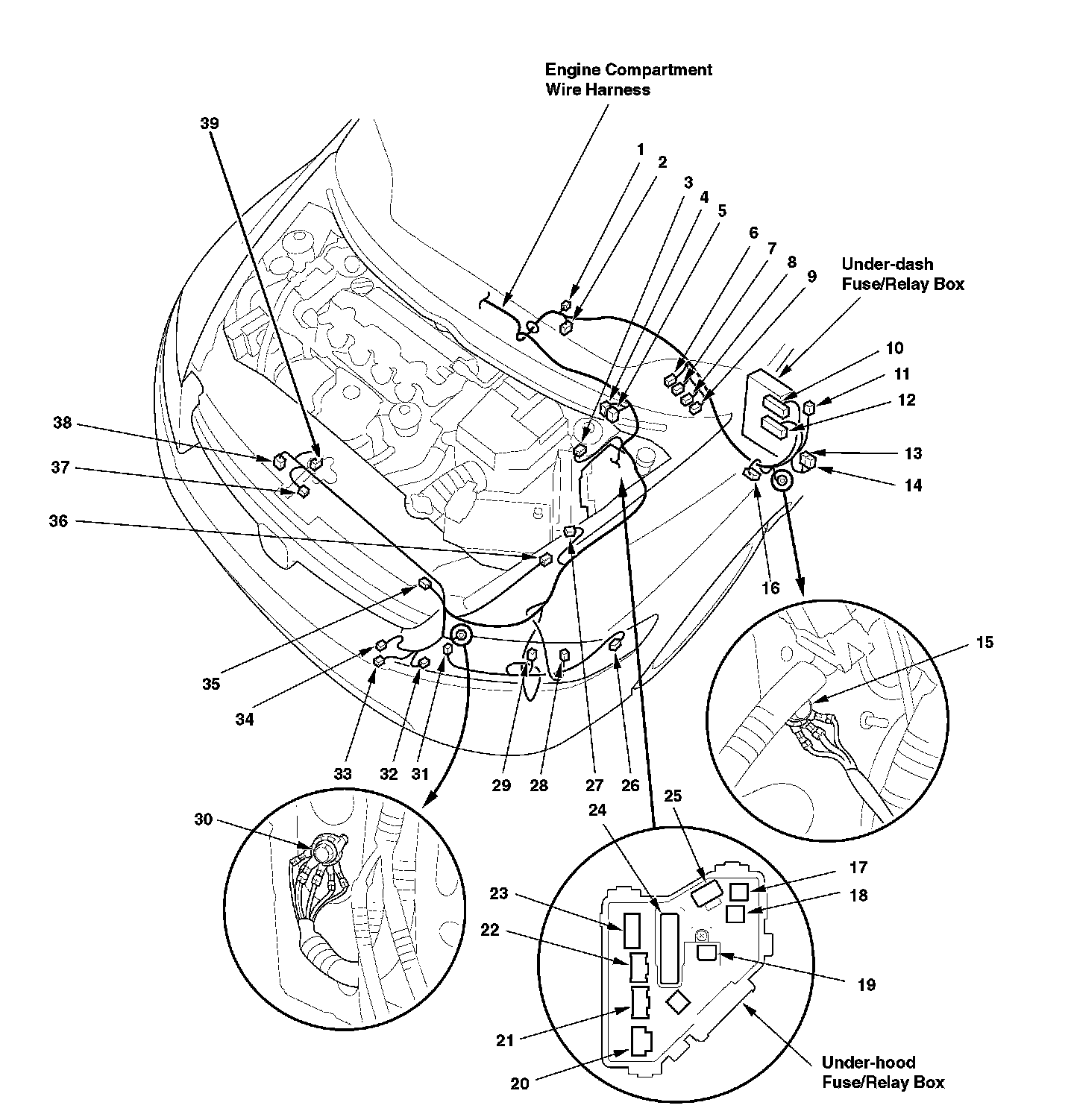

Harness Location View:

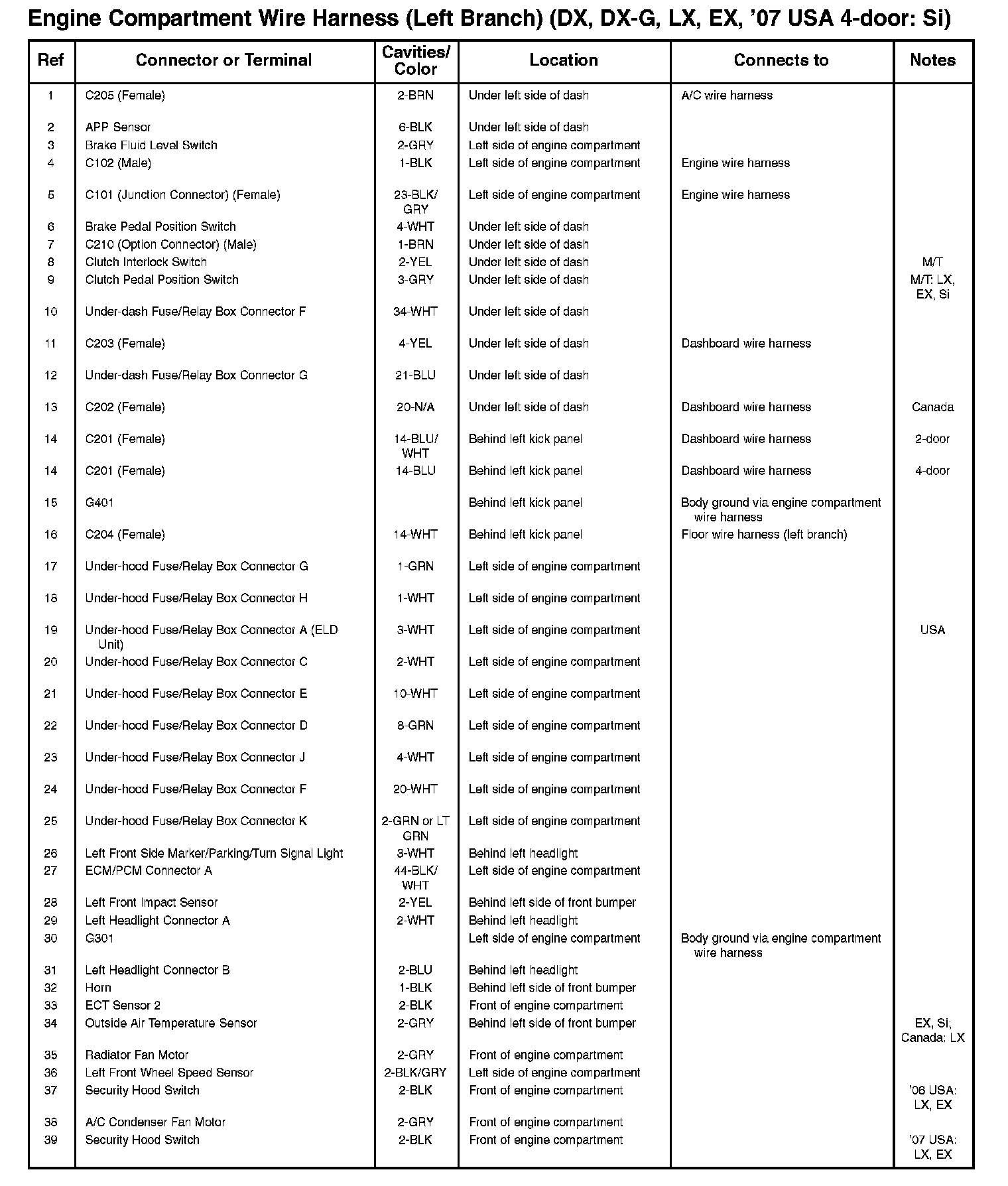

Engine Compartment Wire Harness (Left Branch) (DX, DX-G, LX, EX, '07 USA 4-door: Si):
