Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Locations >> Connector Locations >> Connectors ID By Location on Harness >> A/C Wire Harness

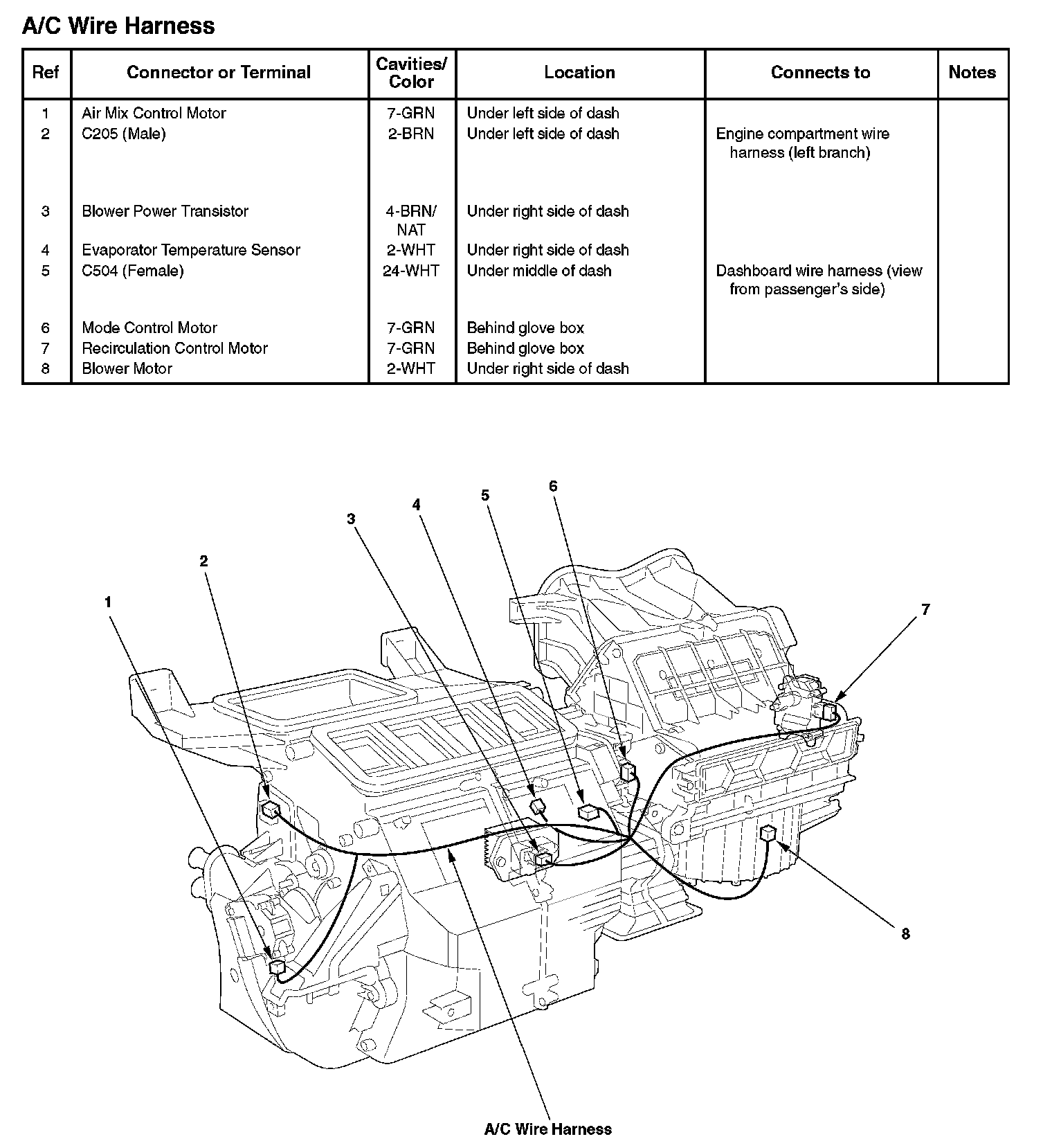

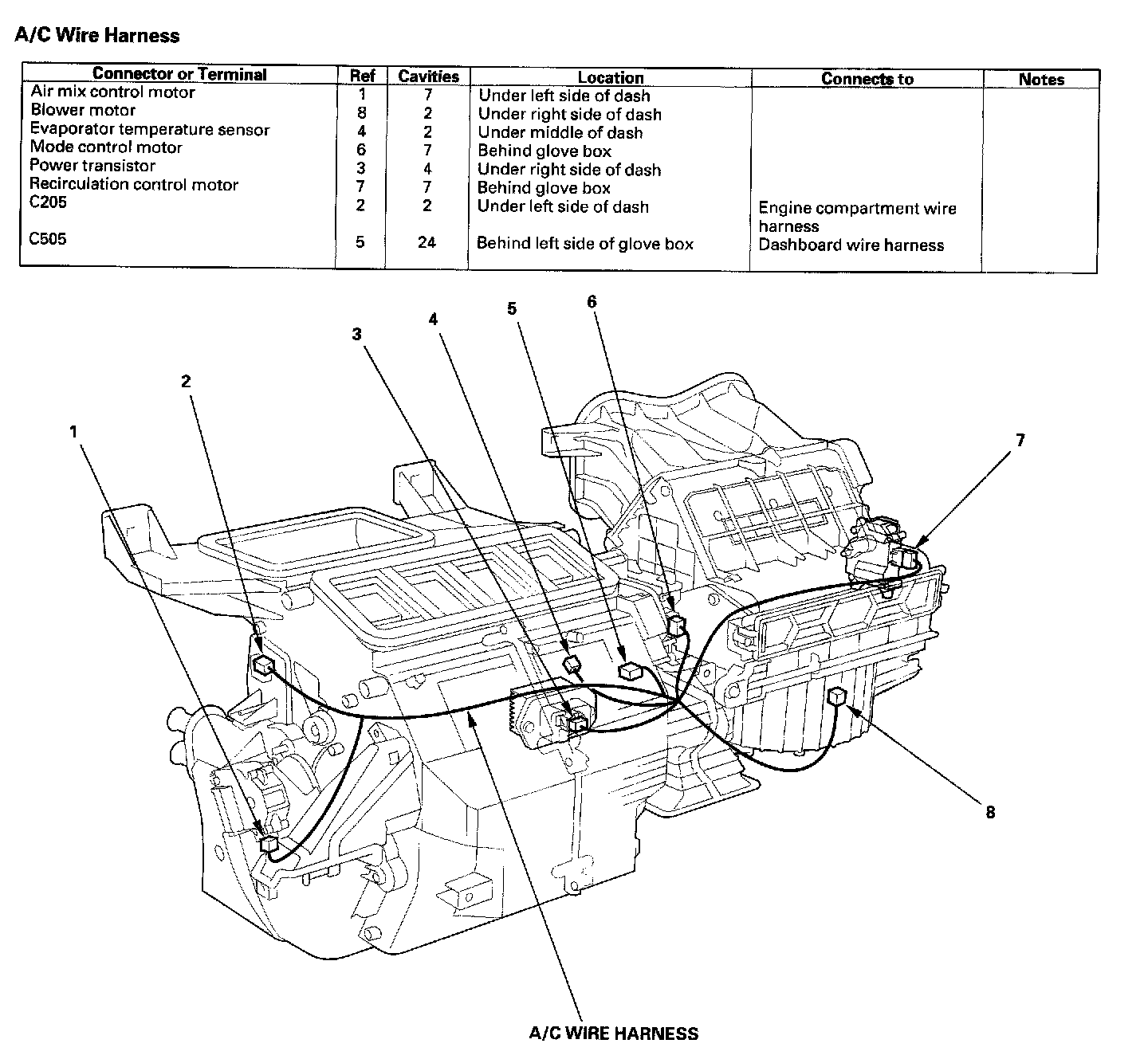

A/C Wire Harness

A/C Wire Harness:



A/C Wire Harness:
