Pulley End Crankshaft Oil Seal Installation - In Car

Pulley End Crankshaft Oil Seal Installation - In Car

Special Tools Required
Oil seal driver 07LAD-PT3010A

1. Remove the crankshaft pulley.
2. Remove the pulley end crankshaft oil seal.
3. Clean, and dry the crankshaft oil seal housing.
4. Apply a light coat of multipurpose grease to the crankshaft and to the lip of the seal.

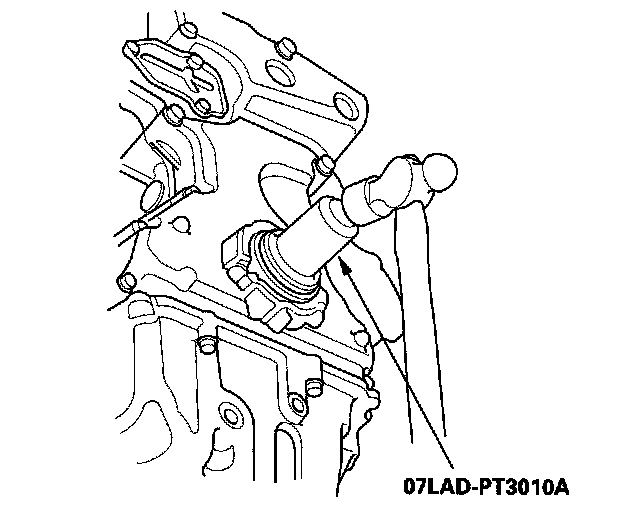

5. Using the seal driver, drive in the crankshaft oil seal until the driver bottoms against the oil pump. When the seal is in place, clean any excess grease off the crankshaft, and check that the oil seal lip is not distorted.
6. Install the crankshaft pulley.
