Camshaft Removal
Camshaft Removal1. Remove the cylinder head.
2. Remove the rocker arm assembly.
3. Remove the camshaft sprocket.
4. Remove the camshaft position (CMP) sensor.

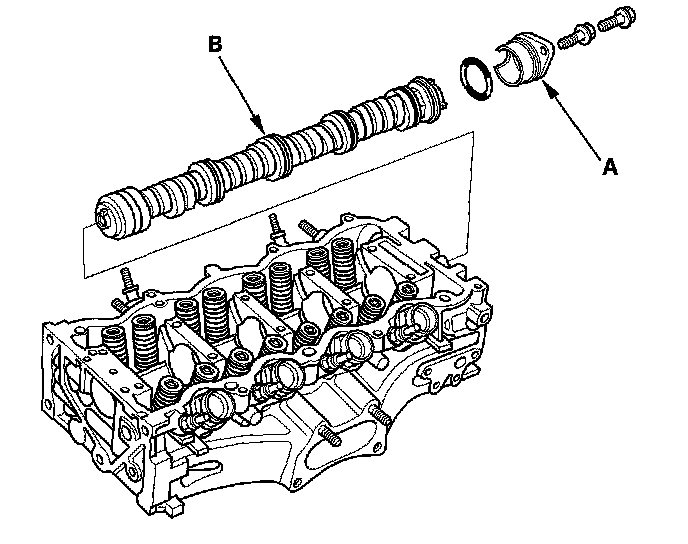

5. Remove the camshaft thrust cover (A), then pull out the camshaft (B).
1. Remove the cylinder head.
2. Remove the rocker arm assembly.
3. Remove the camshaft sprocket.
4. Remove the camshaft position (CMP) sensor.
5. Remove the camshaft thrust cover (A), then pull out the camshaft (B).
