Camshaft Installation

Camshaft Installation

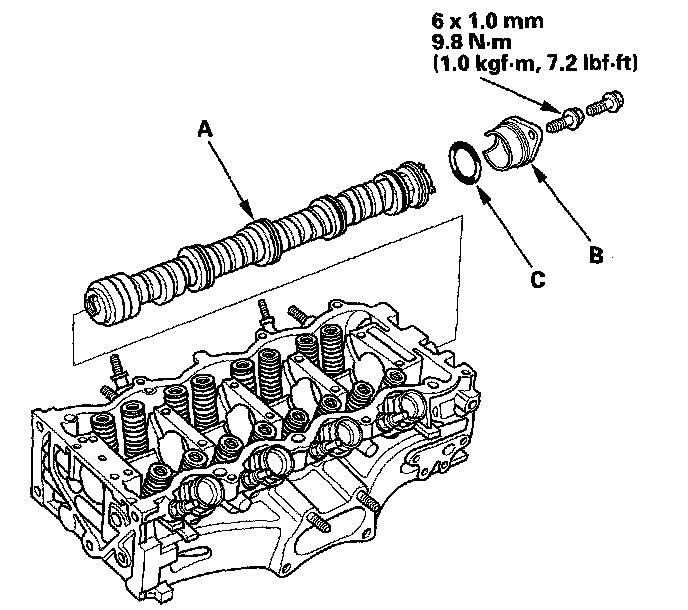

1. Install the camshaft (A) into the cylinder head, then install the camshaft thrust cover (B) with new O-ring (C).
2. Install the camshaft position (CMP) sensor with a new O-ring.
3. Install the camshaft sprocket.
4. Install the rocker arm assembly.
5. Install the cylinder head.
