Home >> Honda >> 2006 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Harness >> Rear Window Defogger Ground Wire (2-Door: DX DX-G, LX, EX)

Rear Window Defogger Ground Wire (2-Door: DX DX-G, LX, EX)

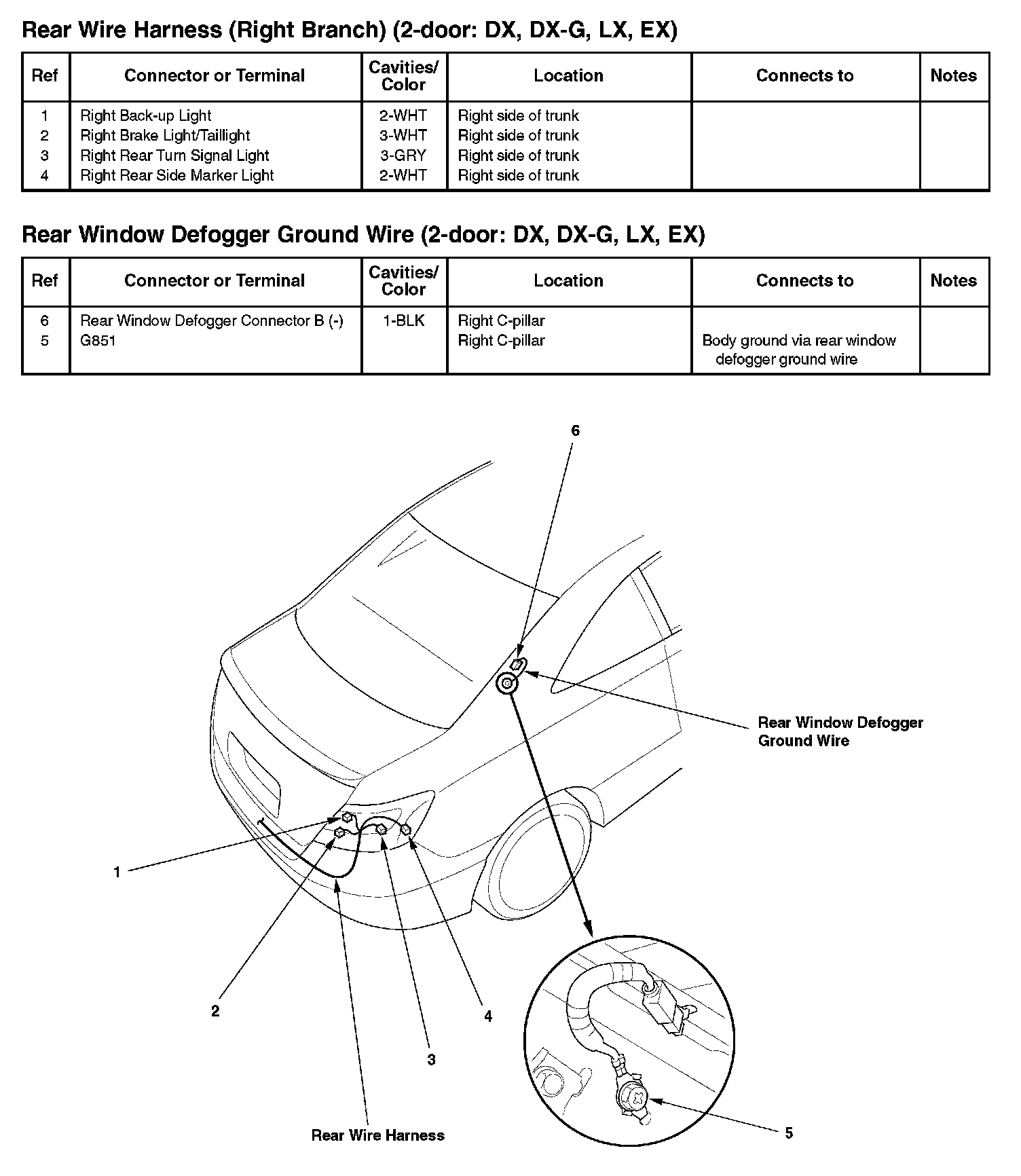

Rear Wire Harness (Right Branch) (2-door: DX, DX-G, LX, EX)/Rear Window Defogger Ground Wire (2-door: DX, DX-G, LX, EX):
