Circuit Diagrams

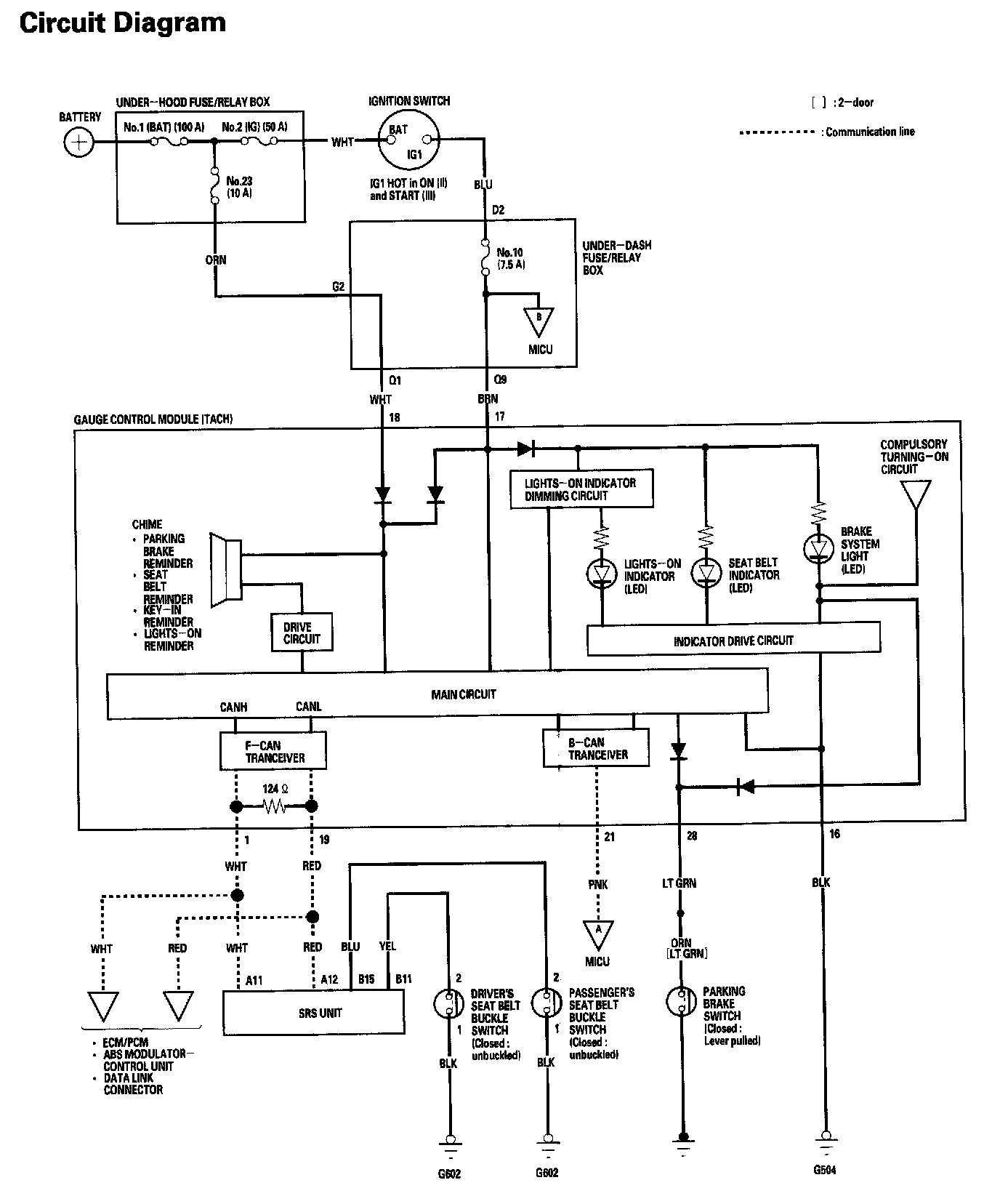

Reminder Systems - Circuit Diagram Part 1:

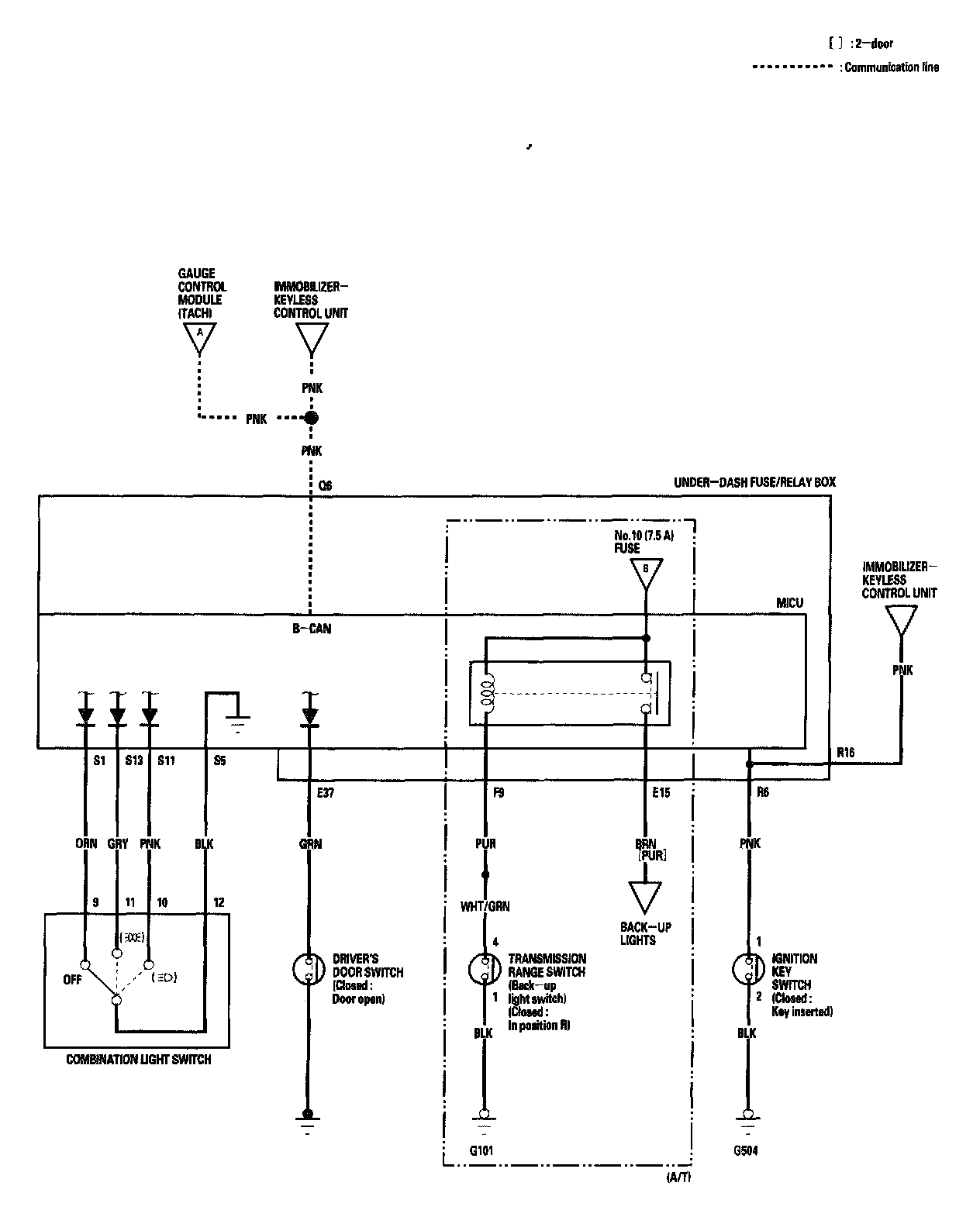

Reminder Systems - Circuit Diagram Part 2:
