Circuit Diagrams

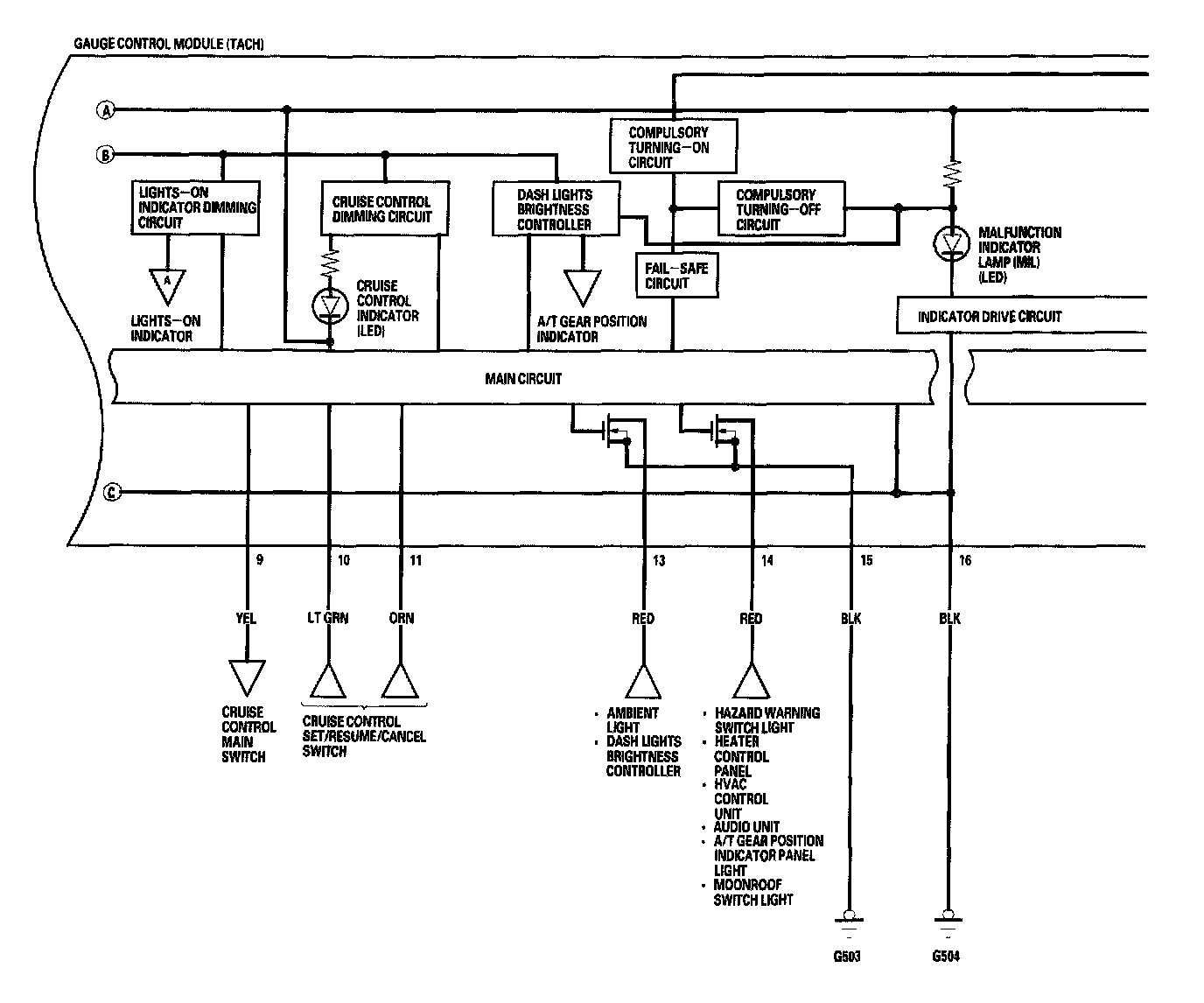

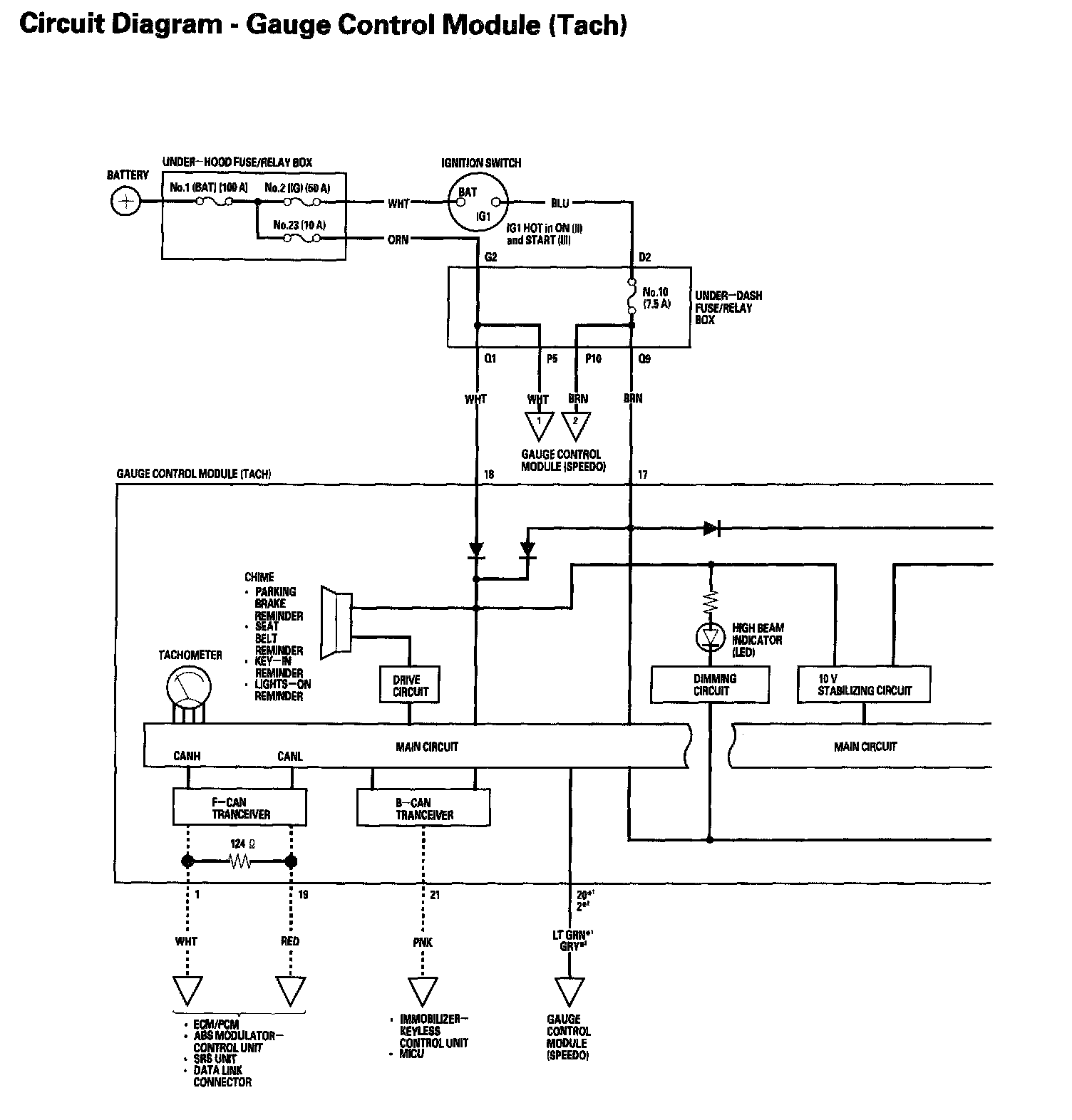

Gauges - Circuit Diagram - Gauge Control Module (Tach) Part 1:

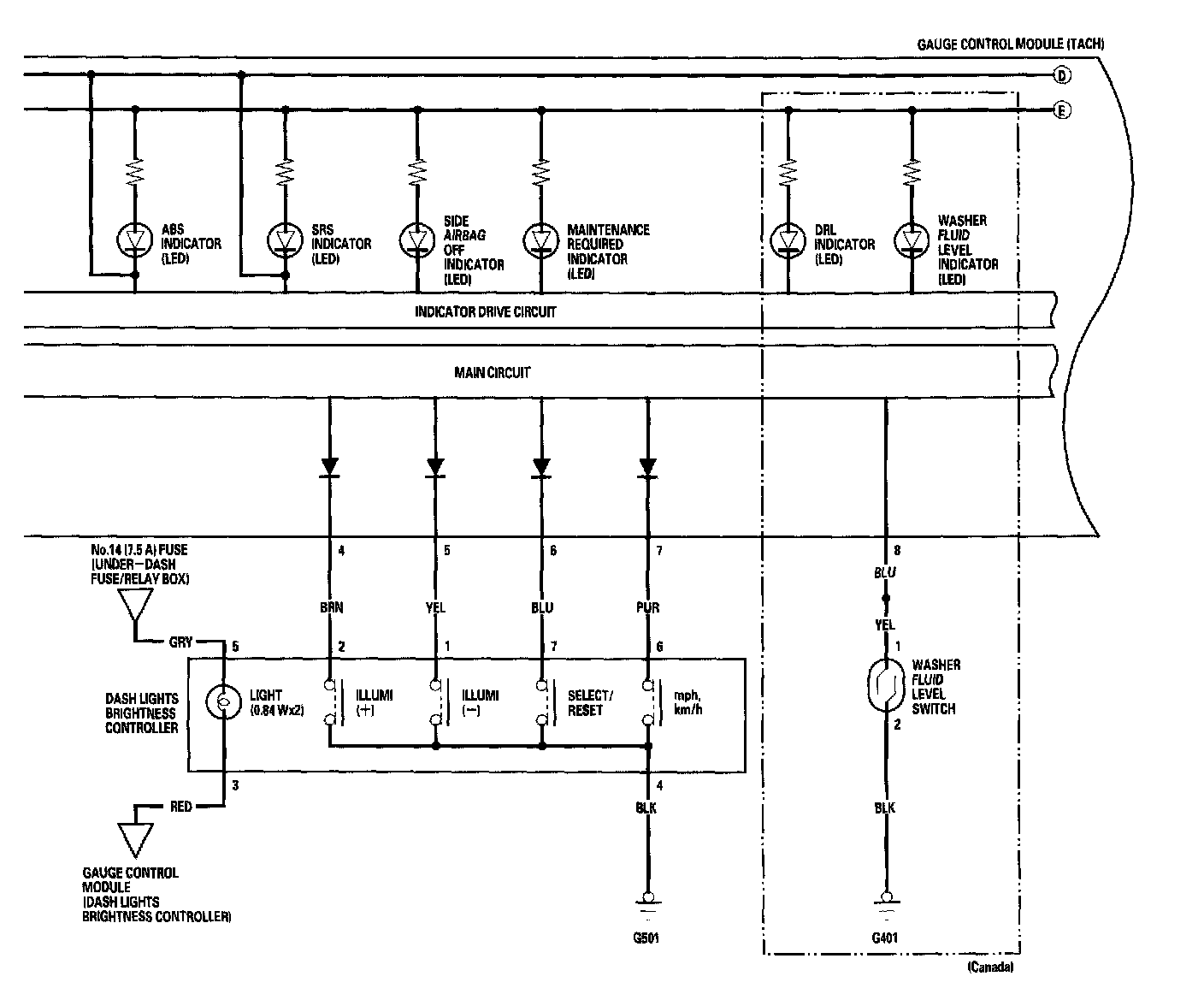

Gauges - Circuit Diagram - Gauge Control Module (Tach) Part 2:

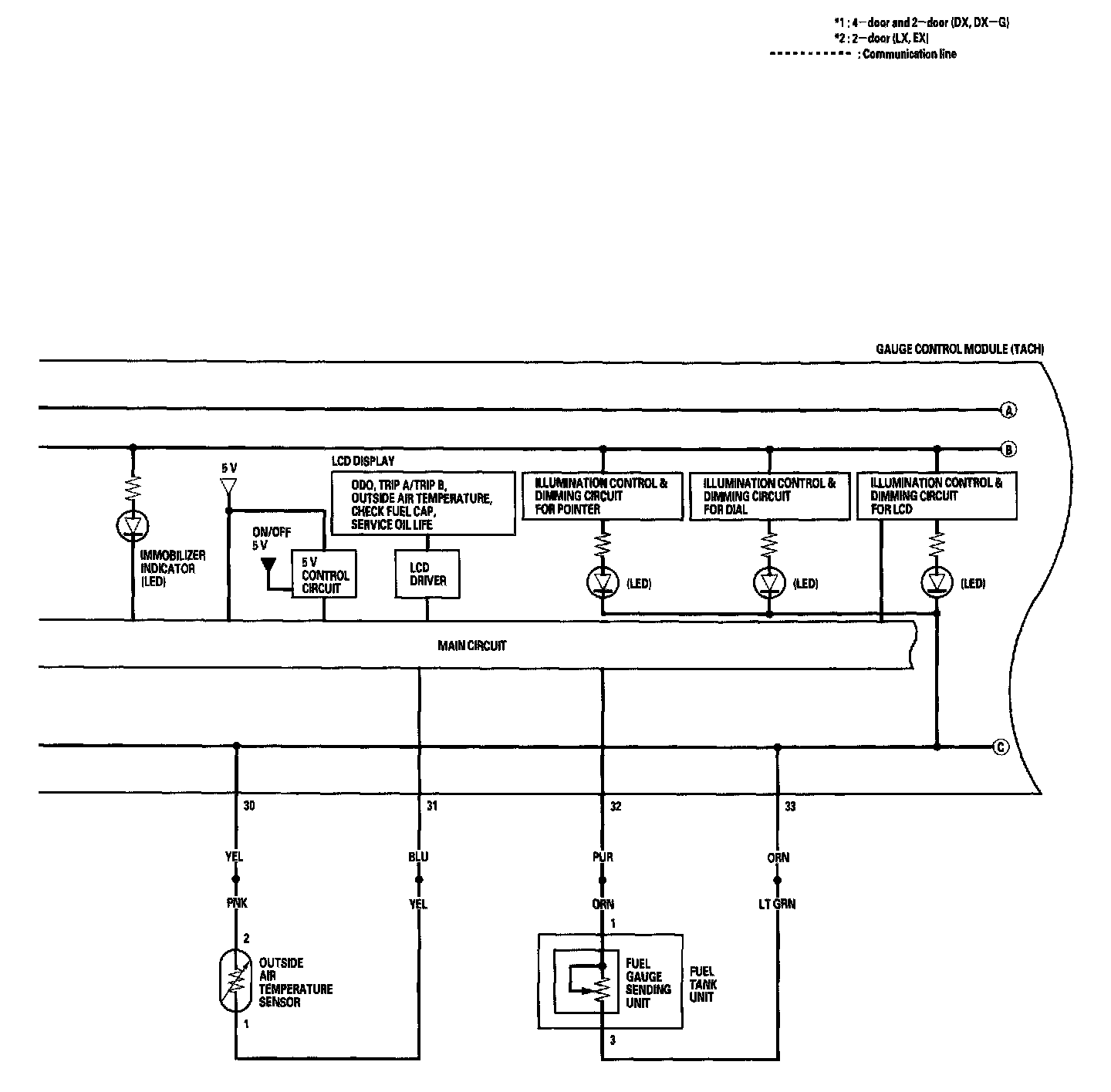

Gauges - Circuit Diagram - Gauge Control Module (Tach) Part 3:

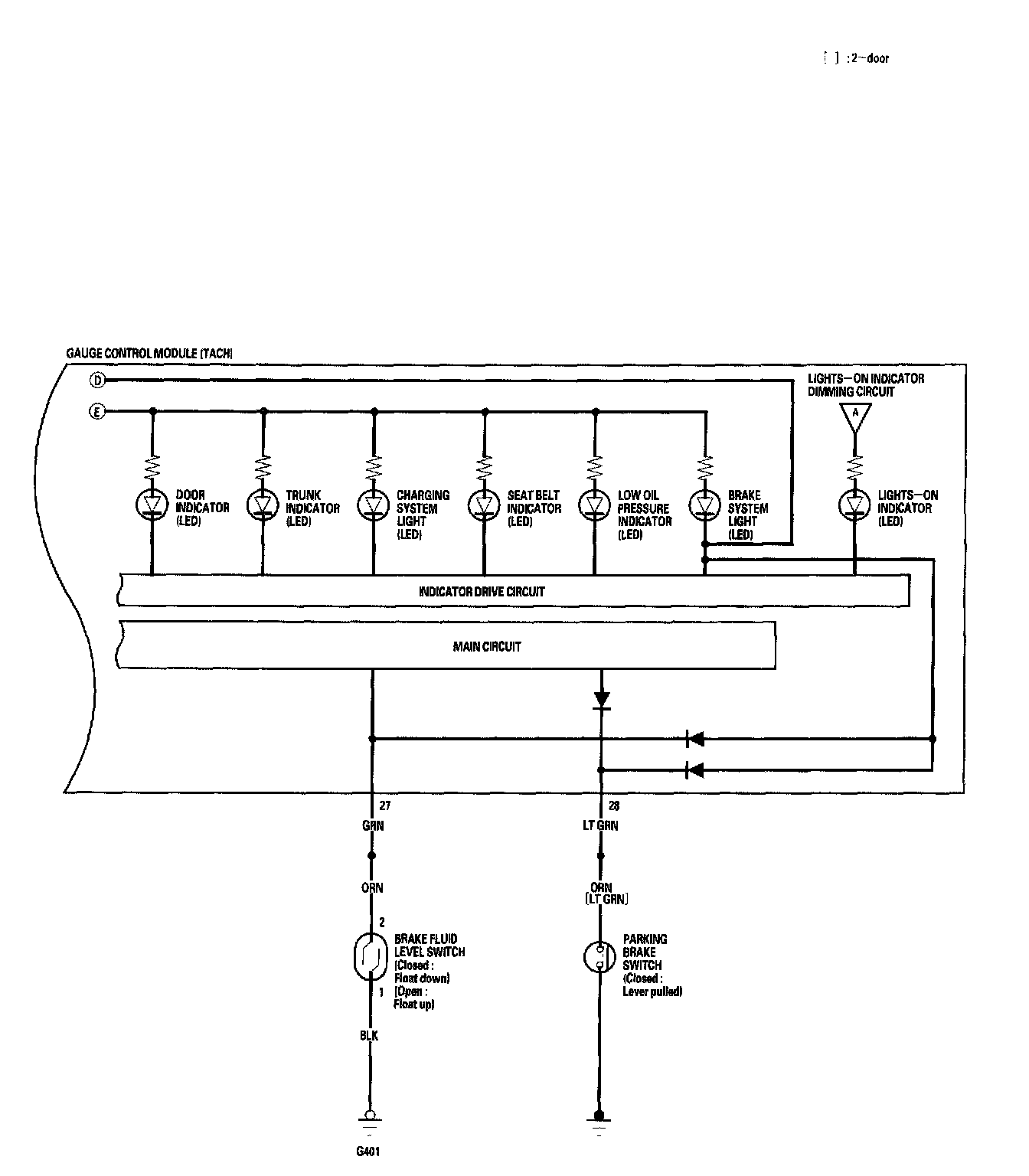

Gauges - Circuit Diagram - Gauge Control Module (Tach) Part 4:



Gauges - Circuit Diagram - Gauge Control Module (Tach) Part 5:

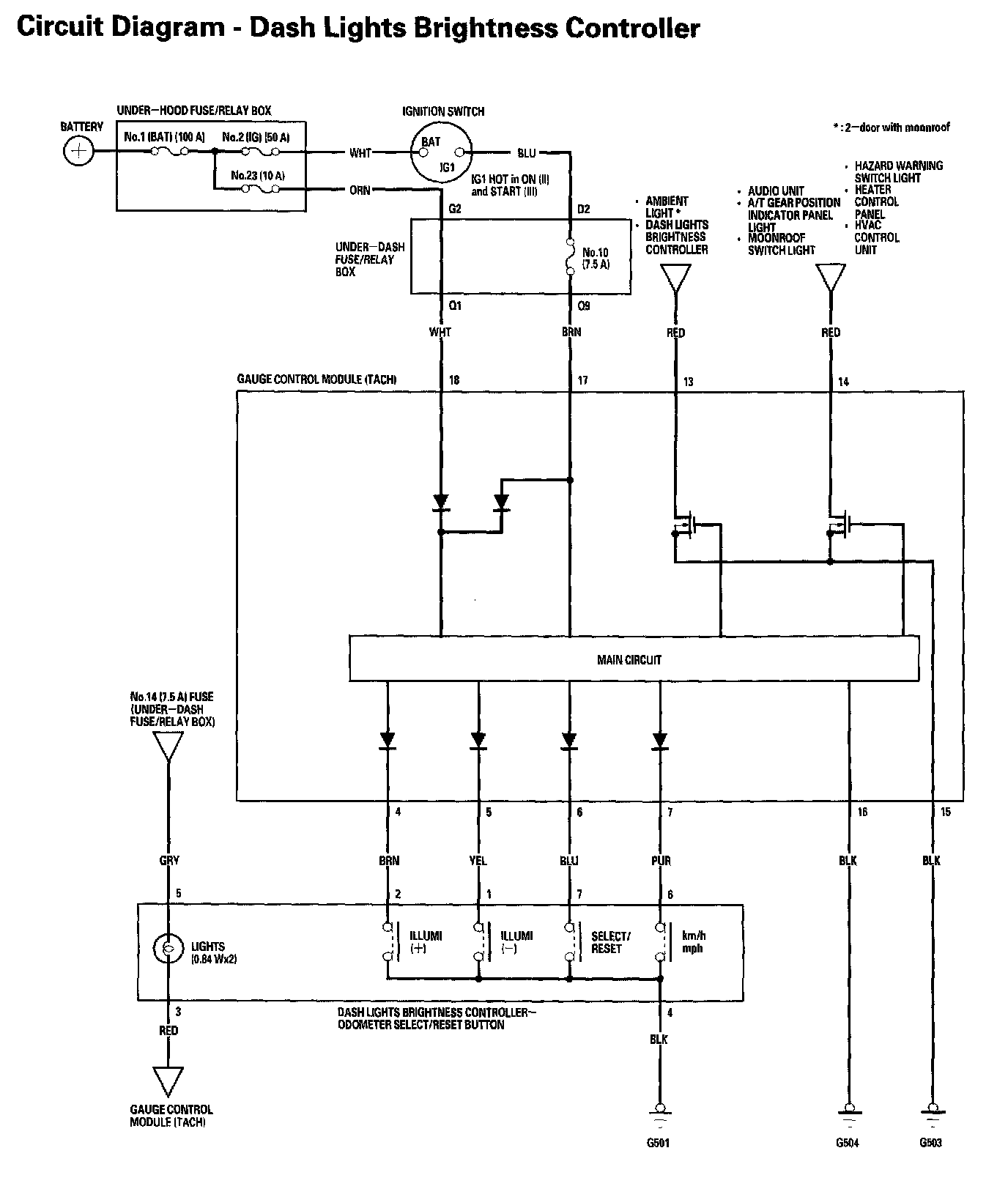

Gauges - Circuit Diagram - Dash Lights Brightness Controller:



Gauges - Circuit Diagram - Gauge Control Module (Speedo) Part 1:



Gauges - Circuit Diagram - Gauge Control Module (Speedo) Part 2:
