Diagram Set 73 (Reminder Systems and Low Oil Pressure Indicator)
Diagram Set 73 (Reminder Systems and Low Oil Pressure Indicator)

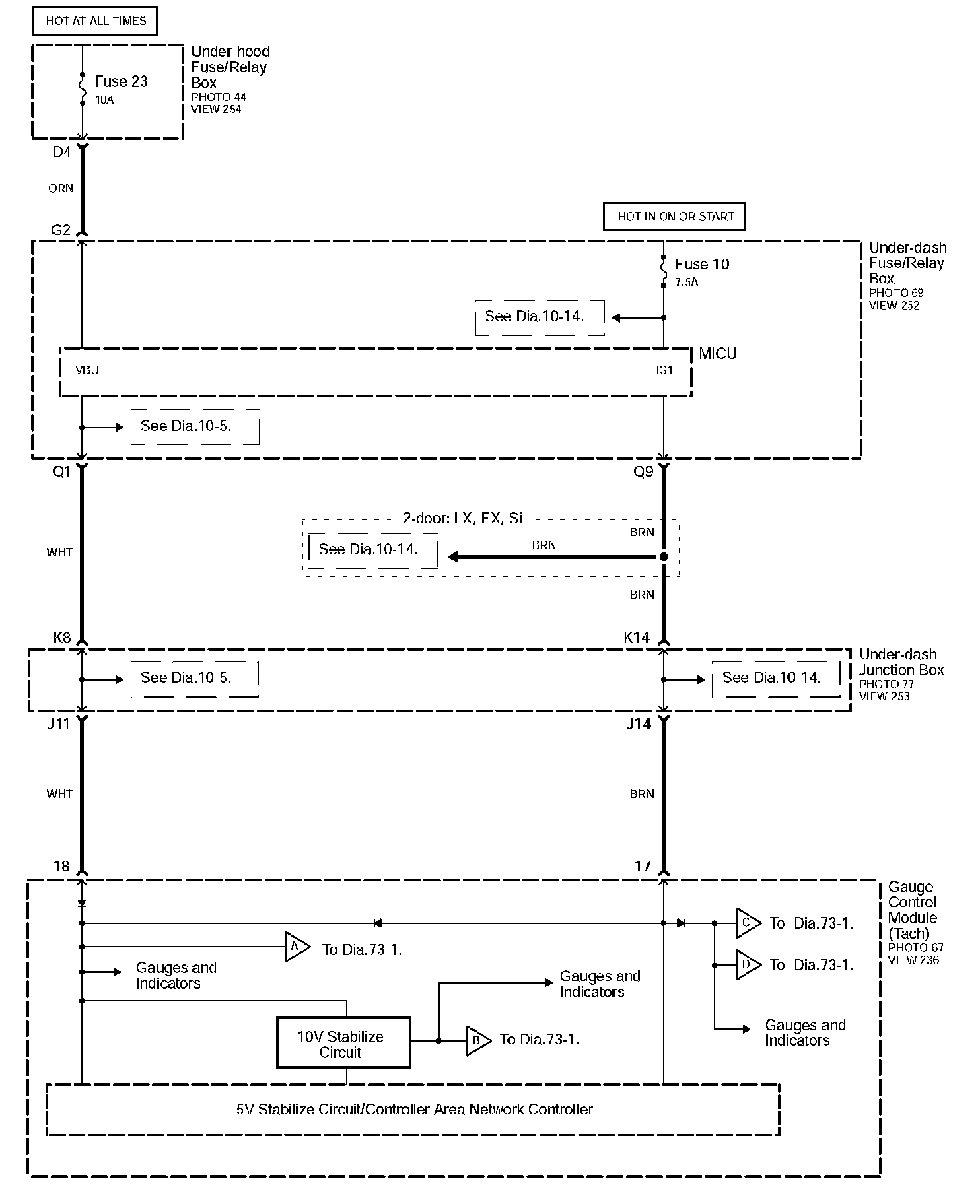

Diagram 73-0:

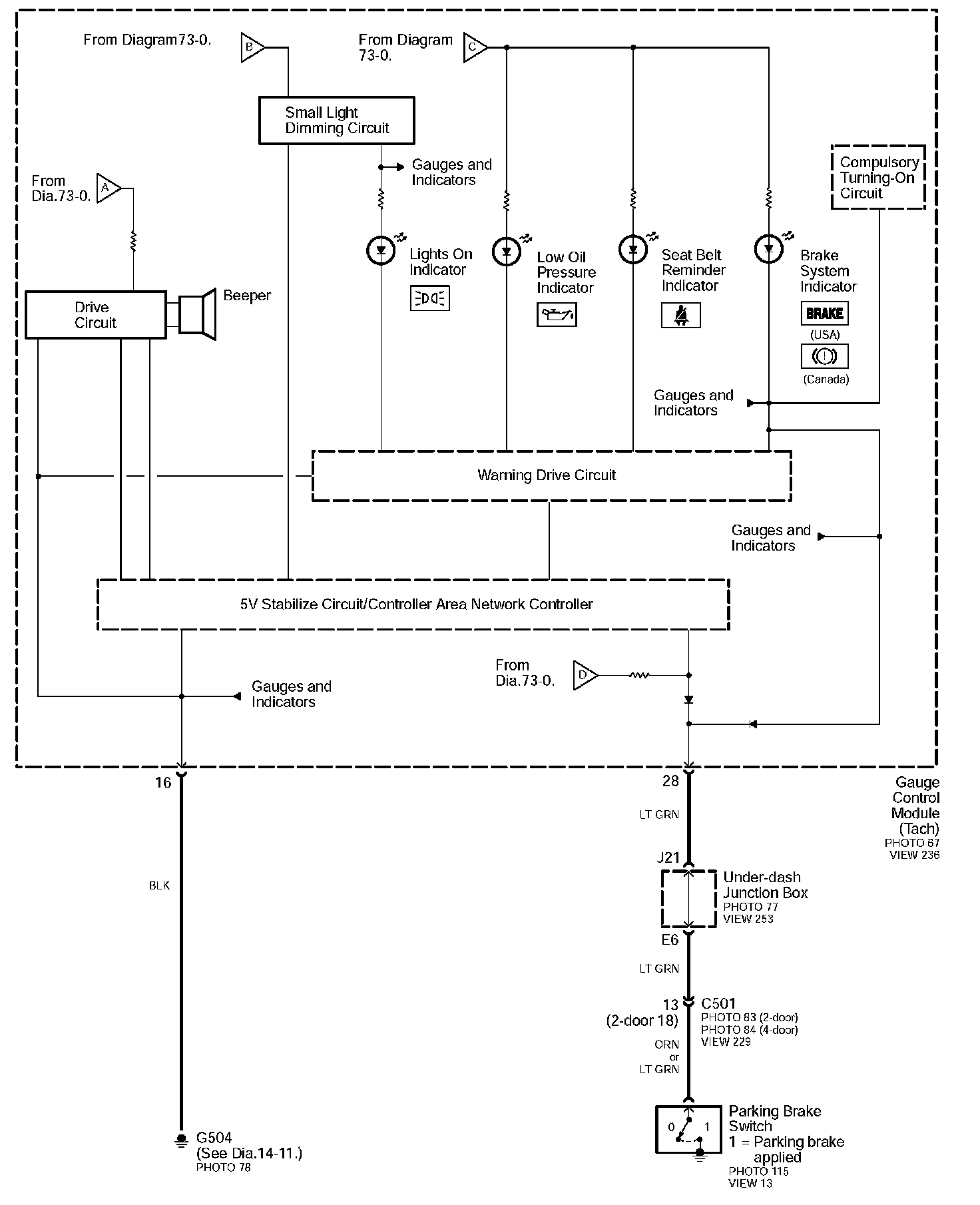

Diagram 73-1:

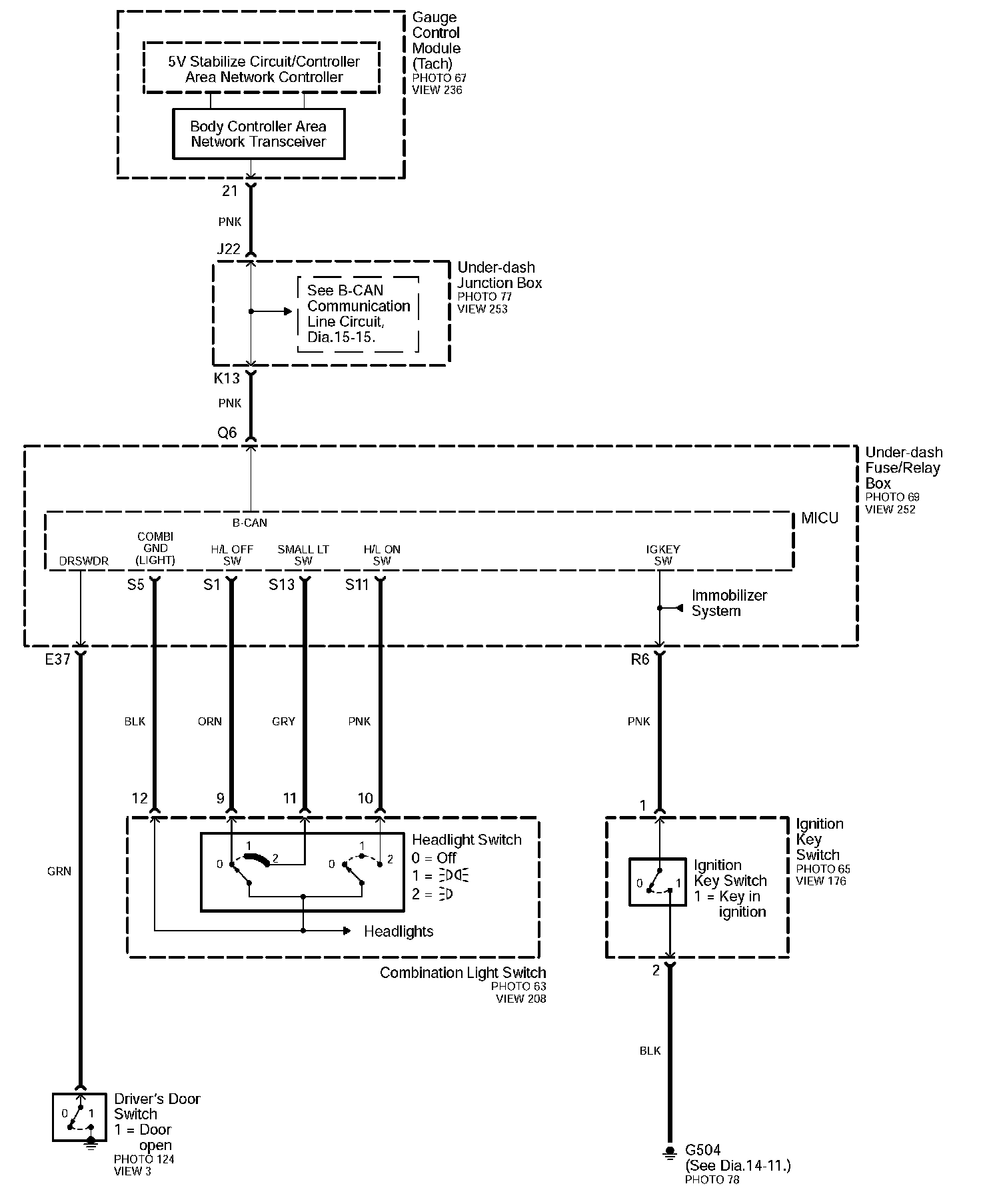

Diagram 73-2:

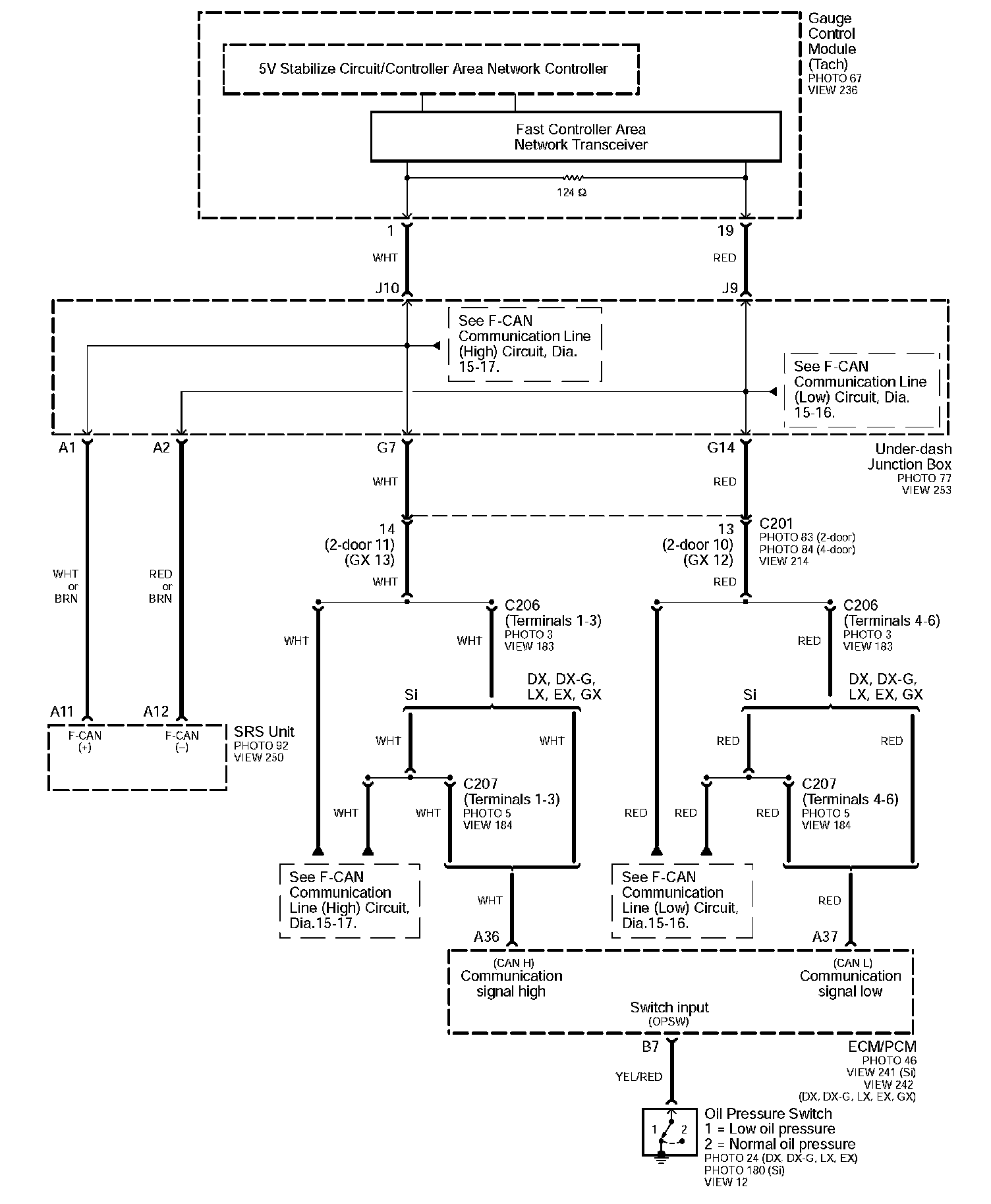

Diagram 73-3:
Diagram 73-4:
